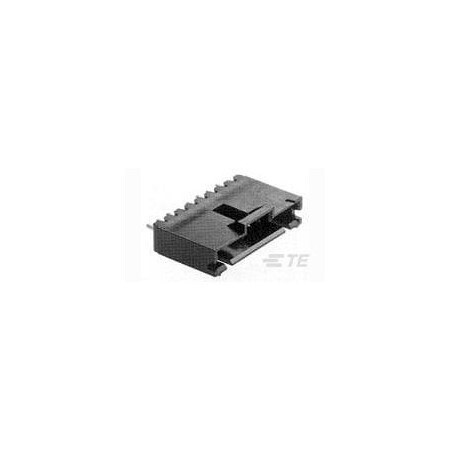

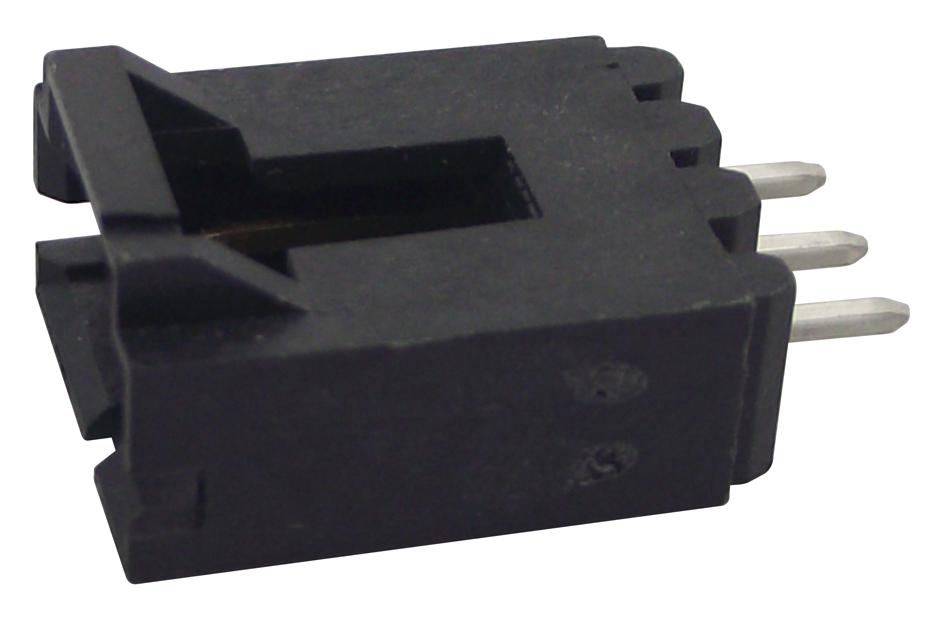

Amp Te Connectivity Wire-To-Board Connector, Ampmodu Mte Series, Through Hole, Header, 3, 2.54 mm, Gold Plated Contacts Rohs Compliant: Yes - 5-104363-2

WIRE-BOARD CONNECTOR HEADER 3 POSITION, 2.54MM; Connector Systems:Wire-to-Board; Pitch Spacing:2.54mm; No. of Rows:1Rows; No. of Contacts:3Contacts; Contact Termination Type:Through Hole Straight; Product Range:AMPMODU MTE Series RoHS Compliant: Yes

Header; Number of Positions = 3; Number of Rows = Single; Post Size = 0.64 [.025] mm [in]; Terminate To Printed Circuit Board;

TE CONNECTIVITY / AMP 5-104363-2 WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM

AMPMODU 3 Position Single Row Vertical Polarized/Latching IDC Header ***** For more information refer to the specification sheet located in the 'Downloads' section below the image *****

EU RoHS: Compliant ECCN (US): EAR99 Part Status: Active HTS: 8536.69.40.40 Type: Shrouded Header (4 Sides) Gender: HDR Number of Contacts: 3 Number of Rows: 1 Termination Method: Solder Terminal Pitch (mm): 2.54 Body Orientation: Straight Polarization Type: Center Key/Dual Slot Maximum Current Rating (A): 3/Contact Insulation Resistance (MOhm): 5000 Maximum Contact Resistance (mOhm): 15 Minimum Operating Temperature (°C): -65 Maximum Operating Temperature (°C): 105 Mating Cycle (Cycles): 200 Packaging: Tube Product Length (mm): 10.16 Product Depth (mm): 6.65 Product Height (mm): 13.59 Tail Length (mm): 3.3 Mounting: Through Hole
