3M MNG18-4FLK

mpnMNG18-4FLK
brandname: 3-M
manufacturername: 3-M

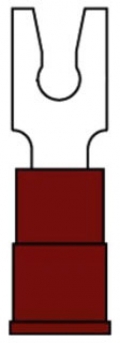

3M SCOTCHLOK LOCKING FORK, NYLON INSULATED W/INSULATION GRIP MNG18-4FLK, STUD SIZE 4

3M SCOTCHLOK LOCKING FORK, NYLON INSULATED W/INSULATION GRIP MNG18-4FLK, STUD SIZE 4

zoom

Brand: 3M
PartNumber: MNG18-4FLK
Model: MNG18-4FLK
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: 3M
Label: 3M

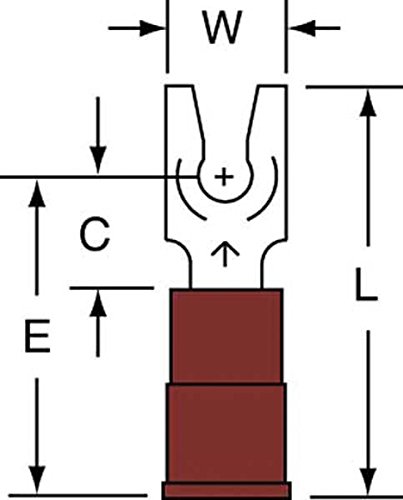

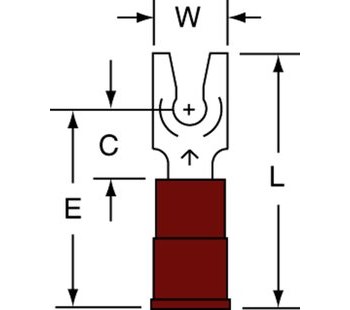

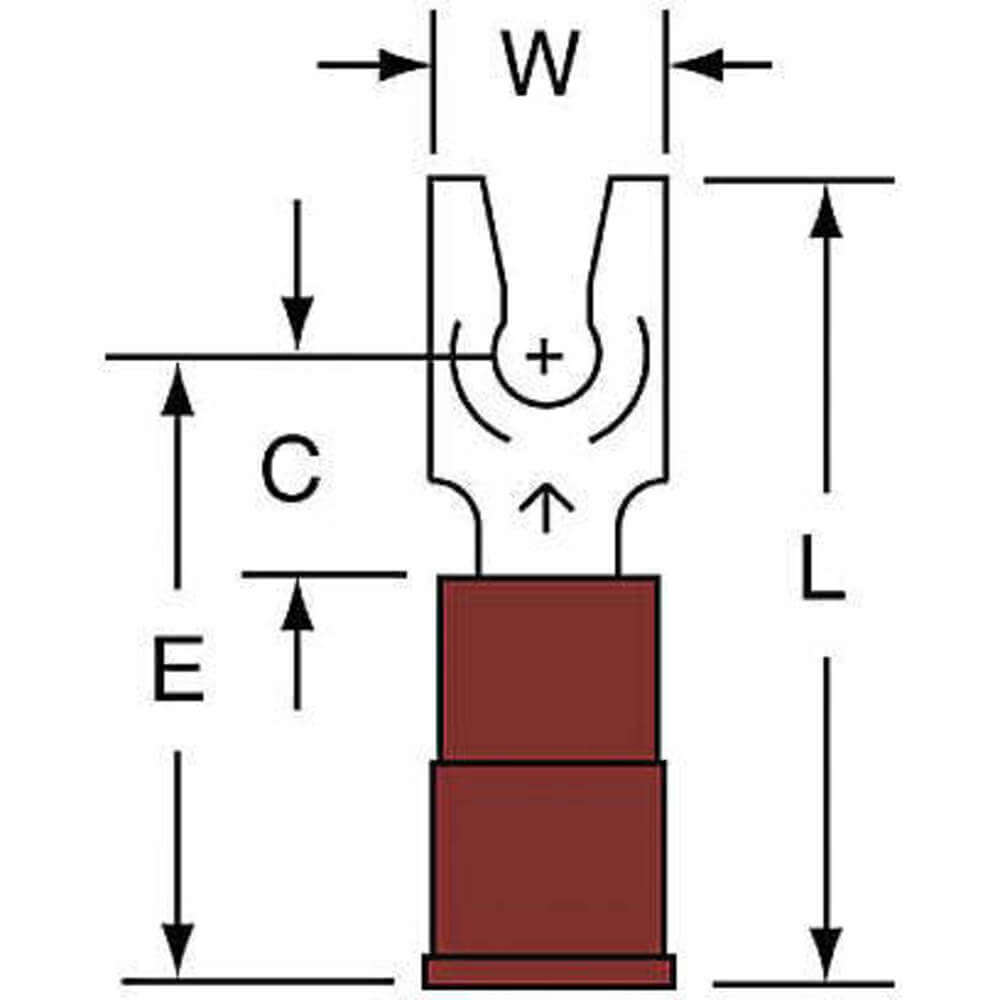

Attributes

Key	Value
3M Number	MNG18-4FLK
Barrel Length	44 in, 0.25 in
Barrel Length Type	Butted
Barrel Style	Insulation Grip
Brand	3M
Category	Electrical Insulating T.
Clearance	0.25 in
Color	Red
Connection Material	Copper
Connection Type	Crimp
Contact Material	Copper
Country of Origin	USA
Country of Origin (subj.	United States
Fastening Mechanism	Locking
For Wire Size	18 AWG, 20 AWG, 22 AWG
Fork Width	0.25 in
Inside Diameter	0.07 in
Insulation Color	Red
Insulation Length	0.69 in
Insulation Material	Nylon
Insulation Type	Nylon
Item	Fork Terminal
Manufacturer	3M
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.145 in
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600 V
Maximum Wire Size	18 AWG
Minimum Conductor Leg D.	22 AWG
Minimum Wire Size	22 AWG
Overall Length	0.87 in
Overall Width	0.25 in
Package Quantity	1000 per case
RoHS Compliant	Yes
Seam	Brazed
Seam Style	Butted
Size	4
Standards	CSA Certified, UL Listed
Stud Size	#4
Terminal Connection	Crimp
Terminal Shape	Locking Fork
Terminal Type	Locking
Termination Style	Crimp
Tongue Thickness	0.03 in
Tongue Width	0.00 - 0.25 inches
Tongue Width - Wire Con.	0.25 in
Trade Name	Scotchlok
Type	Fork
UNSPSC	31201502
UPC	054007013556
Wire Range	22 to 18 AWG
Wire Size Range	22 AWG - 18 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Digi-Key	MNG18-4FLK-ND	0.42992	1000	1000		3M		0.42992 @ 1000
	turtle.com	MMM MNG18-4FLK	0.63	1	1000		3M		0.63 @ 1000
	Platt.com	0318745	0.76	1	1000		3M		0.76 @ 1000
	rshughes.com	054007-01355	510.0	1000	1000		3M		510.0 @ 1000
	gordonelectricsupply.com	MNG18-4FLK	530.0	1	1000	455	3-M		530.0 @ 1000
	Zoro	G5509612	572.0	1	1000	26	3M	2.4	572.0 @ 1000
	Dale-Electric	MNG18-4FLK	582.96	1	1000		3M		582.96 @ 1000
	sustainablesupply.com	C1178306	670.89	1	1000		3M	2.4	670.89 @ 1000
	Graybar	93152984	800.5312	1	1000		3M		800.5312 @ 1000
	Raptor Supplies	AB9KZC	1089.2039535	1	1000		3M		1089.2039535 @ 1000
