mpn:
brand:
manufacturer:
MPN:
Description:

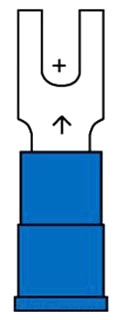

Block Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486-A, CSA C22.2 Approval; 221 Deg F Temperature Rating; 1000 Per Case Standard Package; #4 Stud Size; Vinyl Insulated Insulation Type; SCOTCHLOK[T] Brand
Weight:
2.17
Weight:
2.17 LB
Preferred Price:
507.99
Min Offer Price:
216.47
Price:
507.99
Min Simple Price:
287.0
Absolute Min Price:
407.54
Min Price:
407.54
Dimensions:
[6.0, 5.0, 4.0]
qty:
294
simpleSku:
TU0MzU:::MVU14-4FB/SK
sku:
TU0MzU::XM:MVU14-4FB/SK@y0
condition:
11
seller:
gordonelectricsupply.com
amzMan:
3m
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| 3M Number | MVU14-4FB/SK |
| Barrel Length Type, Seam | Butted |
| Barrel Length, Clearance, Fork Width, Overall Width, Tongue Width, Tongue Width - Wire Connector | 0.25 in |
| Base Product Number | MVU14 |
| Brand, Manufacturer, Mfr | 3M |
| Category | Electrical Insulating Tape, Connectors, Interconnects |
| Color, Insulation Color | Blue |
| Connection Material | Copper |
| Connection Type, Terminal Connection, Termination | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Country of Origin | US - United States, USA |
| ECCN | EAR99 |
| Fastening Mechanism | Locking |
| Features | Butted Seam |
| Inside Diameter | 0.09 in |
| Insulation | Insulated |
| Insulation Dia | 0.17 Inch |
| Insulation Diameter | 0.170" (4.32mm) |
| Insulation Length | 0.7 in |
| Insulation Material, Insulation Type, Material, Material - Insulation | Vinyl |
| Item | Fork Terminal |

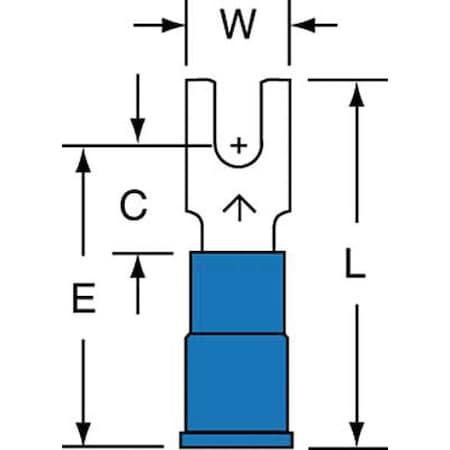

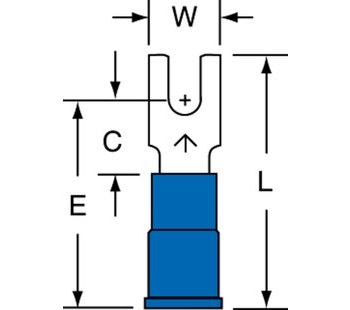

| Length - Overall | 0.850" (21.59mm) |
| Length - Ring Center to Termination, Width - Outer Edges | 0.250" (6.35mm) |
| Length - Termination | 0.450" (11.43mm) |
| Max. Temp. | 221 Degrees F |
| Max. Voltage, Maximum Voltage | 600 V |
| Maximum Insulation Outside Diameter | 0.17 in |
| Maximum Wire Size | 14 AWG |
| Minimum Conductor Leg Diameter, Minimum Wire Size | 16 AWG |
| Mounting Type | Free Hanging (In-Line) |
| Overall Length | 0.85 in |
| Package | Bulk |
| Package Quantity | 1000 per case |
| Product Status | Active |
| Series | Scotchlok? |
| Size | 4 |
| Standards | CSA Certified, UL Listed |
| Stud Size | #4 |
| Stud/Tab Size | 4 Stud |
| Terminal Type | Block, Standard |
| Tongue Inside Opening | - |
| Trade Name | Scotchlok |
| Type | Fork |
| UNSPSC | 31201502 |
| UPC | 054007022589 |
| Wire Gauge | 14-16 AWG |
| Wire Range | 16 to 14 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | MVU14-4FB/SK | 0.204 | 125.664 | 40 | 1000 | 3M | 0.204 @ Qty: 1000+ | |||
| Hotenda | H1693513 | 0.26872 | 161.339488 | 1 | 1000 | 3M | 0.26872 @ Qty: 1000+ | |||
 | turtle.com | MMM MVU14-4FB/SK | 0.34 | 204.136 | 1 | 1000 | 3M | 0.34 @ Qty: 1000+ | ||
| Digi-Key | 183972 | 0.36296 | 217.921184 | 1 | 4672 | 3M | 0.36296 @ Qty: 1000+ | |||
 | Radwell | MVU144FBSK | 0.4 | 400.0 | 1000 | 1000 | 3M | 0.4 @ Qty: 1000+ | ||
 | Platt.com | 0319040 | 0.42 | 252.168 | 1 | 1000 | 3M | 0.42 @ Qty: 1000+ | ||
 | Zoro | G5812371 | 274.99 | 165103.996 | 1 | 1000 | 3M | 2.18 | 274.99 @ Qty: 1000+ | |
 | rshughes.com | 054007-02258 | 280.0 | 280000.0 | 1000 | 1000 | 3M | 280.0 @ Qty: 1000+ | ||
| Grainger | 2JKA7 | 286.27 | 171876.508 | 1 | 1000 | 3M | 286.27 @ Qty: 1000+ | |||
 | gordonelectricsupply.com | MVU14-4FB/SK | 287.0 | 172314.8 | 1 | 1000 | 455 | 3-M | 287.0 @ Qty: 1000+ | |
| Dale-Electric | MVU14-4FB/SK | 317.24 | 190470.896 | 1 | 1000 | 3M | 317.24 @ Qty: 1000+ | |||
| Graybar | 93152849 | 436.1168 | 261844.52672 | 1 | 1000 | 3M | 436.1168 @ Qty: 1000+ | |||
 | Raptor Supplies | AC2FCL | 481.5890235 | 289146.049709 | 1 | 1000 | 3M | 481.5890235 @ Qty: 1000+ |
