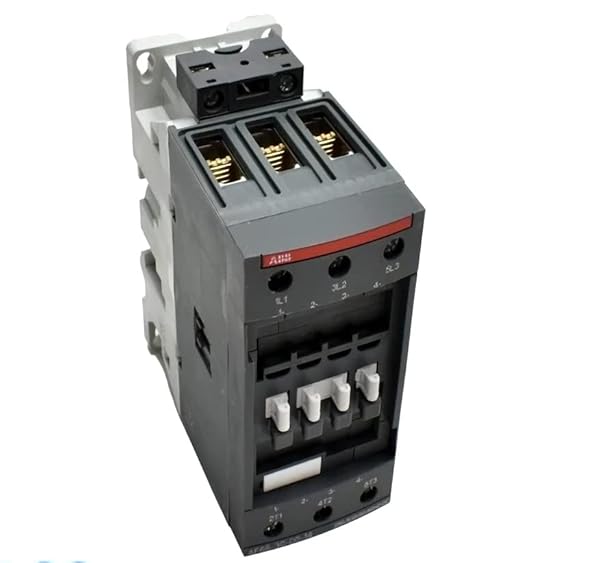

ABB AF65-30-00-14

mpnAF65-30-00-14
brandname: ABB
manufacturername: ABB

AB AF65300014 CTR,3P,68A,250-500VAC

AB AF65300014 CTR,3P,68A,250-500VAC

zoom

Brand: ABB
PartNumber: AF65-30-00-14
PackageQuantity: 1
Binding: Misc.
Manufacturer: ABB
Label: ABB

Attributes

Key	Value
Action	Non-Reversing
Amps	65
Aux. Contact Configurat.	1NO/1NC
Auxiliary Contact Form	1NC/1NO
Auxiliary Contacts	None
Coil Power Rating	25 hp, 50 hp, 60 hp, 5 .
Coil Type	Magnetic
Coil Voltage	277VAC, 460-480VAC, 250.
Coil Volts	480 V AC
Contact Configuration	3NO
Contact Current Rating	68 A
Contact Rating	105 A at 690 V
Depth	4.63 in
Dimensions	55 mm W x 111 mm D x 12.
Enclosure NEMA Rating	No Enclosure
Enclosure Type	IP10/IP20
Estimated Weight	2.23
Family Series	ABB Contactors, AF Seri.
Full Load Amps-Inductive	62 A
Full Load Amps-Resistive	100 A
General Purpose (AC1)	105 A
Gross Weight	2.335 lbs
Height	2.6 in
HP @ 1 Phase - 120V	3 hp
HP @ 1 Phase - 230V	7-1/2
HP @ 1 Phase - 240V	7 1/2 hp
HP @ 230V (3ph)	20
HP @ 3 Phase - 208V	20 hp
HP @ 3 Phase - 240V	20 hp
HP @ 3 Phase - 480V	40 hp
HP @ 3 Phase - 575V	50 hp
HP @ 460V (3ph)	50
Hz	50/60
Item	IEC Magnetic Contactor
Item Number	AF65-30-00-14
Manufacturer	ABB
Manufacturer Part Number	AF65-30-00-14
Max HP 200/208V 3PH	20 hp
Max HP 230/240V 3PH	25 hp
Max HP 460/480V 3PH	50 hp
Max HP 575/600V 3PH	60 hp
N/C Contacts	0
N/O Contacts	0
Net Weight	2.085 lbs
Nominal Coil Voltage	380 VDC, 250 VDC, 277 V.
Number of Poles	3
Operating Cycles	10000000
Operating Temperature	-40 to 70
Part Number	AF65-30-00-14
Poles	3NO
Poles (Open)	3
Product Series	AF
Reversing	No
Series	AF Series
Size	AF65
Standards	CSA, IEC, UL
Terminal Type	Screw
Termination	Screw
Type	Non-Reversing
UL Motor Switching (AC3)	65 A
UPC Code	3471523132641
Wattage	18.5/30/37
Width	2.6 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	industrialzone.com	AF65-30-00-14	139.75	2	In Stock		ABB	1.0	139.75 @ 2
	standardelectricsupply.com	2337545	171.97	1	In Stock		ABB		171.97 @ 1
	Walker Industrial	AF65-30-00-14	174.49	1	In Stock	10	ABB		174.49 @ 1
	motorsandcontrol.com	AF65-30-00-14	177.26	1	In Stock		ABB	2.23	177.26 @ 1
	Airline Hydraulics	ABB AF65-30-00-14	181.41	1	In Stock		ABB		181.41 @ 1
	alldataresource.com	623529	189.6	1	In Stock		ABB		189.6 @ 1
	us.rs-online.com	71160221	218.37	1	In Stock		ABB		218.37 @ 1
	Galco	AF65-30-00-14-ABBG	222.07	1	In Stock		ABB	2.335	222.07 @ 1
	Newark	60Y4566	222.3	1	In Stock		ABB		222.3 @ 1
	Zoro	G1089252	248.99	1	In Stock		Abb	2.75	248.99 @ 1
