Description:

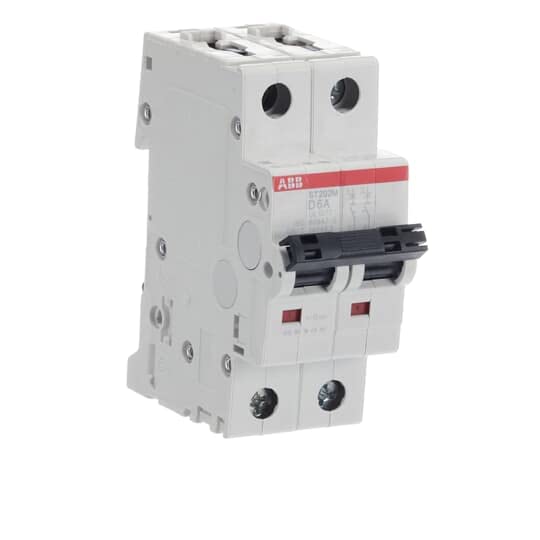

Circuit Breaker,Miniature,DIN Rail Mount,D Curve,2 Pole,6A
Weight:
0.1925
Weight:
0.1925 LB
Preferred Price:
116.24
Price:
116.24
Min Simple Price:
63.52
Absolute Min Price:
90.19
Min Price:
90.19
Dimensions:
[4.0, 3.0, 2.0]
qty:
21
simpleSku:
ODIxMA:::ST202M-D6
sku:
ODIxMA::26:ST202M-D6@y0
condition:
11
seller:
standardelectricsupply.com
amzMan:
abb group
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC Voltage Rating | 277/480V AC |
| Alarm Switch, Auxiliary Switch, Busbar, Shunt Trip, Undervoltage Release | Optional |
| Amps | 6 |
| Amps, Current Rating | 6 A |
| Application | Commercial, Industrial, Supplementary Protection |
| Approvals | UL 1077 ; CSA 22.2 No. 235, CCC, CSA, EAC, UL, VDE |
| Breaker Series, Product Series | ST200M |
| Characteristic | D Curve |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style, Mounting | DIN Rail |
| Country of Origin (subject to change) | Hungary |
| CSA Standard | 22.2 |
| Curve Type, Trip Curve | D |
| DC Voltage Rating | 110V DC |
| Depth | 3.0 in |
| Estimated Weight | 3.08 |
| Family Series | ABB Circuit Breakers, ST200M Series |
| Gross Weight | 0.495 lbs |
| IEC Standard | 60947-2 |
| Interrupt Rating AC | 10 kA |
| Item | IEC Supplementary Protector |
| Item Number, Manufacturer Part Number, Part Number | ST202M-D6 |
| kA Rating, kAIC @ 125 VDC, kAIC @ 240 VAC, kAIC @ 480 VAC, kAIC @ 60 VDC | 10 |
| kAIC @ 277 VAC | 5 |
| Length, Length (Straight Wireway) | 3.38 in |
| Manufacturer | ABB |
| Max Voltage | 125 VDC, 277/480 VAC |
| Max. AIR Rating | 10kA at 277V AC |
| Max. Wire Size | 4 AWG |
| Meets UL Type, UL Rating | UL 1077 |
| Min. Wire Size | 14 AWG |
| Mounting Type | DIN Rail Mount |
| Net Weight | 0.5 lbs |
| Neutral Pole | No |
| Number of Poles, Poles | 2 |
| Phase | 1 |
| Protection | Supplemental |
| RoHS | Yes |
| Series | ST200 M Series, EP100 |
| Standards | UL1077/CSA 22.2 No. 235, CSA C22.2 No.235, EAC, IEC 898-1, IEC 947-2UL , UL1077, VDE |
| Terminal Connection | Screw Clamp |
| Terminal Type, Termination | Screw |
| Terminals Included | Line and Load |
| Trip Type | Thermal Magnetic |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Type | Trip Curve D, Thermal/Magnetic |
| UL Standard | 1077 |
| UPC Code | 4016779021302 |
| Voltage | 227VAC, 480VAC, 60VDC, 125VDC |
| Voltage Rating | 480 ; 480 ; 277 V |
| Volts AC | 277, 480Y |
| Width | 1.42 in |
