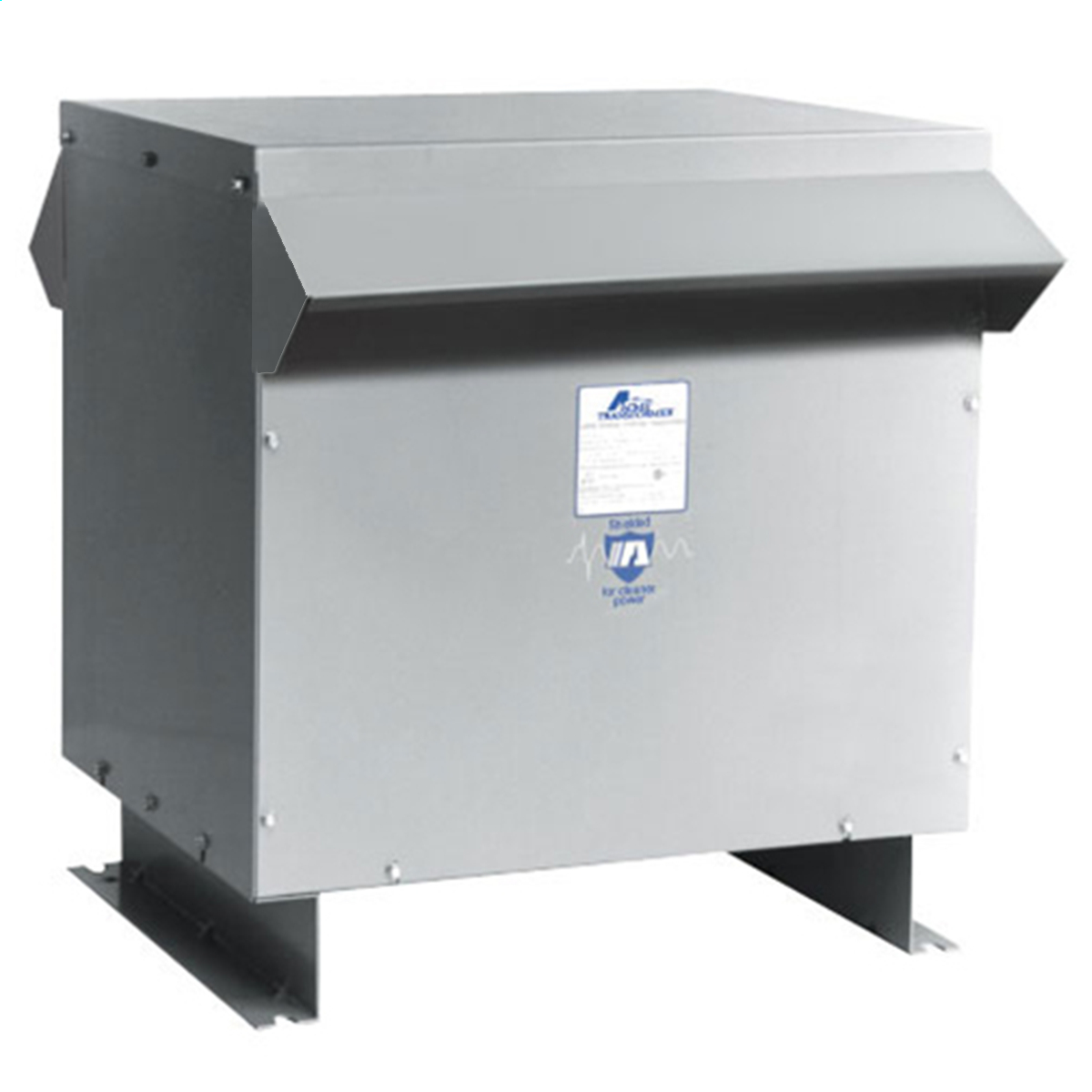

Acme Electric T3075K0074B 3 PH, 60 Hz, 240 Delta Primary Volts, 75 W, 480Y/277 Secondary Volts

Acme Electric T3075K0074B 3 PH, 60 Hz, 240 Delta Primary Volts, 75 W, 480Y/277 Secondary Voltszoom

Attributes

Key Value
ApplicationDry Type Distribution T.
ApprovalsCSA, UL
BrandAcme Electric
Catalog NumberT3075K0074B
ColorASA 61 Gray
Connection typeLug Terminal
Country of OriginMexico
Country of Origin (subj.Mexico
Depth22.37 in
Dimensions29.41 in H x 28.15 in W.
Efficiency98.6
EnclosedYes
EnclosureNEMA 3R
Enclosure MaterialSteel
Enclosure RatingNEMA 3R
Enclosure TypeIndoor/Outdoor, NEMA 3R
Family SeriesAcme Electric Transform.
Frequency Rating60, 60 Hz
Gross Weight600 lbs
Height29.41 in, 29.41
Height UOMInch
Housing materialSteel
Hz60
Hz - Electrical60 Hz
IncludesWeathershield
Input Voltage240VAC
Input Voltage - Transfo.240V AC Delta
ItemThree Phase Transformer
Item - TransformerThree Phase Transformer
Item NumberT3075K0074B
Item TypeIsolation transformer
Knockout Size - Transfo.No Knockout
Length22.37
Length UOMInch
Made in USANo
ManufacturerAcme Electric, Acme Ele.
Manufacturer Part NumberT3075K0074B
MountingFloor
Mounting - TransformerFloor
Mounting - TransformerFloor
Mounting typeFloor
Net Weight0 lbs
Number of TapsTwo 2-1/2% (+) & Two 2-.
Outdoor Rated - Transfo.Yes
Output Voltage480VAC Wye/277VAC
Output Voltage - Transf.277V AC, 480V AC Wye
Phase3
Phase - Electrical3
Power Rating75
Primary Voltage240 V, 240D V, 240 Delt.
Promotion RestrictionNot eligible for promot.
Secondary Voltage480Y/277 V, 480Y/277 VA.
Special FeaturesMeet DOE 2016 efficienc.
StandardUL 1561, UL File Number.
StandardsC22.2 No. 47, File E125.
Temp. Rise150 Degrees C
Temperature Rating150 Degrees C
Temperature Rating (Deg.150
TypeVentilated, Dry Sealed
UPC047503093214
VA Rating75kVA, 75,000 VA
VA Rating - Transformer75 kVA
Voltage Function - Tra.Step Up
Width28.15, 28.15 in
Width UOMInch
Winding Material - Tran.Aluminum

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG01305824682.01In Stock45Acme Electric600.04682.0 @ 1
thumbzoomstandardelectricsupply.com23594274824.831In StockAcme Electric4824.83 @ 1
steinerelectric.com10198875003.131In StockAcme Electric5003.13 @ 1
thumbzoomGalcoT3075K0074B-ACME5034.591In StockAcme Electric600.05034.59 @ 1
thumbzoomcrescentelectric.com6334238627.81In StockAcme Electric8627.8 @ 1
