brand:
manufacturer:
Description:

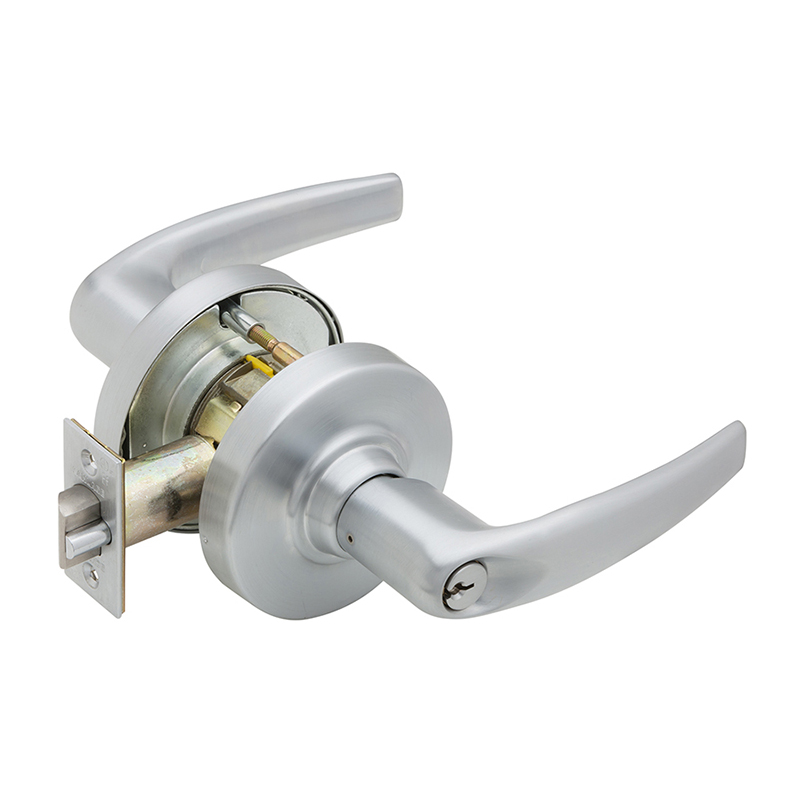

<p><b>Electrified Cylindrical Lock, Storeroom, 24VAC/DC Fail Secure, Athens Lever, Satin Chrome</b></p><p>ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.</p><p>ACSI supplies high quality UL Listed modifications to a wide range of manufacturer's locksets.</p><p><p>You supply the lock and ACSI supplies high quality UL Listed modifications to a wide range of manufacturers' locksets.</p>
Weight:
5.0
Weight:
5.0 LB
Preferred Price:
1080.44
Price:
1080.44
Min Simple Price:
610.42
Absolute Min Price:
866.79
Min Price:
866.79
Dimensions:
[17.0, 15.0, 10.0]
qty:
21
simpleSku:
DAzOTY:::ACND80PDEU ATH 626 24V
sku:
DAzOTY::JR:ACND80PDEU ATH 626 24V@y0
condition:
11
seller:
thebuilderssupply.com
amzMan:
acsi
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Amp Draw | 0.15 |
| Application | Storeroom Lever |
| BAA Qualified | Yes |
| Base Material | Brass or Bronze |
| Bolt Protection | 1/2" |
| Case Height | 10" |
| Case Length | 16.375" |
| Case Volume | 2394.84375 |
| Case Width | 14.625" |
| Color | Satin Chrome |
| Color Code | 626/US26D |
| Cylinder Type | Conventional Cylinder |
| Door Thickness | 1-3/4" to 2" |
| Dust Box | None |
| Function | 80EU-Fail Secure |
| Grade | Grade 1 |
| Key(s) | Included |
| Keying | Keyed Different |
| Keyway | C |
| Latch Backset Dim | 2-3/4" |
| Latch Number | 13-047 |
| Latch Type | Guarded Latch |
| Lever/Knob Design | ATH - Athens |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Operating Voltage | 24VAC/DC |
| Origin | Mexico |
| Package Height | 4.75" |
| Package Length | 9.5" |
| Package Qty | 1 |
| Package Volume | 372.28125 |
| Package Width | 8.25" |
| Power | Hard Wired |
| Rose/Escutcheon Design | 3-7/16 In. Diameter |
| Screws | Combination |
| Special Marks | Conventional Cylinder |
| Strike Height | 4-7/8" |
| Strike Number | 10-025 |
| Strike Type | ASA |
| Strike Width | 1-1/4" |
