mpn:
brand:
manufacturer:
MPN:
Description:
3.9 Inch Length X 3.5 Inch Width X 2.8 Inch Height Size; -20 Deg F min. Starting Temperature; 60 Hertz Frequency Rating; Magnetic Ballast, Dry Film Capacitor Contents; UL 1029, CSA 22.2 Approval; Metal Halide Lamp Type; 175 Watt Lamp Wattage
Weight:
0.5025
Weight:
0.5025 LB
Preferred Price:
141.22
Price:
141.22
Min Simple Price:
77.22
Absolute Min Price:
109.65
Min Price:
109.65
Dimensions:
[12.0, 6.0, 5.0]
qty:
21
simpleSku:
TcwOTM:::71A5593001D
sku:
TcwOTM::V8:71A5593001D@y0
condition:
11
seller:
steinerelectric.com
amzMan:
advance
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Allowed Wiring Config(Remote), CSA certificate, RoHS Compliant, Suitable for Outdoor use?, UL Recognized | Yes |
| amperage rating, Cord Type | HID Lighting |
| ANSI Code | M137/M152 |
| ANSI Code, ANSI Code: | M137/152 |
| Application | Lighting Luminaire Component |
| Approbation Marks | ULR, CSA, RoHS |
| Automatic restart, CCC certificate, CE marking, CEC Listing, Chia Quality Certificate, cUL certificate, dimmable, Dimmable:, EISA, ETL Certificate, FIDE Certificate, NOM certificate, SASO Certificate, UL Listed, VDE certificate | No |
| Ballast factor | 1 - |
| Ballast Factor, Ballast Factor:, Carton, Number of Lamps, Number Of Lamps:, Pieces per Sku, Skus/Case | 1 |
| Ballast Type, Type, Type: | Magnetic HID |
| Bar code on case | 30781087120799 |
| Bar code on pack, idwItemCtrl, upc, UPC | 781087120798 |
| Base Model | 71A5593 |
| Brand | Signify Electronics |
| brandLabel | PHILIPS ADVANCE |
| Capacitor Catalog Number | 7C110M40 |
| Capacitor Dia/Oval Dim | 1.65 in |
| Capacitor Height | 3.75 in |
| Capacitor Requirements | 370V |
| Capacitor Temp Rating, Ignitor Temp Rating | 105?C |
| Capacitor value [?F], Microfarad: | 11 MFD |
| catalog, Manufacturers Part Number, Product number | 71A5593001D |
| Category | High Intensity Discharge HID Ballast |
| Category Description, Classification | Hid Ballasts |
| Circuit Type | SUPER-CWA |
| Coil Depth C1, Length A2, Width: | 3.5 in |
| Color | SE |
| Constant wattage deviation | 10% |
| Core Size | 3 X 4 (2 coil) |
| Country of Origin | USA |

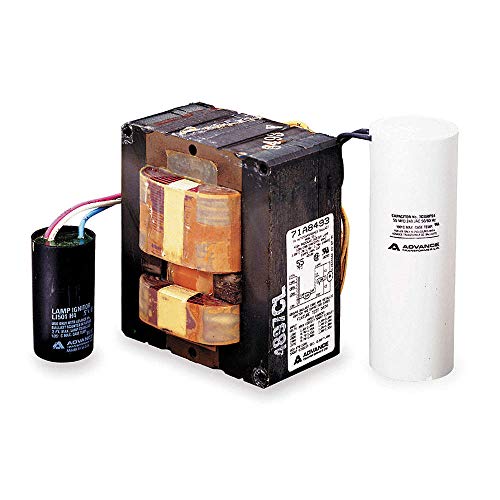

| Description | 175W Pulse Start MH Multi Tap M137/M152 |
| Diameter, lumens | 8.5 |
| eop_net_weight_pp | 3.634 kg |
| extra long description | ADV 71A5593001D MH BAL 175W M137/M1 |
| Family Name | Core & Coil MH |
| Frequency Rating | 60 |
| Frequency Rating:, Line Frequency | 60 Hz |
| Full product name, Product Type, Short product name | MH BAL 175W M137/M152 QUAD KIT |
| gtin, GTIN | 00781087120798 |
| Height | 2.8 |
| Height:, Width B1 | 2.8 in |
| HiPot Test (1 minute) | 2000 V |
| HiPot Test (2 seconds) | 2500 V |
| idwIndex | 7586509 |
| igcc | 3708 |
| Ignitor Catalog Number | LI533-H4 |
| Inp. Current (Open Circuit) | 1.9/1.05/0.9/0.8 A |
| Input Current (Operating) | 1.8/1.05/0.9/0.8 A |
| Input Current (Starting) | 0.7/0.75/0.65/0.55 A |
| Input Current Short Circuit | 0.4-0.7/0.22-0.35/0.2-0.35/0.17-0.32 A |
| Input Power Gear | 208 W |
| Input Voltage at Lamp Dropout | 60/104/120/138 V |
| Lamp Type | 175W MH |
| Lamp Type, Lamp Type: | METAL HALIDE |
| Length | 3.95 |
| Length A1 | 3.9 in |
| Length: | 3.95 In |
| Line Voltage, Voltage Rating: | 120/208/240/277 V |
| Logistics code(s) | 913700503051 |
| Long Description | Reliable performance Vacuum-pressure impregnation is used to re-enforce the electrical insulation of the ballast, preclude moisture, inhibit noise, and dissipate heat;Pre-insulated voltage leads reduce the risk of shock and shrink installation time The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations. Vacuum-pressure impregnated with a silica-filled pol |
| Manufacturer | Advance Transformer |
| Max Dist. Ball to Lamp(Remote) | 2' |
| Nominal Open Circuit Voltage | 275 V |
| Number of Lamps | 1 piece |
| Open Circ Voltage Test (Volts) | 250-300 V |
| Power Factor | 0.90 |
| Power Factor, Power Factor: | HIGH |
| Power Rating, Wattage | 175 |
| Power Rating: | 175 WTT |
| Rated Lamp Watts | 175W |
| Recommended Fuse | 5/3/3/3 A |
| Secondary ShortCircuit Current | 1.6-1.95 A |
| sequenceId | 607 |
| Special Features | Suitable for Outdoor; UL Listed, CSA, RoHS |
| Stack Height C2 | 2.24 in |
| start type, Start Type: | Pulse |
| Temperature marking | C/C/C/C |
| Thermal Protection: | CLASS P |
| UL Insulation Class | H(180?C) |
| UL Temperature Code | 1029C |
| UNSPSC | 39101902 - High intensity discharge HID ballast |
| UNSPSC, unspsc | 39101902 |
| Voltage Rating | 120/208/240/277 |
| Wattage: | 175 W |
| Weight, Weight per each | 8.04 |
| Weight: | 8.04 LB |
| Width | 3.5 |
| Width B2 | 2.4 in |
| Wire Length by Color | 12" |
| Wire Striplength | 0.5 mm |
| Wire Type | Stranded |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| steinerelectric.com | 142538 | 77.22 | 77.22 | 1 | In Stock | Advance | 77.22 @ Qty: 1+ | |||
 | gordonelectricsupply.com | 71A5593001D | 95.59 | 95.59 | 1 | In Stock | 155 | ADVANCE | 95.59 @ Qty: 1+ | |
 | mayerelectric.com | ADV71A5593001D | 160.28 | 160.28 | 1 | In Stock | ADVANCE | 7.9948 | 160.28 @ Qty: 1+ | |
 | Elliott Electric | 71A5593001D | 181.92 | 181.92 | 1 | In Stock | Advance | 8.04 | 181.92 @ Qty: 1+ | |
| Dale-Electric | 71A5593001D | 382.29 | 382.29 | 1 | In Stock | Advance Transformer | 8.04 | 382.29 @ Qty: 1+ |
