mpn:
brand:
manufacturer:
MPN:
Weight:
5.0
Weight:
5.0 LB
Preferred Price:
69.69
Price:
69.69
Min Simple Price:
35.35
Absolute Min Price:
55.19
Min Price:
55.19
Dimensions:
[6.0, 4.0, 1.0]
qty:
21
simpleSku:
NTM1Nw:::60210-05-02
sku:
NTM1Nw::4U:60210-05-02@y0
condition:
11
seller:
fixsupply.com
amzMan:
aignep usa
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Air |
| Basic Material, Body, Body Material, Fitting Material, Material, Pipe Thread Material, Ring Release Material | Stainless Steel |
| Body Color, Color, Ring Release Color | Silver |
| Brand Name | AIGNEP |
| Brand Part Number | 60210-05-02 |
| Compatible Tube Material | Copper, Nylon, Polyethylene, Polyurethane |
| Compliance | EN331, REACH, ROHS |
| Connection (A), Connection (C) | 5/16" Tube |
| Connection (B) | 1/8" Universal Male |
| Connection Type | Tube x Universal Thread |
| Country of Origin (subject to change) | Italy |
| End Connection Type | Push-to-Connect, Threaded |
| Fitting Body Material | 316 Stainless Steel |
| Fitting Pipe Size, Fitting Side C Pipe Size, Pipe Size | 1/8 in |
| Fitting Shape, Shape | Tee |
| Fitting Side A Connection Type, Fitting Side B Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter, Fitting Side B Tube Outer Diameter, For Tube Outside Diameter, Tube Size | 5/16 in |
| Fitting Side C Connection Type | Universal |
| Fittings Sub-Category | Tees |
| For Tube OD | 5/16", 5/16 in x 5/16 in |
| Gasket Material | PTFE/FKM |
| Gripping Ring Material | 316L Stainless Steel |
| Hex Size | 33/64 in |
| Includes Pre-Applied Thread Sealant | No |

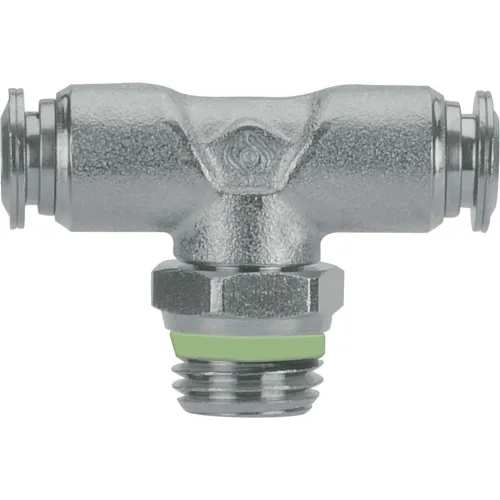

| Item | Swivel Branch Tee |
| Material Grade | 316 |
| Max. Pressure | 250 psi |
| Maximum Operating Pressure, Working Pressure | 290 psi |
| Maximum Operating Temperature | 437 Degrees F |
| Media | Compressed Air Fluid for the food and Chemical Industry compatible with component specifications |
| Minimum Operating Temperature | 5 Degrees F |
| O-Ring Material | Viton |
| Pipe Size | 1/8" |
| Pipe Thread Type | Universal Male |
| Pressure Rating | Vacuum-290 PSI |
| Special Features | Universal Thread System Compatible with Inch and Metric Threads |
| Style | Male Branch Tee |
| System of Measurement | Imperial |
| Temp. Range | 5 Degrees to 437 Degrees F |
| Temperature Range | 5 ? F - 437? F |
| Thread Seal | FKM |
| Thread Type | SWIFTFIT |
| Tubing Compatibility | Nylon, Polyethylene, Polyurethane, Copper |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | fixsupply.com | ZUSA-TF-PTC-SS-101 | 35.35 | 35.35 | 1 | In Stock | 25 | AIGNEP | 35.35 @ Qty: 1+ | |
 | primebuy.com | 60210-05-02 | 42.41 | 42.41 | 1 | In Stock | Aignep | 42.41 @ Qty: 1+ | ||
 | Zoro | G5097340 | 49.56 | 49.56 | 1 | In Stock | 32 | Aignep Usa | 0.02 | 49.56 @ Qty: 1+ |
 | Global Industrial | WBB1222914 | 53.95 | 53.95 | 1 | In Stock | Aignep USA | 53.95 @ Qty: 1+ |
