Compatible Copper Tube Size | 10 mm |
Compatible Tube Material | Copper, Nylon, Polyethylene, Polyurethane |
Country of Origin (subject to change) | Italy |
End Connection Type | Push-to-Connect, Threaded |
Fitting Body Material | 316 Stainless Steel |
Fitting Material, Release Ring Material | Stainless Steel |
Fitting Pipe Size, Fitting Side C Pipe Size | 1/8 in |
Fitting Shape | Tee |
Fitting Side A Connection Type, Fitting Side B Connection Type | Push-to-Connect |
Fitting Side A Tube Outer Diameter, Fitting Side B Tube Outer Diameter, For Tube Outside Diameter | 6 mm |
Fitting Side C Connection Type | Universal |
Fitting Thread Size | 1/2 |
For Tube OD | 6 mm x 6 mm |
Includes Pre-Applied Thread Sealant | Yes |

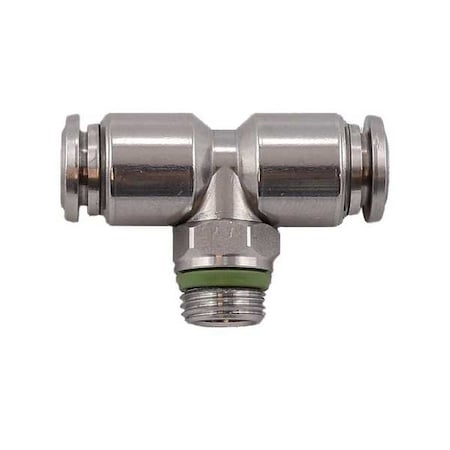

Item | Push to Connect Fitting |
Material Grade | 316 |
Maximum Operating Pressure | 290 psi |
Maximum Operating Temperature | 437 Degrees F |
Minimum Operating Temperature | -5 Degrees F |
Release Type | Collet |
Resistance Properties | Impact-Resistant, Vibration-Resistant |
Thread Sealant Type | FKM |
