| Construction | Aluminum |
| Country of Origin (subject to change) | United States |
| Depth (In.) | 23.4 |
| Finish | Black Painted |
| Flow Ranges (GPM) | 20 to 200 |
| Height (In.) | 33.26 |
| HP | 3 hp |
| HP Heat Removed | 105 hp |
| Includes | Mounting Feet |
| Inlet Port Thread Size, Outlet Port Thread Size | 2 in SAE 4 Bolt Flange |

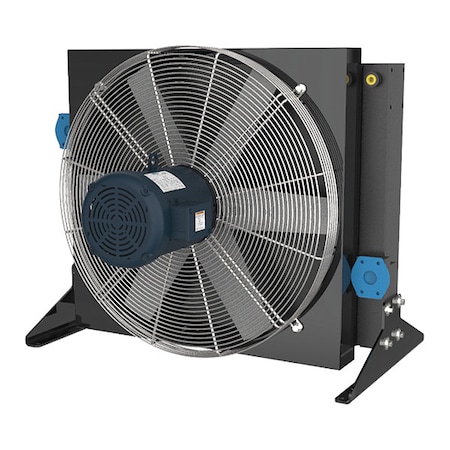

| Item | Forced Air Oil Cooler |
| Max. Flow | 200 gpm |
| Max. Oil Temp., Max. Operating Temp. | 250 Degrees F |
| Max. Pressure | 377 psi |
| Max. Pressure (PSI) | 377 |
| Max. Temp. | 250 Degrees F |
| Motor Amps | 8.6/4.3 |
| Motor HP, Number of Phases | 3 |
| Motor Type - Oil Coolers | AC |
| NEMA/IEC Frame | 56C |
| Overall Depth | 23.4 in |
| Overall Height | 33.26 in |
| Overall Width | 38.98 in |
| Port Size | 2" SAE 4 Bolt Flange |
| Type | AC Motor |
| Voltage | 230/460V AC |
| Width (In.) | 38.98 |
