| Ambient Temp. Range | 20 Degrees to 131 Degrees F |
| Ballast Type | Not Applicable |
| Bay Light Type | High Bay |
| CA Title 24 Compliant | Not Applicable |
| Channel Width | 17 3/8 in |
| Color Rendering Index | 80.0 |
| Color Temperature | 5000K |
| Cord Length | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Dimmable | Yes |
| Emergency Back Up Battery | No |
| Emergency Battery Backup | No |
| Fixture Height | 8 1/4 in |
| Fixture Housing Color | White |
| Fixture Housing Material | Aluminum |
| Fixture Length | 17 3/8 in |
| Fixture Lens Material | Polycarbonate |
| Fixture Lens Type | Diffused |
| Fixture Mounting Type | Pendant |
| Fixture Rated Life | 100,000 hr |
| Fixture Reflector Material | Aluminum |
| Fixture Temp. Range | -22 Degrees to 131 Degrees F |
| Fixture Type - High and Low Bay Fixtures | Round Reflector |
| Fixture Voltage | 120 to 277 |
| Fixture Warranty | 5 yr |
| Fixture Width | 17 3/8 in |
| For Bulb Shape | Not Applicable |
| For Bulb Type | Integrated LED |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Housing Color | White |
| Housing Finish | Polyester Powder |
| Housing Material | Aluminum |
| Ingress Protection Rating | 66, 67, 69 |
| IP Rating | 66 |

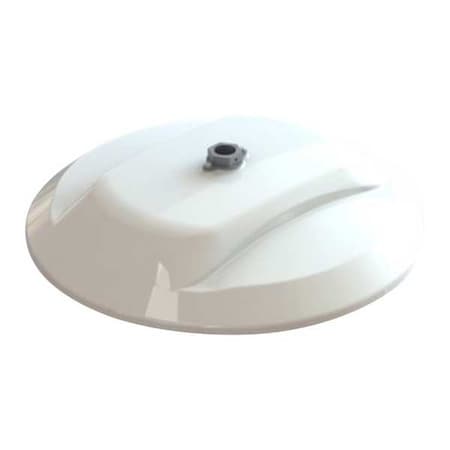

| Item | LED High Bay |
| Lamp Type | Integrated LED |
| Lamp Type - Fixtures | Integrated LED |
| Lamp Watts - Fixtures | 79 W |
| LED Replacement For | 175W MH/HPS |
| Lens Material | Polycarbonate |
| Light Distribution | Wide |
| Light Technology | LED |
| Lighting Certification | DesignLights Consortium (DLC) |
| Lighting Technology | LED |
| Lumens | 12,000 lm |
| Lumens Per Watt | 152.0 |
| Lumens per Watt | 152 lm/W |
| Max. Ambient Temp. | 131 Degrees F |
| Max. Fixture Wattage | 79 W |
| Min. Ambient Temp. | 20 Degrees F |
| Nominal Size - Fixtures | 2 ft x 2 ft |
| Number of Bulbs | Not Applicable |
| Number of Light Bars | 0 |
| Occupancy Sensor | No |
| Overall Height | 8 1/4 in |
| Overall Length | 17 3/8 in |
| Overall Width | 17 3/8 in |
| Product Type | LED High Bay |
| Rated Life | 100,000 hr |
| Reflector Material | Aluminum |
| Reflector Type | Enclosed |
| Series | ABN1 |
| Standards | CUL Listed, IP66, IP67K, NEMA 4X, NSF, UL Listed |
| Suggested Fixture Mounting Height | 15 to 40 ft |
| Suggested Fixture Mounting Height Range | Up to 20 ft. |
| Voltage | 120 to 277V |
