Description:

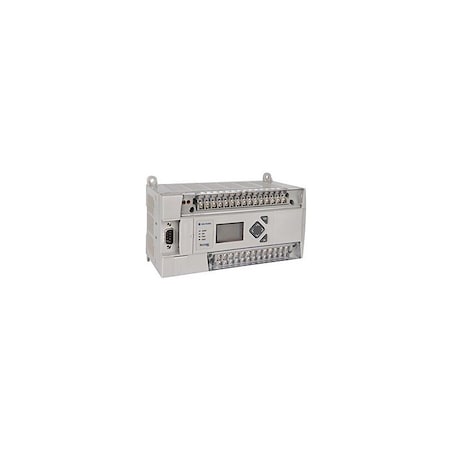

1766L32Bxba Plc Module 12 Digital Fast 24V Dc Inputs 8 Digital 24V Dc Inputs 6 Relay Outputs 3 Fast 24V Dc Outputs 3 Normal 24V Dc Outputs 4 Analog Micrologix 1400
Attributes
| Key ^ | Value |
|---|---|
| Communication | DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP |
| Controllers | MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital 24V dc inputs, 6 relay outputs, 3 fast 24V dc outputs, 3 normal 24V dc outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 24V dc power |
| Depth | 87 |
| Display | Yes |
| Embedded Analog | (4) Voltage Inputs / (2) Voltage Outputs |
| Enclosure | IP20 |
| Height | 90 |
| Input Signal, Power Supply | 24V DC |
| Interface | Ethernet Port, Isolated RS232/485 and Non-Isloated RS232C Serial Ports. |
| Memory | 20 KB |
| Mounting | DIN Rail, Panel Mount |
| Network Media | Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m |
| Number Of Channels | 20 I/P, 12 O/P |
| Operating Temperature | -20 to 60 ?C (-4 to 140 ?F) |
| Output Signal | (6) Relay and (6) 24V DC FET |
| Package Quantity | 1 |
| Special Features | Built-in RTC, Online Editing, 6 HSC, 3 PTO/PWM, Up to 7 Expansion I/O |
| Standard | c-UL-us CL1DIV2, CE, C-Tick, KCC |
| Type | Controller |
| Width | 180 |
