- mpn6343 SL002
- brandname: Alpha Wire
- manufacturername: Alpha Wire

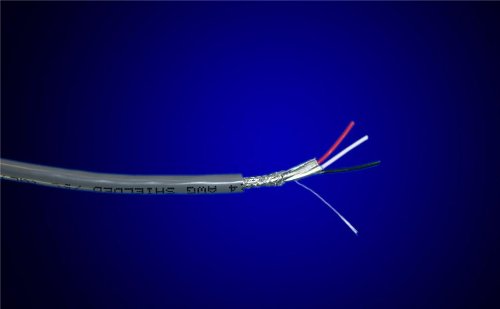

Alpha Wire 6343 SL002 Multi-Conductor Cables 22AWG7C SHIELD 500ft SPOOL SLATE
- Brand: Alpha Wire
- PartNumber: 6343 SL002
- Manufacturer: Alpha Wire
- Label: Alpha Wire
Attributes
| Key | Value |
|---|
| Application | For EIA RS-232C interfa. |
| Base Product Number | 6343 |
| Cable Type | Multi-Conductor |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 22 AWG |
| Conductor Strand | 7/28 |
| Description | CABLE 7CON 22AWG SLATE . |
| Detailed Description | 7 Conductor Multi-Condu. |
| Digi-Key Part Number | 6343SL002-ND |
| Features | Drain Wire |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | 0.010 in. |
| Jacket (Insulation) Dia. | 0.241" (6.12mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0320" (0.813mm) |
| Jacket Color | Gray, Slate |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.032 in. |
| Length | 500.0' (152.4m), 500 ft |
| Manufacturer | Alpha Wire |
| Manufacturer Product Nu. | 6343 SL002 |
| Manufacturer Standard L. | 7 Weeks |
| Maximum Operating Tempe. | 80 ?C |
| Mfr | Alpha Wire |
| Minimum Operating Tempe. | -20 ?C |
| Number of Conductors | 7 |
| Operating Temperature | -20?C ~ 80?C |
| Outer Diameter | 0.245 in. |
| Package | Spool |
| Packaging | Coil |
| Product Header | Multiconductor Foil/Bra. |
| Product Status | Active |
| Ratings | UL Style 2464 |
| Series | -, 6343 Series |
| Shield | Aluminum/Polyester |
| Shield Coverage | 100%, 65% |
| Shield Material | Aluminum; Copper, Tinne. |
| Shield Type | Foil, Braid |
| Shielding | Foil & Braid |
| Standards | UL Type CM, UL AWM Styl. |
| Stranding | 7x30 |
| Temperature, Rating | -20 to 80 C |
| Usage | - |
| Voltage | 300 V |
| Voltage Rating | 300 V |
| Wire Gauge | 22 AWG |
| Wire Size | 22 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | i-components | 6343 SL002 | 218.299 | 1 | 500 | | Alpha Wire | | 218.299 @ 500 |
 | AI Consolidated | 6343-SL002-ALPHA-WIRE | 634.78 | 1 | 500 | | Alpha Wire | 23.4 | 634.78 @ 500 |
 | Digi-Key | 3714865 | 836.268 | 1 | 500 | | Alpha Wire | | 836.268 @ 500 |
| us.rs-online.com | 70139379 | 974.92 | 1 | 500 | | Alpha Wire | | 974.92 @ 500 |
 | Newark | 66F8593 | 1097.48 | 1 | 500 | | ALPHA WIRE | | 1097.48 @ 500 |
