- mpnHE1WPR/11
- brandname: Altech Corp
- manufacturername: Altech Corp

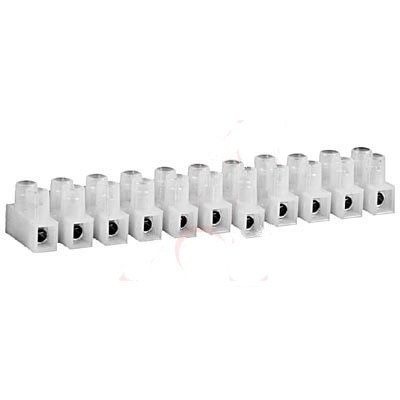

Altech HE1WPR/11 , Conn, Term Strip, Euro, 11, 8 mm, Dbl, 24-12 AWG, Opaque White, 20 A, 300 V
- PartNumber: HE1WPR/11
- PackageQuantity: 1
- Manufacturer: Altech
- Label: Altech
Attributes
| Key | Value |
|---|
| Agency Approvals | cULus ; VDE |
| Application | Wire-to-wire connection. |
| Approvals | CE, cURus, IEC |
| Barrier Type | Enclosed |
| Base Product Number | HE1WPR |
| Bottom Termination | Closed |
| Category | Connectors, Interconnec. |
| Color | White |
| Connection Type | Screw Clamp |
| Current Rating | 20 A |
| Current Rating (Amps) | 20A |
| Description | CONN TERM STRIP 11 POLE. |
| Detailed Description | 11 Circuit 0.315" (8.00. |
| Digi-Key Part Number | 1920-1401-ND |
| Dimensions | 94 L x 16.2 W x 12.2 D . |
| Family Series | Altech Terminal Blocks |
| Features | - |
| Gross Weight | 0.03 lbs |
| IEC Current | 6 A |
| IEC Voltage | 400 VAC |
| IEC Wire Range (mm2) | 1-2.5 mm2 |
| Item Number | HE1WPR/11 |
| Manufacturer | Altech, Altech Corporat. |
| Manufacturer Part Number | HE1WPR/11 |
| Manufacturer Product Nu. | HE1WPR/11 |
| Manufacturer Standard L. | 18 Weeks |
| Material - Insulation | Polyamide (PA66), Nylon. |
| Material Flammability R. | UL94 V-0 |
| Mfr | Altech Corporation |
| Mounting Hole Diameter | 3 mm, 0.11 " |
| Mounting Type | Panel Mount, Chassis, P. |
| Net Weight | 0.03 lbs |
| Number of Circuits | 11 |
| Number of Poles | 11 |
| Number of Rows | 2, Double Row |
| Number of Wire Entries | 22 |
| Operating Temperature | -30?C ~ 125?C |
| Package | Bulk |
| Pitch | 0.315" (8.00mm) |
| Product Status | Active |
| Series | EUROSTRIPS? HE, HE1 Ser. |
| Spacing Ctr. - Ctr. | 8 mm |
| Special Features | High Voltage |
| Stripping Length | 5 mm |
| Terminal Block Type | Eurostyle Terminal Strip |
| Terminal Screw Finish | Blue Chromate |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Torque | 4.4 lb/in |
| Type | Euro |
| UL Current | 20 A |
| UL Voltage | 300 VAC |
| Voltage Rating | 300 V, 300V |
| Wire Gauge | 12-24 AWG |
| Wire Range (AWG) | 24-12 AWG |
| Wire Size | 12-24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hawk Electronics | HE1WPR/11 | 2.93 | 15 | 34 | | Altech | | 2.93 @ 15 |
 | Galco | HE1WPR/11-ALTH | 2.98 | 1 | 46 | | Altech | 0.03 | 2.98 @ 1 |
| Onlinecomponents.com | HE1WPR/11 | 3.18 | 10 | 34 | | Altech | | 3.18 @ 10 |
| us.rs-online.com | 70077186 | 3.58 | 50 | 34 | | Altech Corp | | 3.58 @ 50 |
 | jensentools.com | 10117998 | 3.74 | 1 | 34 | | Altech | | 3.74 @ 1 |
| Newark | 96AK4932 | 5.11 | 50 | In Stock | | ALTECH | | 5.11 @ 1 |
 | Digi-Key | 8547191 | 5.68 | 1 | 57 | | Altech Corporation | | 5.68 @ 1 |
