Description:

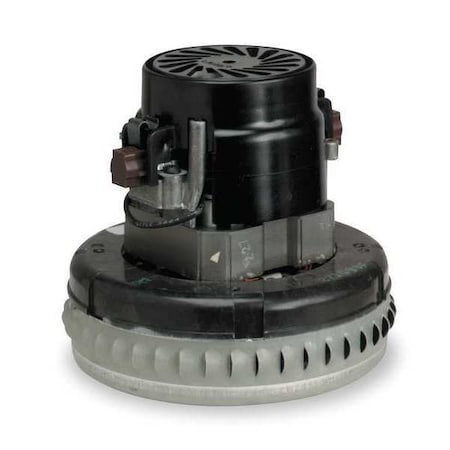

Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 25,115, No. of Speeds 1, 240V AC Voltage, Full Load Amps 4.0, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 2.6 A, 60/50 Hz, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 227 W, Vacuum Rating 57.2, CFM @ 2-In. Orifice 102.1 cfm, Motor Bearings Ball, Sleeve
Attributes
| Key ^ | Value |
|---|---|
| Ambient Temperature | 40 Degrees C |
| Average Life | 500 hr |
| Bearings | Ball |
| Blower Stages, No. of Speeds | 1 |
| Body Dia. | 5.7 in |
| CFM @ 2-In. Orifice | 102.1 cfm |
| Discharge | Peripheral Bypass |
| Duty | Intermittent |
| Hz | 60/50 |
| Inlet Tube Dia. | Not Applicable |
| Item | Vacuum Motor |
| Max. Air Watts | 227 W |
| Max. Amps | 2.6 A |
| Motor Design | Universal AC/DC |
| Motor Enclosure Design | Open |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Lug |
| Mounting Brackets | Thermoset |
| Overall Height, Overall Length | 5 1/8 in |
| Replacement Brushes | Mfr. No. 33493 |
| Vacuum (H2O Sealed) | 50.8 |
| Voltage | 240V AC |
