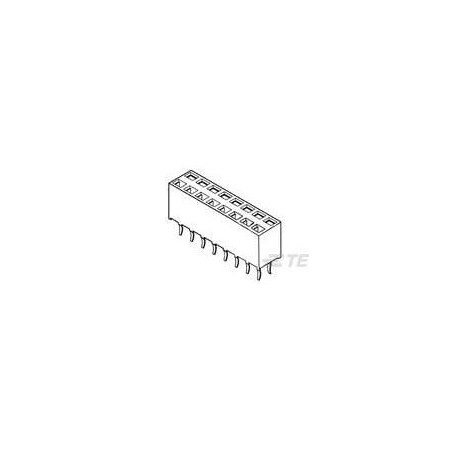

| Applications | - |
| Base Product Number | 215307 |
| Category | Connectors, Interconnects |
| Centerline (Pitch) | 2.54?mm?[?.1?in?] |
| Color | Green |
| Connection Material | Phosphor Bronze |
| Connector | Printed Circuit Board |
| Connector Height | 7?mm?[?.276?in?] |
| Connector Profile | Standard |
| Connector Style | Receptacle |
| Connector System | Board-to-Board |
| Connector Terminates To | Printed Circuit Board |
| Connector Type | Connector Assembly, Receptacle |
| Contact Base Material | Phosphor Bronze |
| Contact Current Rating (Max) | 3 |
| Contact Finish | Gold Plated |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 31.5?in (0.80?m) |
| Contact Finish Thickness - Post | 98.4?in (2.50?m) |
| Contact Length - Post | 0.122" (3.10mm) |
| Contact Material | Phosphor Bronze |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 30 |
| Contact Plating Thickness | 30 ?in |
| Contact Protection Type | Closed Entry Housing |
| Contact Shape | Square |
| Contact Type | Socket, Female Socket |
| Current Rating | 3 A |
| Current Rating (Amps) | - |
| Description | CONN RCPT 24POS 0.1 GOLD PCB |
| Detailed Description | 24 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Digi-Key Part Number | A106617-ND |
| Family Name | AMPMODU Interconnect System |
| Fastening Type | Push-Pull |
| Features | - |
| Flammability Rating | UL 94 V-0 |
| For Use With | Header Assembly |
| Height | 7 mm[.276 in], 7 mm |
| Hole Center to Center | 2.54 mm |
| Housing Color | Green |
| Housing Material | Polyester - GF |
| Ingress Protection | - |
| Insulation Color | Black or Green |
| Insulation Height | 0.276" (7.00mm) |
| Insulation Material | Polyester, Glass Filled |
| Item | PCB Mount Receptacle |
| Manufacturer | TE Connectivity AMP Connectors |
| Manufacturer Product Number | 1-215307-2 |
| Manufacturer Standard Lead Time | 32 Weeks |
| Mated Stacking Heights | - |
| Material | Glass-Filled Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mating Entry Location | Top |
| Max. Temp. | 125?C |
| Mfr | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Number of Contacts | 12 |
| Number of Positions | 24, 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | - |
| Operating Temperature Range | -65 ? 125, -55 ? 105 |
| Package | Tray |
| Package Quantity | 1 |
| Packaging Quantity | 64 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Contact Termination Area Plating Material Thickness | 2.5??m?[?98.425??in?] |
| PCB Mount Orientation | Vertical |
| PCB Mount Retention | With |
| PCB Mount Retention Type | Retention Solder Tails |
| PCB Thickness (Recommended) | 1.6 |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Product Type | Connector |
| Profile | Standard |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Row to Row Spacing | 2.54 mm in |
| Row-to-Row Spacing | 2.54 |
| Sealable | No |
| Series | AMPMODU, HV-100, AMPMODU HV-100 / HV-190 Series, AMPMODU HV-100 |
| Solder Process Feature | Board Standoff |
| Stackable | Yes |
| Style | Board to Board |
| Tail Length | 3.1 mm[.122 in] in |
| Temperature Operating Range | -65 - 125 ?C,-55 - 105 ?C ?C |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole - Solder |
| Termination | Kinked Pin, Solder |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Termination Post | 3.1?mm?[?.122?in?] |
| UL Flammability Rating | UL 94V-0 |
| Voltage Rating | - |
