TE Connectivity / AMP 1-6609017-3

B00FRBMNRK

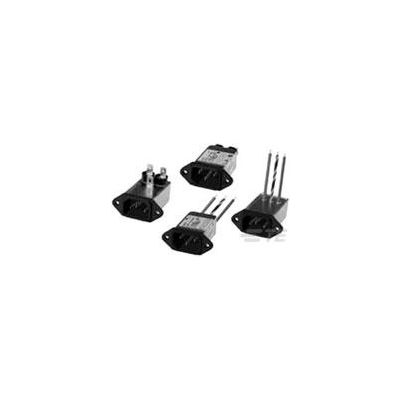

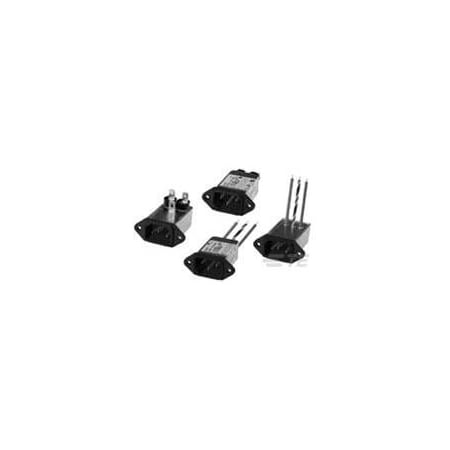

TE Connectivity / AMP Brand 1-6609017-3 Power Line Filter

TE Connectivity / AMP Brand 1-6609017-3 Power Line Filterzoom

Attributes

Key Value
Accomodates a FuseNo
Alternate Mfr Part Numb.1-6609017-3
Approval AgencyCSA, UL, VDE
Base Product Number10E
BRANDTE Connectivity / Corcom
CategoryConnectors, Interconnec.
Connector StyleIEC 320-C14
Connector TypeReceptacle, Male Blades
Country of Origin (subj.China
Current - IEC10A
Current - UL-
Current Rating10 A
Cx Capacitance0.0059 ?F
Cy Capacitance0.2015 ?F
Dimensions20.6 H x 66.5 W x 50.3 .
FeaturesFront or Rear Side Mount
Filter TypeAC Line, Filtered (EMI,.
Fuse Holder, Drawer-
GenderMale
Inductance0.36 mH
Ingress Protection-
Leakage Current0.38 mA
Line to Ground Hipot Ra.1500 VAC
Line to Line Hipot Rati.1450 VDC
MANUFACTURERS PART NUMB.10EC1
Material Flammability R.-
MfrTE Connectivity Corcom .
Mounting TypePanel Mount, Panel Moun.
Number of Poles3
Number of Positions3
Operating Frequency50/60 Hz
Operating Temperature-10 to +40 ?C
Operating Voltage250 V
PackageBulk
Panel Cut Out30.48?20.8mm (Front Mou.
Panel Cutout DimensionsVariable Size
Panel Thickness-
Part StatusActive
Phase1 Phase
Primary TypeAC Inlet
Product HeaderHigh Performance Compac.
Resistance1 ; 6000 Megaohms
SeriesCorcom EC Series, EC, C.
Switch Features-
TerminationQuick Connect - 0.250" .
TypeFilter
TYPEPower Line Filters
VersionStandard
Voltage - IEC120/250VAC
Voltage - UL-
Voltage Rating250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com10EC118.819TE Connectivity / Corcom Brand18.8 @ 1
us.rs-online.com7018566026.551216TE Connectivity26.55 @ 1
RS Delivers782-842628.3681In StockTE Connectivity28.368 @ 1
AmazonTPB00DDF678I30.471In Stock5TE Connectivity30.47 @ 1
Digi-Key37967730.8315500In StockTE Connectivity Corcom Filters30.8315 @ 1
Newark35AC727130.9560In StockAMP - TE CONNECTIVITY30.95 @ 50
thumbzoomZoroG60098310631.0920In StockTe Connectivity31.09 @ 20
thumbzoomGlobal IndustrialWBB288446333.952In StockTE Connectivity / Corcom33.95 @ 2
