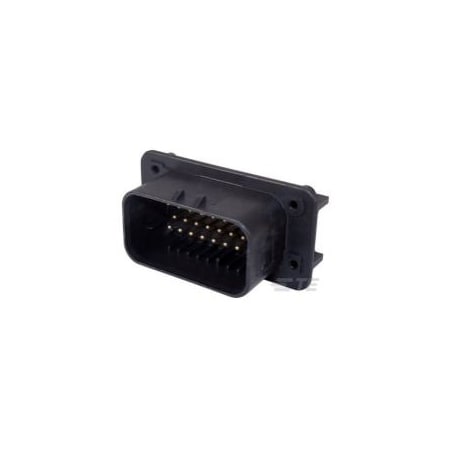

TE CONNECTIVITY / AMP 1-770669-1 CONNECTOR, RECTANGULAR, HEADER, 23POS (100 pieces)

TE CONNECTIVITY / AMP 1-770669-1 CONNECTOR, RECTANGULAR, HEADER, 23POS (100 pieces)zoom

Attributes

Key Value
Alternate Part No.571-1-770669-1
ApplicationsAutomotive, Industrial
Base Product Number770669
BrandTE Connectivity, TE Con.
CategoryConnectors, Interconnec.
Centerline (Pitch)4?mm?[?.157?in?]
Circuit ApplicationPower & Signal
ColorBlack
ColourBlack
ConnectorPrinted Circuit Board
Connector SystemWire-to-Board, Wire-to-.
Connector TypeHeader
Contact Finish - MatingGold-Palladium
Contact Finish - Post-
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post-
Contact MaterialBrass
Contact PlatingGold
Contact ShapeCircular
Contact TypeMale Pin
Country of Origin (subj.United States
Current Rating17A
Current Rating (Amps)Varies by Wire Gauge
Degree of ProtectionIP6K9K
DepthDepth
DescriptionCONN HEADER R/A 23POS 4.
Detailed DescriptionConnector Header Panel .
Digi-Key Part Number1-770669-1-ND
Fastening TypeLocking Ramp
FeaturesBoard Guide, Sealable
GenderMale
Height32.1mm
Housing MaterialGlass Fibre Reinforced .
Ingress Protection-
Insulation ColorBlack
Insulation Height-
Insulation MaterialPolybutylene Terephthal.
Interface PlatingGold (Au)
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1-770669-1
Manufacturer Product Nu.1-770669-1
Mated Stacking Heights-
Material Flammability R.-
Maximum Operating Tempe.+125?C
MfrTE Connectivity AMP Con.
Minimum Operating Tempe.-40?C
Mounting MethodPlug
Mounting OrientationHorizontal/90?
Mounting StyleThrough Hole
Mounting TypePanel Mount, Panel Moun.
Nominal Voltage Archite.12, 24, 42, 48, 240
Number Of ContactsNumber Of Contacts
Number of Positions23
Number of Positions Loa.All
Number of Rows3
Number Of RowsNumber Of Rows
Number of Signal Positi.23
Operating Temperature-40?C ~ 125?C
Operating Temperature R.-40 ? 125??C?[?-40 ? 25.
Overall Contact Length-
PackageBulk
Panel Mount FeatureWithout
PCB Mount AlignmentWith
PCB Mount RetentionWith
PCB Mount Retention TypeBoardlock
Pin Diameter1.3?mm?[?.051?in?]
Pitch - Mating0.157" (4.00mm)
ProductHeaders
Product CategoryAutomotive Connectors
Product StatusActive
Row Spacing - Mating0.157" (4.00mm)
SealableYes
SeriesAMPSEAL
ShroudingShrouded - 4 Wall
StockStock
StyleBoard to Cable/Wire
Tab Thickness1.3?mm?[?.051?in?]
Tab Width1.3?mm?[?.051?in?]
TerminationSolder
Termination MethodSolder, Through Hole - .
TypePCB Connector
Voltage Rating250VAC
Width60.8mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1-770669-15.931832TE Connectivity / AMP Brand5.93 @ 50
Power and Signal Group1-770669-16.130422050TE Connectivity6.1304 @ 220
Future Electronics69373206.97222450TE Connectivity6.972 @ 224
TE Connectivity1-770669-17.891207TE Connectivity (TE)7.89 @ 50
thumbzoomNewark74AJ750611.91150AMP - TE CONNECTIVITY11.91 @ 50
thumbzoomswatee.com1-770669-112.86161TE Connectivity12.86 @ 50
AmazonTPB00HKI99ZM12.981502T-E Connectivity12.98 @ 50
thumbzoomDigi-Key189333414.4591172TE Connectivity AMP Connectors14.459 @ 50
thumbzoomZoroG50098339818.74150Te Connectivity18.74 @ 50
thumbzoomRS Delivers726-688131.476150TE Connectivity31.476 @ 50
