Amphenol 97-3102A-14S-7S

B005T91024

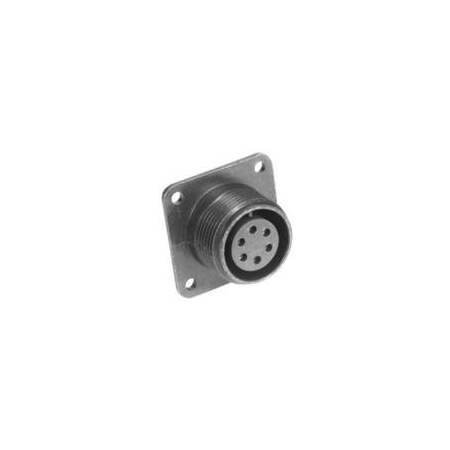

Amphenol Industrial 97-3102A-14S-7S Circular Connector Socket, Threaded Coupling, Solder Termination, Box Receptacle, Solid Backshell, 14S-7 Insert Arrangement, 14S Shell Size, 3 Contacts

Amphenol Industrial 97-3102A-14S-7S Circular Connector Socket, Threaded Coupling, Solder Termination, Box Receptacle, Solid Backshell, 14S-7 Insert Arrangement, 14S Shell Size, 3 Contactszoom

Attributes

Key Value
Agency ApprovalsUL ; CSA
Amperage Rating13A
AngleStraight
ApplicationCommercial
ClassA
Connector StyleReceptacle
Connector TypeCircular
Contact Configuration3#16
Contact MaterialBrass or Copper Alloy
Contact Mating Life100
Contact PlatingSilver
Contact Size3#16S
Contact StyleSocket
Contact TypeSocket
Contacts SuppliedYes
Contacts, # of3
Current Rating13 A
Dielectric MaterialDiallyl Phthalate
Export ClassEAR / EAR99
Family Name97 Series Connector Fam.
GenderPanel Socket
Housing FinishOlive Drab Cadmium
Housing MaterialAluminum Alloy
Housing TypeMetal
Insert Arrangement14S-7
Insert MaterialDiallyl Phthalate
Insert Rotation/KeyingNormal
IP RatingIP67
Keyed PositionN (Normal)
Mating TypeFemale
MIL TypeSAE AS50151
Mounting Hole Diameter0.12 "
Mounting TypeChassis Mount, Box - Fr.
Number of Contacts3
Operating Temperature &.+257 (+125) for 60 hour.
Operating Voltage AC V .500
Operating Voltage DC700
PackagingBulk
Primary TypeMIL/Aero
RoHSNo
Series97 Series
Service RatingA
Shell ColorOlive Drab
Shell MaterialAluminum Alloy
Shell PlatingOlive Drab Chromate ove.
Shell Size14S
ShieldingYes
SpecificationMIL-DTL-5015
Strain ReliefSolid
TerminationSolder
Termination MethodSolder
Type5015 Commercial
Voltage Rating500 ; 700 V
Weight (g)20.00000
Weight (lbs)0.04409
Wire Size16

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance Electronics97-3102A-14S-7S5.5898911Amphenol5.58989 @ 1
Onlinecomponents.com97-3102A-14S-7S7.5184Amphenol IO7.5 @ 1
WaldomAMPHENOL INDUSTRIAL OPERATIONS 97-3102A-14S-7S7.961073AMPHENOL INDUSTRIAL OPERATIONS7.96 @ 10
thumbzoomebay.com_vbindustrialsupply97-3102A-14S-7S7.991In StockAmphenol7.99 @ 1
PEI-Genesis97-3102A14S-7S8.34183Amphenol0.044098.34 @ 1
Electronic Connector Co97-3102A-14S-7S9.181In StockAMPHENOL INDUSTRIAL9.18 @ 1
us.rs-online.com7010818111.031313Amphenol Industrial11.03 @ 1
AmazonTPB00DDEZH2Q13.521In Stock5AMPHENOL INDUSTRIAL13.52 @ 1
thumbzoomComponent Electronics124-38113.8511Amphenol13.85 @ 1
HotendaH114021315.881In StockAmphenol Industrial15.88 @ 1
thumbzoomebay.com_hnh-overstock97-3102A-14S-7S17.51In StockAmphenol17.5 @ 1
Newark97W479919.2416AMPHENOL INDUSTRIAL19.24 @ 1
thumbzoomebay.com_plccenter97-3102A-14S-7S21.91In StockAmphenol21.9 @ 1
thumbzoomebay.com_buccaneerbarque97-3102A-14S-7S24.11In StockAmphenol24.1 @ 1
thumbzoomebay.com_plymouthsales416597-3102A-14S-7S50.01In StockAmphenol50.0 @ 1
thumbzoomZoroG10590726394.411In StockAmphenol Industrial Operations94.41 @ 1
