AMPHENOL INDUSTRIAL 97-3102A-24-28S

B00MEJPNHA

Circular Connector, Box Mount Receptacle, 24 Contacts, Solder Socket, Threaded, 24-28

Circular Connector, Box Mount Receptacle, 24 Contacts, Solder Socket, Threaded, 24-28zoom

Attributes

Key Value
Agency ApprovalsUL ; CSA
Alternate Part No.654-97-3102A24-28S
AngleStraight
ApplicationCommercial
ApplicationsAutomotive, Industrial
Backshell Material, Pla.-
Base Product Number97-3102A24
BrandAmphenol Industrial
Cable Opening-
CategoryConnectors, Interconnec.
ClassA
ColorOlive Drab
Connector TypeReceptacle, Female Sock.
Contact Configuration24#16
Contact Finish - MatingSilver
Contact Finish Thicknes.-
Contact GenderSocket (Female)
Contact MaterialCopper Alloy
Contact PlatingSilver
Contact TypeSocket
Current Rating13 A
Current Rating (Amps)-
DescriptionCONN RCPT FMALE 24P SOL.
Detailed Description24 Position Circular Co.
Dielectric MaterialDiallyl Phthalate
Digi-Key Part Number97-3102A-24-28S-ND
Family Name97 Series Connector Fam.
Fastening TypeThreaded
Features-
GenderPanel Socket
Housing FinishOlive Drab Cadmium
Housing MaterialAluminum Alloy
Housing TypeMetal
Ingress Protection-

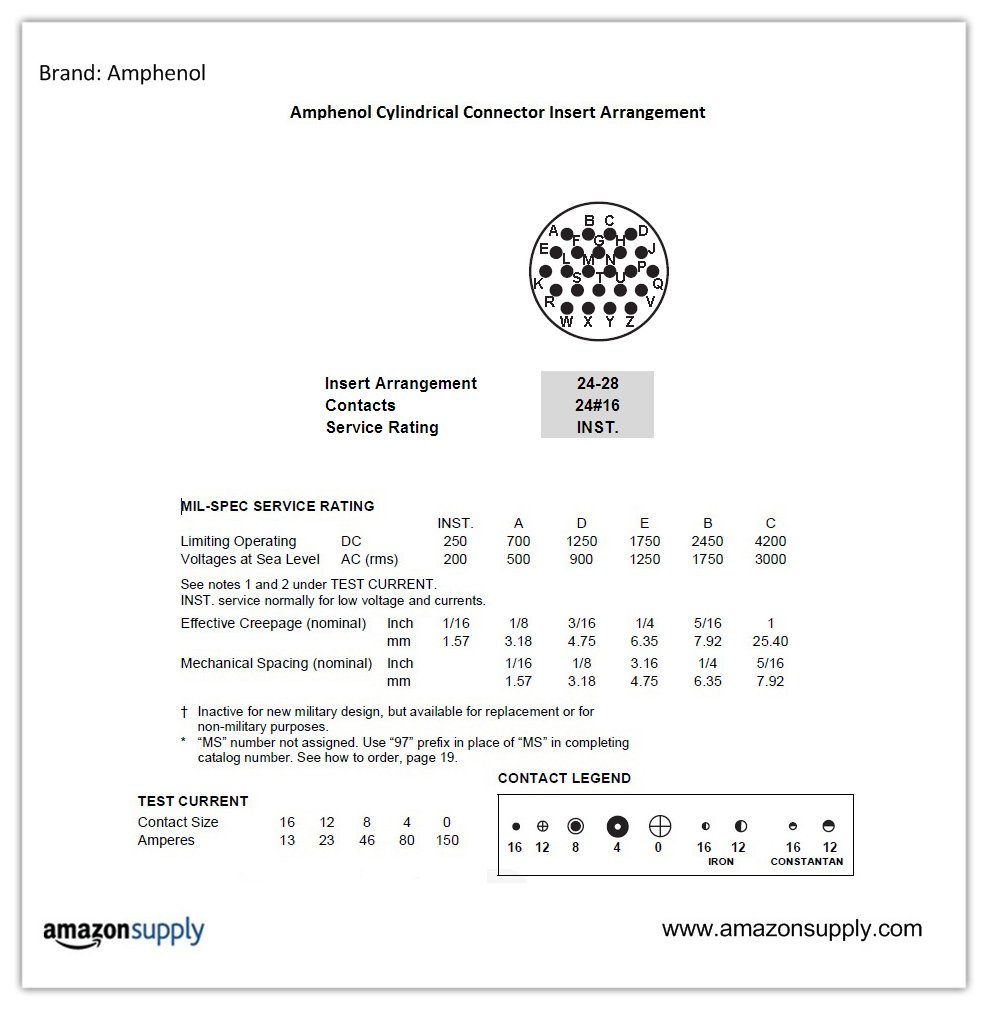

Insert Arrangement24-28
Insert MaterialDiallyl Phthalate (DAP)
IP RatingIP67
Keyed PositionN (Normal)
ManufacturerAmphenol Industrial Ope.
Manufacturer Part No.97-3102A2428S
Manufacturer Product Nu.97-3102A-24-28S
Manufacturer Standard L.10 Weeks
Material Flammability R.-
Mating StyleThreaded
Mating TypeFemale
MfrAmphenol Industrial Ope.
MIL TypeSAE AS50151, MIL-DTL-50.
Mounting AngleStraight
Mounting FeatureFlange
Mounting Hole Diameter0.147 "
Mounting StylePanel
Mounting TypePanel Mount, Chassis Mo.
Number of Contacts24
Number of Positions24
Operating Temperature-55?C ~ 125?C
OrientationN (Normal)
PackageBulk
PackagingBulk
Primary MaterialMetal
Primary TypeMIL/Aero
Product CategoryCircular MIL Spec Conne.
Product StatusActive
Product TypeReceptacles
Series97 Series, 97 5015, 97
Shell FinishOlive Drab Chromate ove.
Shell MaterialAluminum Alloy
Shell PlatingOlive Drab Chromate ove.
Shell Size24
Shell Size - Insert24-28
Shell Size, MIL-
Shell StyleBox Mount
ShieldingUnshielded
Strain ReliefSolid
TerminationSolder, Solder Cup
Termination StyleSolder
Tradename5015
Type5015 Commercial
Voltage Rating200 ; 250 V, 250 V, -
Wire Gauge16-22
Wire Size16

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Electronic Connector Co97-3102A-24-28S59.831In StockAMPHENOL INDUSTRIAL59.83 @ 1
thumbzoomAmazonSCB005T95QH463.591In StockAmphenol63.59 @ 1
us.rs-online.com7010827563.631726Amphenol Industrial63.63 @ 1
thumbzoomNewark02P576770.18114AMPHENOL INDUSTRIAL70.18 @ 1
AmazonTPB00KSNU6Q272.751In Stock1Amphenol72.75 @ 1
Onlinecomponents.com97-3102A-24-28S87.82183Amphenol IO87.82 @ 1
thumbzoomDigi-Key340983160.76125Amphenol Industrial Operations160.76 @ 1
thumbzoomswatee.com97-3102A2428S222.2615Amphenol222.26 @ 1
