Amphenol MS3102A22-14P

mpnMS3102A22-14P
brandname: Amphenol Industrial
manufacturername: Amphenol Industrial

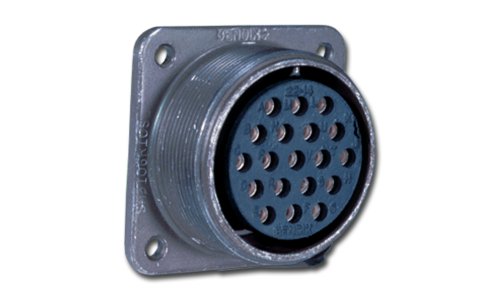

Amphenol Industrial MS3102A22-14P Circular Connector Pin, General Duty, Non-Environmental, Threaded Coupling, Solder Termination, Box Mounting Receptacle, 22-14 Insert Arrangement, 22 Shell Size, 19 Contacts

Brand: Amphenol
PartNumber: MS3102A22-14P
Model: MS3102A22-14P
Size: 22-14 Insert Arrangement
PackageQuantity: 1
Binding: Misc.
Manufacturer: Amphenol
Label: Amphenol

Attributes

Key	Value
Alternate Part No.	654-MS3102A22-14P
Amperage Rating	13A
Angle	Straight
Application	True MIL
Brand	Amphenol Industrial
Class	A
Connector Style	Receptacle
Connector Type	Circular
Contact Configuration	19#16
Contact Gender	Pin (Male)
Contact Material	Brass or Copper Alloy
Contact Mating Life	100
Contact Plating	Silver
Contact Size	19#16
Contact Style	Pin
Contact Type	Pin
Contacts Supplied	Yes
Contacts, # of	19
Current Rating	13 A
Dielectric Material	Neoprene
Export Class	EAR / EAR99
Gender	Panel Socket
Housing Finish	Olive Drab Cadmium
Housing Material	Aluminum Alloy
Housing Type	Metal
Insert Arrangement	22-14
Insert Material	Neoprene
Insert Rotation/Keying	Normal
Keyed Position	N (Normal)
Manufacturer	Amphenol
Manufacturer Part No.	MS3102A22-14P
Mating Type	Threaded
MIL Type	MIL-DTL-5015
Mounting Angle	Straight
Mounting Hole Diameter	0.12 "
Mounting Style	Panel
Mounting Type	Flange Mount, Box - Fro.
Number of Contacts	19
Number of Positions	19
Operating Temperature &.	+257 (+125) for 60 hour.
Operating Voltage AC V .	500
Operating Voltage DC	700
Orientation	Straight
Packaging	Bulk
Part # Aliases	MS31O2A22-14P
Primary Type	MIL/Aero
Product Category	Circular MIL Spec Conne.
Product Type	Receptacles
RoHS	No
Series	MS 5015, MS 5015 Series
Service Rating	A
Shell Color	Olive Drab
Shell Material	Aluminum Alloy
Shell Plating	Olive Drab Chromate ove.
Shell Size	22
Shell Style	Box Mount
Shielding	Yes
Special Features	Single Key/Keyway Shell.
Specification	MIL-DTL-5015
Strain Relief	Solid
Termination	Solder
Termination Method	Solder
Termination Style	Solder
Tradename	5015
Type	5015 MIL Spec
Voltage Rating	700 V, 500 ; 700 V
Weight (g)	61.00000
Weight (lbs)	0.13440
Wire Gauge	16-20
Wire Size	16

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
PEI-Genesis	MS3102A22-14P	14.2	1	334		Amphenol	0.1344	14.2 @ 1
Onlinecomponents.com	MS3102A22-14P	19.63	1	In Stock		Amphenol IO		19.63 @ 1
Hotenda	H1040200	25.31	1	In Stock		Amphenol Industrial		25.31 @ 1
AmazonTP	B00DEDET2A	26.38	1	In Stock	2	AMPHENOL INDUSTRIAL		26.38 @ 1
AmazonUNK	B00DEDET2A	26.38	1	In Stock		AMPHENOL INDUSTRIAL		26.38 @ 1
us.rs-online.com	70010018	44.03	1	9		Amphenol Industrial		44.03 @ 1
swatee.com	MS3102A22-14P	48.04	1	5		Amphenol		48.04 @ 1
Newark	75X2227	48.27	1	9		AMPHENOL INDUSTRIAL		48.27 @ 1
