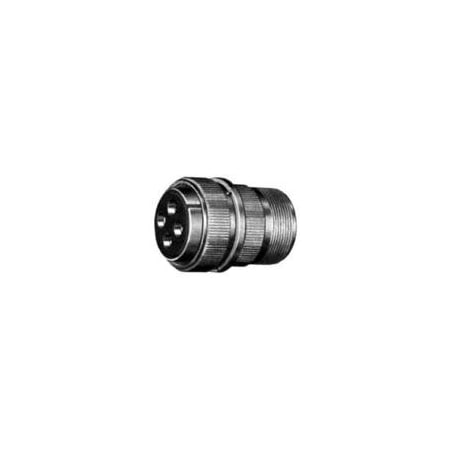

"Amphenol Industrial MS3106A28-12P connector, straight plug, class a, size 28, 26 #16 solder pin contact, olive drab"

"Amphenol Industrial MS3106A28-12P connector, straight plug, class a, size 28, 26 #16 solder pin contact, olive drab"zoom

Attributes

Key Value
Alternate Part No.654-MS3106A28-12P
AngleStraight
ApplicationTrue MIL
ApplicationsMarine, Military
Backshell Material, Pla.Aluminum Alloy, Olive D.
BrandAmphenol Industrial
Cable Opening-
ClassA
ColorOlive Drab
Connector TypePlug, Male Pins
Contact Configuration26#16
Contact Finish - MatingSilver
Contact Finish Thicknes.-
Contact GenderPin (Male)
Contact MaterialCopper Alloy
Contact PlatingSilver
Contact TypePin
Country of Origin (subj.United States
Current Rating13 A
Current Rating (Amps)-
Dielectric MaterialNeoprene
Fastening TypeThreaded
FeaturesBackshell, Coupling Nut
GenderCable Plug
Housing FinishOlive Drab Cadmium
Housing MaterialAluminum Alloy
Housing TypeMetal
Ingress Protection-
Insert Arrangement28-12
Insert MaterialNeoprene
Keyed PositionN (Normal)
ManufacturerAmphenol
Manufacturer Part No.MS3106A28-12P
Material Flammability R.-
Mating TypeThreaded
MfrAmphenol Industrial Ope.
MIL TypeMIL-DTL-5015
Mounting AngleStraight
Mounting Feature-
Mounting StyleFree Hanging
Mounting TypeFree Hanging (In-Line)
Number of Contacts26
Number of Positions26
Operating Temperature-55?C ~ 125?C
OrientationN (Normal)
PackagingBulk
Part # AliasesMS31O6A28-12P
Part StatusActive
Primary TypeMIL/Aero
Product CategoryCircular MIL Spec Conne.
Product TypePlugs
SeriesMS 5015, MS 5015 Series
Shell FinishOlive Drab Chromate ove.
Shell MaterialAluminum Alloy
Shell PlatingOlive Drab Chromate ove.
Shell Size28
Shell Size - Insert28-12
Shell Size, MIL-
Shell StyleIn-Line
ShieldingUnshielded
Special FeaturesSingle Key/Keyway Shell.
Strain ReliefSolid
TerminationSolder, Solder Cup
Termination StyleSolder
Tradename5015
Type5015 MIL Spec
Voltage Rating700 V, -, 500 ; 700 V
Wire Gauge16-20
Wire Size16

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comMS3106A28-12P43.09148Amphenol IO43.09 @ 1
thumbzoomZoroG60590714548.02In StockAmphenol Industrial Operations48.0 @ 2
HotendaH114761457.751In StockAmphenol Industrial57.75 @ 1
AmazonTPB011ONWBGC64.681In Stock1Amphenol64.68 @ 1
AmazonUNKB011ONWBGC64.681In StockAmphenol64.68 @ 1
us.rs-online.com7001008570.6614Amphenol Industrial70.66 @ 1
Newark75X256284.07166AMPHENOL INDUSTRIAL84.07 @ 1
Digi-KeyAMS3106A28-12P-ND96.691In StockAmphenol Industrial Operations96.69 @ 1
thumbzoomswatee.comMS3106A28-12P105.96118Amphenol105.96 @ 1
