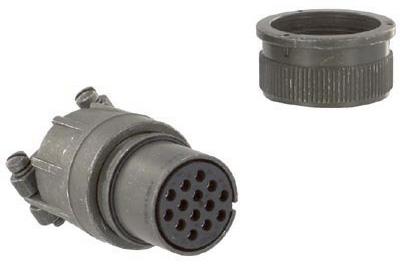

Amphenol IO MS3106F20-27S

mpnMS3106F20-27S
brandname: Amphenol Industrial
manufacturername: Amphenol Industrial

MS3106F20-27S,Conn Cylindrical Circular SKT 14 POS Solder Cup ST Cable Mount 14 Terminal 1 Port (1 Items)

Brand: Amphenol IO
PartNumber: MS3106F20-27S
Model: MS3106F20-27S
Manufacturer: Amphenol IO
Label: Amphenol IO

Attributes

Key	Value
Alternate Mfr Part Numb.	10-474620-27S
Alternate Part No.	654-MS3106F20-27S
Amperage Rating	13A
Angle	Straight
Application	True MIL
Applications	QPL or Military Specs a.
Backshell Material, Pla.	0.656" (16.66mm)
Brand	Amphenol Industrial
Cable Opening	Copper Alloy
Category	Connectors, Interconnec.
Class	F
Color	Environment Resistant, .
Connector Style	Plug
Connector Type	14, Circular
Contact Configuration	14#16
Contact Finish - Mating	Olive Drab
Contact Finish Thicknes.	Neoprene
Contact Gender	Socket (Female)
Contact Material	Copper Alloy, -
Contact Mating Life	100
Contact Plating	Silver
Contact Size	16 AWG, 14#16
Contact Style	Pin/Socket
Contact Type	Socket
Contacts Supplied	Yes
Contacts, # of	14
Current Rating	13 A
Current Rating (Amps)	-
Dielectric Material	Neoprene
Endbell Type	Cable Clamp
Export Class	EAR / EAR99
Fastening Type	N (Normal)
Features	Unshielded, Strain Reli.
Gender	Cable Plug
Grommet & Seals Material	Neoprene
Housing Finish	Olive Drab Cadmium
Housing Material	Aluminum Alloy
Housing Type	Metal
Ingress Protection	-
Insert Arrangement	20-27
Insert Material	Marine, Military, Neopr.
Insert Rotation/Keying	Normal
Keyed Position	N (Normal)
Manufacturer	Amphenol
Manufacturer Part No.	MS3106F20-27S
Material Flammability R.	Backshell, Cable Clamp,.
Mating Type	Threaded
Mfr	Amphenol Industrial Ope.
MIL Type	MIL-DTL-5015
Mounting Angle	Straight
Mounting Feature	Solder Cup
Mounting Style	Free Hanging
Mounting Type	Free Hanging (In-Line),.
Number of Contacts	14
Number of Positions	14, 20-27
Operating Temperature	Aluminum Alloy, Olive D.
Operating Temperature &.	-67 to +257 (-55 to +12.
Operating Voltage AC V .	500
Operating Voltage DC	700
Orientation	Aluminum Alloy, Straight
Package	Active
Packaging	Bulk
Part # Aliases	MS31O6F20-27S
Part Status	Plug, Female Sockets
Primary Type	MIL/Aero
Product Category	Circular MIL Spec Conne.
Product Type	Plugs
RoHS	No
Sealing	Meets IP67
Series	Bulk, MS 5015, MS 5015 .
Service Rating	A
Shell Color	Olive Drab
Shell Finish	Silver
Shell Material	Aluminum Alloy, Olive D.
Shell Plating	Olive Drab Chromate ove.
Shell Size	20
Shell Size - Insert	-
Shell Size, MIL	Free Hanging (In-Line)
Shell Style	In-Line
Shielding	Yes, -
Special Features	Environmental Resistant.
Specification	MIL-DTL-5015
Strain Relief	External
Termination	Solder, Threaded
Termination Method	Solder
Termination Style	Solder
Tradename	5015
Type	5015 MIL Spec
Voltage Rating	500 ; 700 V, 700 V, -55.
Weight (g)	128.33300
Weight (lbs)	0.28294
Wire Gauge	16-20
Wire Size	16

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Onlinecomponents.com	MS3106F20-27S	32.86	1	169		Amphenol Industrial Operations		32.86 @ 1
AmazonTP	B00KSL5RHW	36.11	1	In Stock	2	Amphenol		36.11 @ 1
PEI-Genesis	MS3106F20-27S	42.86	1	172		Amphenol	0.28294	42.86 @ 1
swatee.com	MS3106F20-27S	50.8	1	34		Amphenol		50.8 @ 1
Digi-Key	AMS3106F20-27S-ND	61.85	1	In Stock		Amphenol Industrial Operations		61.85 @ 1
us.rs-online.com	70143555	83.68	1	8		Amphenol Industrial		83.68 @ 1
Newark	85C4060	85.87	1	In Stock		AMPHENOL INDUSTRIAL		85.87 @ 1
