Amphenol PT02E-14-5P

mpnPT02E-14-5P
brandname: Amphenol Industrial
manufacturername: Amphenol Industrial

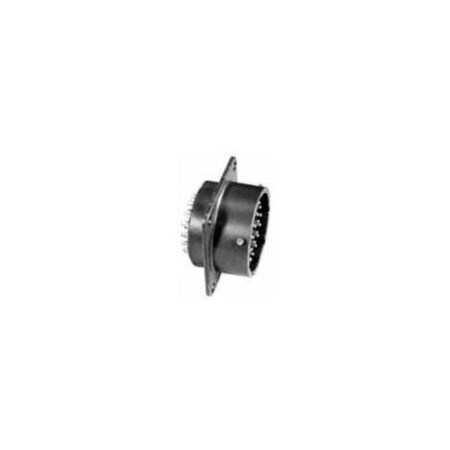

Amphenol Industrial PT02E-14-5P Circular Connector Pin, Environmental Resisting, Bayonet Coupling, Solder Termination, Box Mounting Receptacle, 14-5 Insert Arrangement, 14 Shell Size, 5 Contacts

Brand: Amphenol
PartNumber: PT02E-14-5P
Model: PT02E-14-5P
Size: 14-5 Insert Arrangement
PackageQuantity: 1
Binding: Misc.
Manufacturer: Amphenol
Label: Amphenol

Attributes

Key	Value
Agency Approvals	UL Recognized
Alternate Part No.	523-172278
Angle	Straight
Application	Commercial
Applications	Aerospace, Industrial, .
Backshell Material, Pla.	Aluminum, Olive Drab Ca.
Base Product Number	PT02E
Body Material	Brass
Body Style	Flange
Brand	Amphenol Connex
Cable Opening	-
Category	Connectors, Interconnec.
Class	E
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Configuration	5#16
Contact Finish - Mating	Gold
Contact Finish Thicknes.	-
Contact Material	Copper Alloy, Phosphor .
Contact Plating	Gold
Contact Type	Pin
Country of Origin (subj.	United States
Current Rating	13 A
Current Rating (Amps)	-
Description	CONN RCPT MALE 5P GOLD .
Detailed Description	5 Position Circular Con.
Dielectric Material	Neoprene
Digi-Key Part Number	PT02E-14-5P-ND
Fastening Type	Bayonet Lock
Features	-
Frequency Range	DC to 11 GHz
Gender	Panel Socket
Housing Finish	Olive Drab Cadmium
Housing Material	Aluminum
Housing Type	Metal
Impedance	50 Ohms
Ingress Protection	Environment Sealed

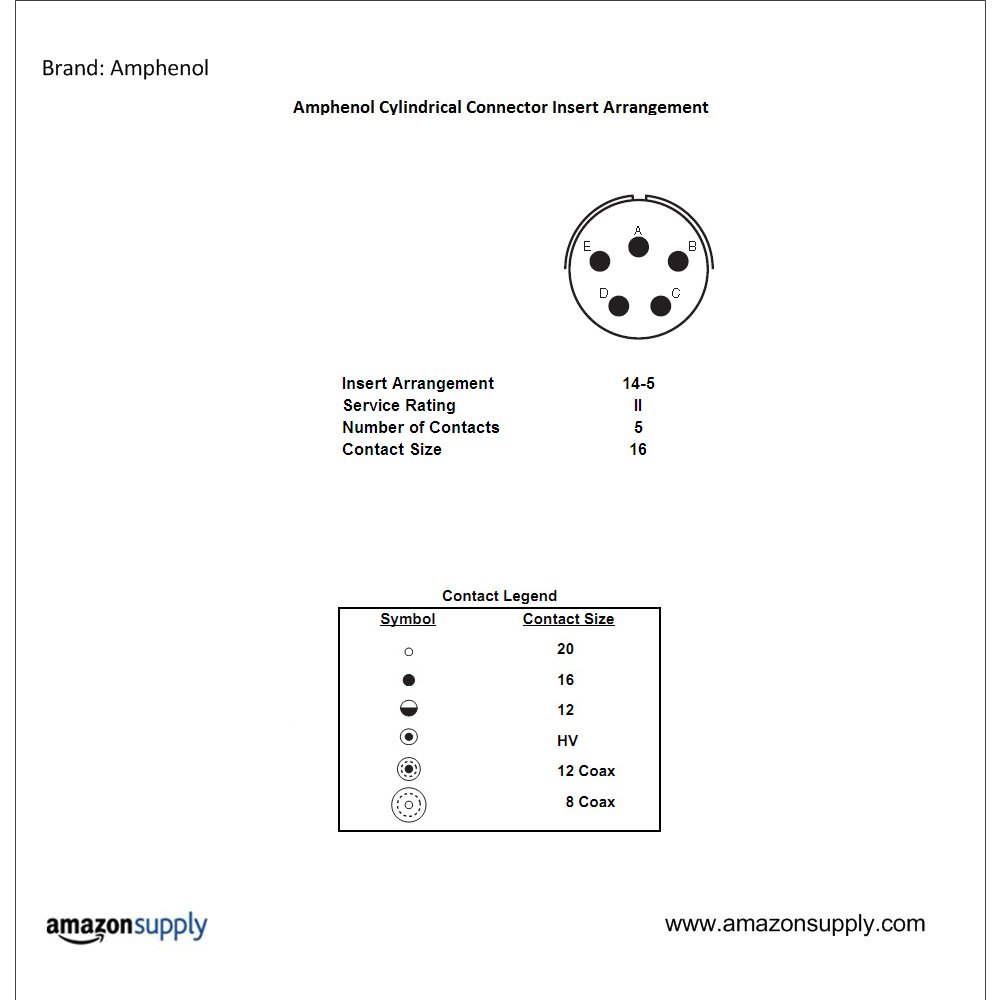

Insert Arrangement	14-5
Insert Material	Neoprene
Keyed Position	N (Normal)
Manufacturer	AMPHENOL RF, Amphenol, .
Manufacturer Part No.	172278
Manufacturer Product Nu.	PT02E-14-5P
Manufacturer Standard L.	18 Weeks
Material Flammability R.	-
Mating Type	Bayonet
Mfr	Amphenol Industrial Ope.
MIL Type	MIL-DTL-26482
Mounting Feature	Flange
Mounting Hole Diameter	0.12 "
Mounting Type	Flange Mount, Panel Mou.
Number of Contacts	5
Number of Positions	5
Operating Temperature	-55?C ~ 125?C
Orientation	N (Normal), Straight
Package	Bulk
Packaging	Bulk
Primary Material	Metal
Primary Type	MIL/Aero
Product Category	RF Adapters - In Series
Product Status	Active
RF Series	N
Series	MIL-DTL-26482 Series I,.
Shell Finish	Olive Drab Chromate ove.
Shell Material	Aluminum
Shell Plating	White Bronze
Shell Size	14
Shell Size - Insert	14-5
Shell Size, MIL	-
Shielding	Unshielded
Side 1 Gender	Jack (Female)
Side 1 Polarity	Normal
Side 2 Gender	Jack (Female)
Side 2 Polarity	Normal
Special Features	5 Key/Keyway Polarizati.
Termination	Solder, Solder Cup
Type	26482 Commercial
Unit Weight	49 g
Voltage Rating	1000 V, -
Wire Size	16

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Electronic Connector Co	PT02E-14-5P	5.6	1	In Stock		AMPHENOL INDUSTRIAL	5.6 @ 1
Onlinecomponents.com	PT02E-14-5P	11.87	1	72		Amphenol IO	11.87 @ 1
Hotenda	H1029023	13.31	1	76		Amphenol Industrial	13.31 @ 1
TTI	172278	13.45	1	141		Amphenol RF	13.45 @ 1
Newark	95AJ9491	14.55	1	In Stock		AMPHENOL INDUSTRIAL	14.55 @ 1
Mouser	523-172278	14.72	1	134		Amphenol RF	14.72 @ 1
Hawk Electronics	172278	15.0	25	In Stock		Amphenol-RF	15.0 @ 25
Radwell	172278	15.57	1	In Stock		AMPHENOL	15.57 @ 1
us.rs-online.com	70143433	17.18	1	103		Amphenol Industrial	17.18 @ 1
TME	172278	18.89	1	In Stock		AMPHENOL RF	18.89 @ 1
Digi-Key	378754	19.416	1	In Stock		Amphenol Industrial Operations	19.416 @ 1
swatee.com	172278	21.06	1	72		Amphenol	21.06 @ 1
Zoro	G205907972	21.2	3	In Stock	13	Amphenol Industrial Operations	21.2 @ 3
jensentools.com	52790.1	22.27	1	In Stock		Amphenol RF	22.27 @ 1
AmazonSC	B005T8R2UY	30.57	1	In Stock		Amphenol	30.57 @ 1
