Amphenol PT01A16-26P-SR

B00DED5QMM

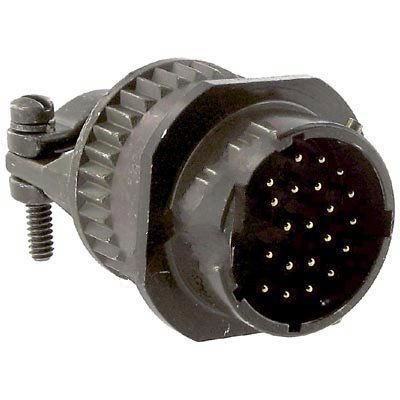

AMPHENOL INDUSTRIAL PT01A16-26P-SR Circular Connector, Miniature, Bayonet, Solder, Circular Industrial, MIL-C-26482 Series I

AMPHENOL INDUSTRIAL PT01A16-26P-SR Circular Connector, Miniature, Bayonet, Solder, Circular Industrial, MIL-C-26482 Series Izoom

Attributes

Key Value
Agency ApprovalsUL Recognized
Alternate Part No.654-PT01A-16-26P-SR
AngleStraight
ApplicationCommercial
BrandAmphenol Industrial
ClassA
Contact Configuration26#20
Contact GenderPin (Male)
Contact PlatingGold
Contact TypePin
Current Rating7.5 A
Dielectric MaterialNeoprene
FeaturesStrain Relief
GenderCable Socket
Housing FinishOlive Drab Cadmium
Housing MaterialAluminum
Housing TypeMetal
Insert Arrangement16-26
Keyed PositionN (Normal)
ManufacturerAmphenol
Manufacturer Part No.PT01A-16-26P(SR)
Mating StyleBayonet
Mating TypeBayonet
MIL TypeMIL-DTL-26482, PT/26482.
Mounting AngleStraight
Mounting StyleWire
Mounting TypeFlange Mount
Number of Contacts26
Number of Positions26
PackagingBulk
Primary TypeMIL/Aero
Product CategoryCircular MIL Spec Conne.
Product TypeReceptacles
SeriesPT 26482 I, PT Series
Shell MaterialAluminum Alloy
Shell Size16
Shell StyleIn-Line
Special Features5 Key/Keyway Polarizati.
Strain ReliefExternal
TerminationSolder
Termination StyleSolder
Tradename26482
Type26482 Commercial
Voltage Rating600 V
Wire Size20

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB00DED5QMM47.231In StockAmphenol47.23 @ 1
HotendaH114791459.091In StockAmphenol Industrial59.09 @ 1
Onlinecomponents.comPT01A-16-26P(SR)74.011In StockAmphenol IO74.01 @ 1
us.rs-online.com7001080190.2613Amphenol Industrial90.26 @ 1
swatee.comPT01A-16-26P(SR)94.0912Amphenol94.09 @ 1
thumbzoomNewark55C4660101.91In StockAMPHENOL INDUSTRIAL101.9 @ 1
