- mpn000-35025-RFX
- brandname: Amphenol RF
- manufacturername: Amphenol RF

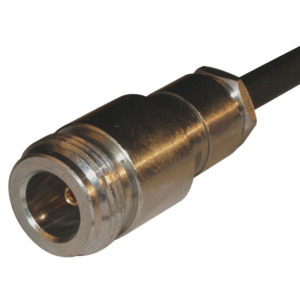

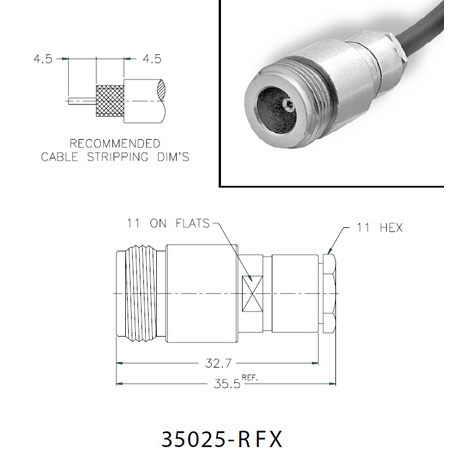

Amphenol 000-35025-RFX 50 Ohm N Connector - N CLAMP Solder (F) RG-58C/U
- Brand: Amphenol
- PartNumber: AMPH-35025-RFX
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Amphenol
- Label: Amphenol
Attributes
| Key | Value |
|---|
| Base Product Number | 000-35 |
| Body Finish | nickel |
| Body material | brass |
| Body Material | brass |
| Body plating | nickel |
| Cable Group | RG-58, 58A, 58B, 58C, 1. |
| Category | Connectors, Interconnec. |
| Center Contact Material | phosphor bronze |
| Center Contact Plating | Gold |
| Connector | plug |
| Connector Style | N Type |
| Connector Type | Jack, Female Socket |
| Contact material | phosphor bronze |
| Contact plating | gold-plated |
| Contact Termination | Solder |
| Description | CONN N JACK STR 50 OHM . |
| Detailed Description | N Type Connector Jack, . |
| Dielectric Material | Polytetrafluoroethylene. |
| Digi-Key Part Number | 000-35025-RFX-ND |
| Electrical mounting | clamp, |
| Fastening Type | Threaded |
| Features | - |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50Ohm |
| Includes | 6 pcs - 1 Connector, 1 . |
| Ingress Protection | - |
| Insertion Loss | - |
| Insulator material | PTFE |
| Kind of cable | Belden 7806A, |
| Kind of connector | female |
| Manufacturer | AMPHENOL RF |
| Manufacturer Product Nu. | 000-35025-RFX |
| Manufacturer Standard L. | 14 Weeks |
| Mating Cycles | 500 |
| Max. frequency | 11GHz |
| Mechanical durability | 500 cycles |
| Mechanical mounting | for cable |
| Mfr | AMPHENOL RF |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature | -65?C ~ 165?C |
| Operating temperature | -40...85?C |
| Package | Bulk |
| Product Status | Active |
| Series | - |
| Shield Termination | Clamp |
| Spatial orientation | straight |
| Type of connector | N |
| Wave impedance | 50? |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hawk Electronics | 000-35025-RFX | 15.8 | 100 | In Stock | | Amphenol-RF | | 15.8 @ 100 |
| us.rs-online.com | 70142326 | 21.08 | 100 | In Stock | | Amphenol RF | | 21.08 @ 100 |
 | jensentools.com | 53136.1 | 21.32 | 1 | In Stock | | Amphenol RF | | 21.32 @ 1 |
 | Digi-Key | 4746409 | 21.86208 | 100 | In Stock | | Amphenol RF | | 21.86208 @ 100 |
 | Markertek | AMPH-35025-RFX | 22.06 | 1 | In Stock | | Amphenol | | 22.06 @ 1 |
| TME | 000-35025-RFX | 30.66 | 1 | In Stock | | AMPHENOL RF | | 30.66 @ 1 |
