mpn:
brand:
manufacturer:
MPN:
Description:

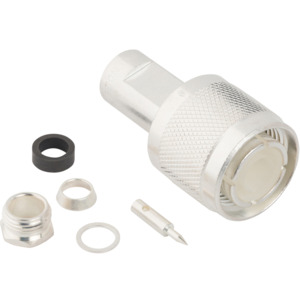

Connector; RF; HN; Straight; Cable Plug; 50 Ohm; RG-54A/U; Solder
Preferred Price:
207.0
Price:
207.0
Min Simple Price:
116.95
Absolute Min Price:
166.06
Min Price:
166.06
qty:
21
simpleSku:
jQyMjA:::082-816-1000
sku:
jQyMjA::HK:082-816-1000@y0
condition:
11
seller:
Arrow
amzMan:
amphenol rf
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Body Finish, Body plating, Center Contact Plating, Housing Color | Silver |
| Body material, Body Material, Center Contact Material, Contact material | Brass |
| Cable Group | RG-6, 6A, 54, 143, 212, Belden 1152A, 89248, 9290 |
| Cable Type | RG-54A |
| Connector | plug |
| Connector series | HN |
| Connector Style, Primary Type | HN Type |
| Connector Type | Plug, Male Pin |
| Contact plating | silver plated |
| Contact Termination, Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Electrical mounting | clamp, |
| Fastening Type | Threaded |
| Features, Insertion Loss, Mounting Feature, Series | - |
| Frequency - Max | 4 GHz |
| Frequency, Max. frequency | 4GHz |
| Impedance | 50Ohm, 50 Ohms |
| Includes | 6 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer |
| Ingress Protection | Weatherproof |
| Kind of cable | RG54 |
| Kind of connector | male |
| Manufacturer, Mfr | Amphenol RF |
| Mating Cycles | 500 |
| Mechanical durability | 500 cycles |
| Mechanical mounting | for cable |
| Mounting Type | Free Hanging (In-Line), Cable Mount |
| Number of Ports | 1 |
| Operating Temperature | -65?C ~ 165?C |
| Operating temperature | -55...85?C |
| Packaging | Bulk |
| Part Status | Active |
| Shield Termination | Clamp |
| Spatial orientation | straight |
| Type | Cable Plug |
| Type of connector | coaxial |
| Voltage Rating | 1500 V |
| Wave impedance | 50? |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow | 082-816-1000 | 116.95 | 116.95 | 1 | 35 | Amphenol | 116.95 @ Qty: 1+ | |||
| Hawk Electronics | 082-816-1000 | 129.0 | 5237.4 | 100 | In Stock | Amphenol-RF | 129.0 @ Qty: 100+ | |||
| Digi-Key | ARF3474-ND | 149.72 | 149.72 | 1 | In Stock | Amphenol RF | 149.72 @ Qty: 1+ | |||
| Radwell | 82-816-1000 | 149.87 | 149.87 | 1 | In Stock | AMPHENOL | 149.87 @ Qty: 1+ | |||
| AmazonTP | B00MEJ5YO2 | 151.17 | 151.17 | 1 | In Stock | 2 | AMPHENOL RF | 151.17 @ Qty: 1+ | ||
 | jensentools.com | 53866.1 | 160.02 | 160.02 | 1 | In Stock | Amphenol RF | 160.02 @ Qty: 1+ | ||
| us.rs-online.com | 70141995 | 161.23 | 6545.938 | 100 | In Stock | Amphenol RF | 161.23 @ Qty: 100+ | |||
 | Newark | 91B2859 | 164.01 | 164.01 | 1 | 138 | AMPHENOL RF | 164.01 @ Qty: 1+ | ||
| Mouser | 523-82-816-1000 | 167.7 | 167.7 | 1 | 49 | Amphenol | 167.7 @ Qty: 1+ | |||
| TME | 082-816-1000 | 221.75 | 221.75 | 1 | In Stock | AMPHENOL RF | 221.75 @ Qty: 1+ |
