Amphenol RF/Microwave 172329

B07PV3X888

Amphenol RF/Microwave Connector

Amphenol RF/Microwave Connectorzoom

Attributes

Key Value
Alternate Part No.654-PT02E-16-8S
Body FinishWhite Bronze
Body MaterialBrass
BrandAmphenol Industrial
Cable Group-
CategoryConnectors, Interconnec.
Center Contact MaterialPhosphor Bronze
Center Contact PlatingGold
Connector StyleN Type
Connector TypeReceptacle, Female Sock.
Contact GenderSocket (Female)
Contact PlatingGold
Contact TerminationSolder
Current Rating13 A
Dielectric MaterialPolytetrafluoroethylene.
Fastening TypeThreaded
Features-
Frequency11GHz
Frequency - Max11GHz
Housing ColorSilver
Impedance50Ohm, 50 Ohms
Includes-
Ingress Protection-

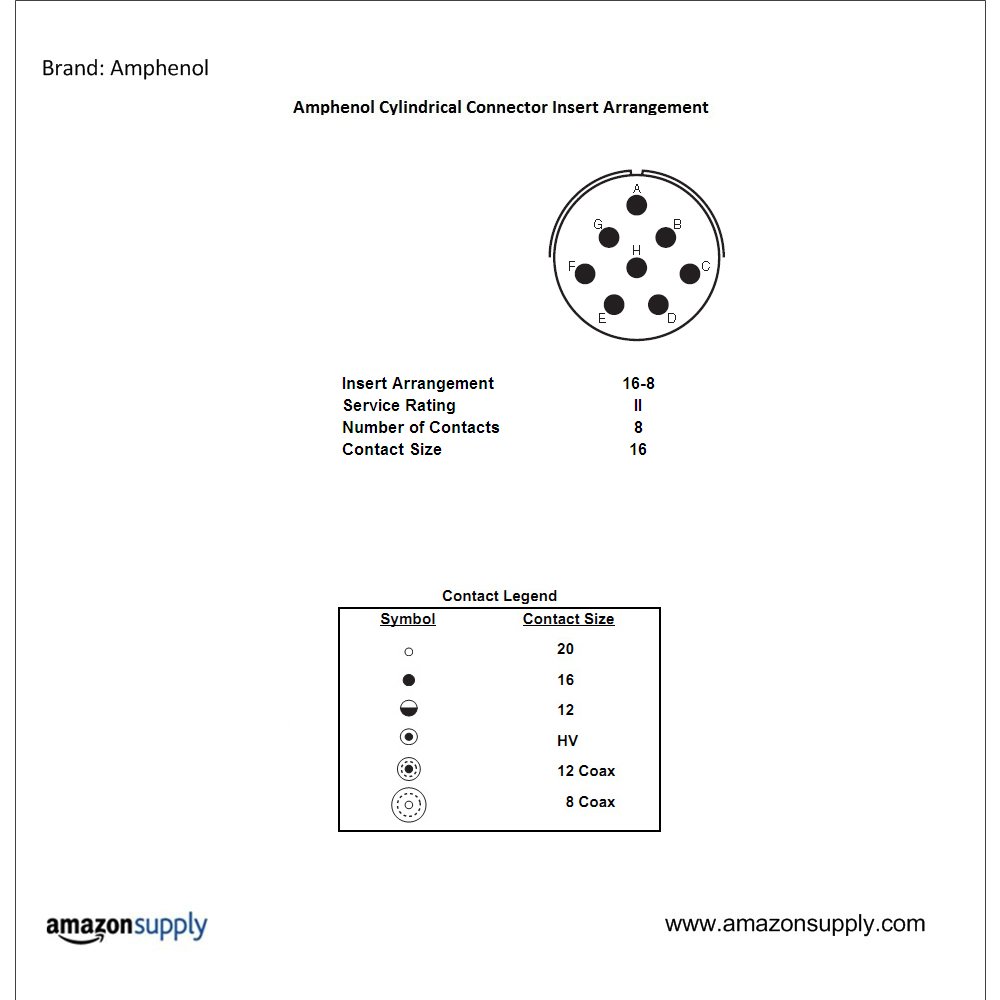

Insert Arrangement16-8
Insertion Loss0.15dB
ManufacturerAmphenol
Manufacturer Part No.PT02E-16-8S
Mating Cycles500
Mating StyleBayonet
MfrAmphenol RF
MIL TypeMIL-DTL-26482
Mounting AngleStraight
Mounting Feature-
Mounting StylePanel
Mounting TypePanel Mount, Bulkhead
Number of Ports1
Number of Positions8
Operating Temperature-65?C ~ 165?C
PackageBulk
PackagingBulk
Part # AliasesPT02E-16-08S
Part StatusActive
Primary TypeN Type
Product CategoryCircular MIL Spec Conne.
Product TypeReceptacles
SeriesPT 26482 I, -, N Series
Shell MaterialAluminum Alloy
Shell PlatingChromate over Cadmium, .
Shell Size16
Shell StyleBox Mount
Shield TerminationSolder
TerminationSolder
Termination StyleSolder
Tradename26482
TypePCB Jack
Voltage Rating1500V, 1 kV
Wire Gauge16-20

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Hawk Electronics17232916.9100In StockAmphenol-RF16.9 @ 100
Digi-KeyARF3006-ND19.651In StockAmphenol RF19.65 @ 1
Onlinecomponents.com17232919.7225In StockAMPHENOL RF19.72 @ 25
Newark89K698320.52100In StockAMPHENOL RF20.52 @ 100
thumbzoomjensentools.com52800.122.391In StockAmphenol RF22.39 @ 1
us.rs-online.com7003266422.39100In StockAmphenol RF22.39 @ 100
HotendaH107438423.061In StockAmphenol Industrial23.06 @ 1
thumbzoomAmazonSCB005T8RC2C25.771In StockAmphenol25.77 @ 1
AmazonTPB005T8RC2C30.571In Stock2Amphenol30.57 @ 1
TME17232932.791In StockAMPHENOL RF32.79 @ 1
RS Delivers872-149633.192110Amphenol Industrial33.192 @ 1
thumbzoomswatee.comPT02E-16-8S39.98119Amphenol39.98 @ 1
RadwellPT02E16-8S41.21In StockAMPHENOL41.2 @ 1
