- mpn172336
- brandname: Amphenol RF
- manufacturername: Amphenol RF

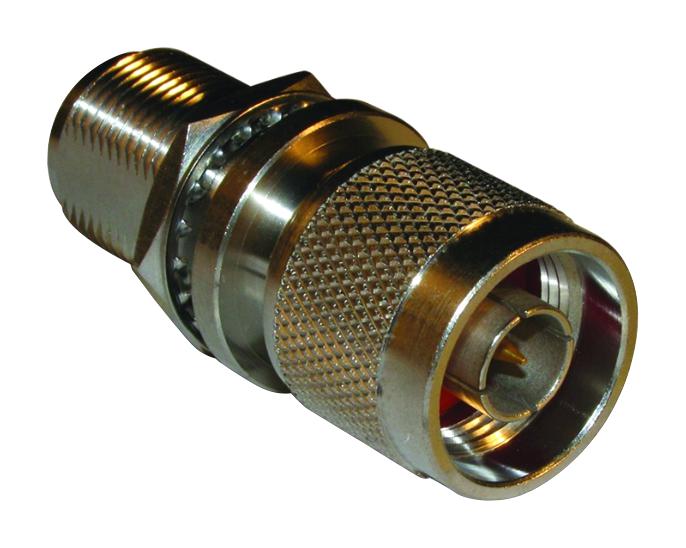

RF Adapters - In Series Adapter, N Jack to N Plug, Bulkhead, 50 Ohms
- Brand: Amphenol RF
- PartNumber: 172336
- Model: 172336
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Amphenol RF
- Label: Amphenol RF
Attributes
| Key | Value |
|---|
| Adapter Series | N to N |
| Adapter Type | In-Series, Plug to Jack |
| Alternate Part No. | 523-172336 |
| Angle | Straight |
| Application | Commercial |
| Base Product Number | 1723 |
| Body Finish | White Bronze |
| Body Material | Brass |
| Body Style | Bulkhead |
| Brand | Amphenol Connex |
| Category | Connectors, Interconnec. |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Center Gender | Female to Male |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Conversion Type | Same Series |
| Convert From (Adapter E. | N Jack, Female Socket |
| Convert To (Adapter End) | N Plug, Male Pin |
| Description | CONN ADAPT JACK TO PLUG. |
| Detailed Description | Adapter Coaxial Connect. |
| Dielectric Material | Polytetrafluoroethylene. |
| Digi-Key Part Number | ACX2154-ND |
| Fastening Type | Threaded, Threaded |
| Features | - |
| Frequency - Max | 11 GHz |
| Housing Finish | White Bronze |
| Housing Material | Brass |
| Impedance | 50Ohm, 50 Ohms |
| Includes | 4 pcs - 1 Connector, 1 . |
| Ingress Protection | - |
| Insertion Loss | - |
| Insulation Resistance | 5000 MegaOhms |
| Manufacturer | Amphenol RF, Amphenol |
| Manufacturer Part No. | 172336 |
| Manufacturer Product Nu. | 172336 |
| Manufacturer Standard L. | 14 Weeks |
| Mating Cycles | - |
| Mating Type | Threaded |
| Mfr | Amphenol RF |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount, Bulkhead |
| Operating Temperature | -65?C ~ 165?C |
| Package | Bag |
| Primary Type | In Series Adapter |
| Product Category | RF Adapters - In Series |
| Product Status | Active |
| RF Series | N |
| Series | Type N, -, N Series |
| Shell Plating | White Bronze |
| Style | Straight |
| Temperature Range | -65 to 165 C |
| Type | Jack - Plug |
| Voltage Rating | 1500 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | 172336 | 22.53 | 1 | 7 | | AMPHENOL RF | | 22.53 @ 1 |
 | Component Electronics | 124-222 | 23.08 | 1 | 1 | | Amphenol | | 23.08 @ 1 |
| Hotenda | H1025275 | 31.28 | 1 | 219 | | Amphenol RF | | 31.28 @ 1 |
| Hawk Electronics | 172336 | 32.2 | 25 | In Stock | | Amphenol-RF | | 32.2 @ 25 |
| Radwell | PT02E18-11P | 32.42 | 1 | In Stock | | AMPHENOL | | 32.42 @ 1 |
 | Newark | 54X1590 | 33.09 | 25 | In Stock | | AMPHENOL RF | | 33.09 @ 25 |
 | Digi-Key | 3868269 | 35.73 | 1 | 1756 | | Amphenol RF | | 35.73 @ 1 |
| AmazonTP | B013EXOT74 | 36.39 | 1 | In Stock | 1 | Amphenol RF | | 36.39 @ 1 |
| us.rs-online.com | 70032115 | 43.89 | 25 | In Stock | | Amphenol RF | | 43.89 @ 25 |
 | swatee.com | 172336 | 46.57 | 1 | 44 | | Amphenol | | 46.57 @ 1 |
| RS Delivers | 220-5515 | 47.1396 | 1 | In Stock | | Amphenol RF | | 47.1396 @ 1 |
 | TME | 172336 | 56.01 | 1 | In Stock | | AMPHENOL RF | | 56.01 @ 1 |
 | jensentools.com | 52801.1 | 66.14 | 1 | In Stock | | Amphenol RF | | 66.14 @ 1 |
