mpn:
brand:
manufacturer:
MPN:
Weight:
0.04
Weight:
0.04 LB
Preferred Price:
17.25
Price:
17.25
Min Simple Price:
8.613
Absolute Min Price:
12.85
Min Price:
12.85
qty:
21
simpleSku:
Dc1Njc:::242204
sku:
Dc1Njc::9J:242204@y0
condition:
11
seller:
Arrow
amzMan:
amphenol rf/microwave
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|

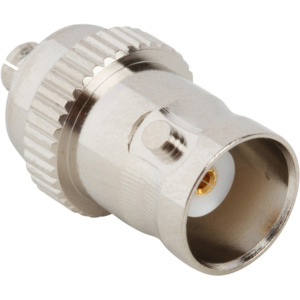

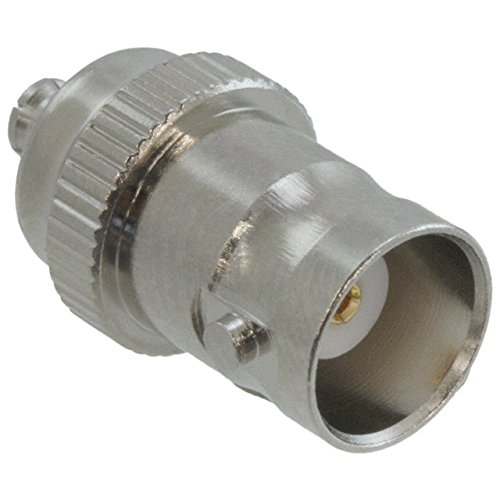

| Adapter Series | BNC to MCX |
| Adapter Style, Angle, Style | Straight |
| Adapter Type | Plug to Jack |
| Alternate Part No. | 523-242204 |
| Body Finish, Housing Finish, Shell Plating | Nickel |
| Body Material | Beryllium Copper |
| Body Material, Housing Material | Brass |
| Brand | Amphenol Connex |
| Center Contact Material, Contact Material | Phosphor Bronze |
| Center Contact Plating, Contact Plating | Gold |
| Center Gender | Female to Male |
| Connector Type | BNC MCX |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | MCX Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE), Polytetrafluoroethylene |
| Fastening Type | Bayonet Lock, Snap-On |
| Features, Includes, Ingress Protection, Insertion Loss, Mating Cycles, Mounting Feature, Series | - |
| Frequency - Max | 4 GHz |
| Frequency Range | DC to 4 GHz |
| Impedance | 50Ohm, 50 Ohms, 50 Ohms Ohms |
| Manufacturer | Amphenol |
| Manufacturer Part No. | 242204 |
| Mfr | Amphenol RF |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65?C ~ 165?C |
| Part # Aliases | 319-0423 |
| Part Status | Active |
| Primary Type, Series | Between Series Adapter |
| Product Category | RF Adapters - Between Series |
| Series | 242 Series |
| Side 1 Gender | Jack (Female) |
| Side 1 Polarity, Side 2 Polarity | Normal |
| Side 1 RF Series | BNC |
| Side 2 Gender | Plug (Male) |
| Side 2 RF Series | MCX |
| Type | Jack - Plug |
| Unit Weight | 6.700 g |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow | 242204 | 8.613 | 8.613 | 1 | 41 | Amphenol RF | 8.613 @ Qty: 1+ | |||
| Onlinecomponents.com | 242204 | 11.16 | 11.16 | 1 | 40 | AMPHENOL RF | 11.16 @ Qty: 1+ | |||
| Hawk Electronics | 242204 | 12.6 | 57.96 | 10 | In Stock | Amphenol-RF | 12.6 @ Qty: 10+ | |||
| Hotenda | H1025321 | 15.77 | 15.77 | 1 | 63 | Amphenol RF | 15.77 @ Qty: 1+ | |||
 | Digi-Key | ACX2049-ND | 16.13 | 16.13 | 1 | In Stock | Amphenol RF | 16.13 @ Qty: 1+ | ||
| Radwell | 242204 | 16.36 | 16.36 | 1 | In Stock | AMPHENOL | 16.36 @ Qty: 1+ | |||
 | jensentools.com | 52993.1 | 19.58 | 19.58 | 1 | In Stock | Amphenol RF | 19.58 @ Qty: 1+ | ||
| AmazonTP | B005T92BCW | 19.88 | 19.88 | 1 | In Stock | 2 | Amphenol Connex | 19.88 @ Qty: 1+ | ||
 | Newark | 73J7935 | 19.96 | 91.816 | 10 | In Stock | AMPHENOL RF | 19.96 @ Qty: 10+ | ||
 | swatee.com | 242204 | 22.31 | 22.31 | 1 | 17 | Amphenol | 22.31 @ Qty: 1+ | ||
| us.rs-online.com | 70032024 | 24.59 | 24.59 | 1 | 7 | Amphenol RF | 24.59 @ Qty: 1+ | |||
 | TME | 242204 | 24.95 | 24.95 | 1 | In Stock | AMPHENOL RF | 24.95 @ Qty: 1+ |
