Description:

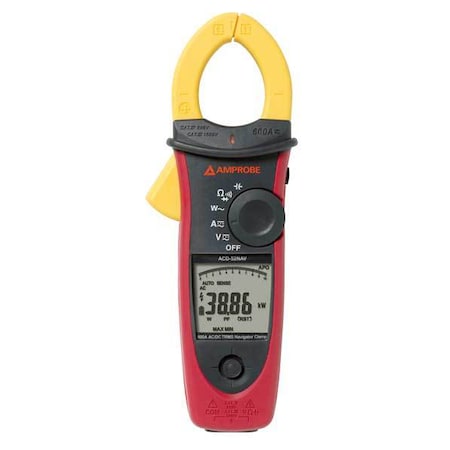

Clamp-On Power Meter, Basic AC Current Accuracy +/-1.50 Percent, Basic AC Voltage Accuracy +/-1.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.70 Percent, Batteries Included Yes, Battery Chemistry Alkaline, Battery Size AA, Battery Voltage 1,000V; 100V, Calibration Frequency 20 Hz to 10 KHz, Capacitance Measurement Accuracy +/-1.90 Percent, Counts 10,000, Display Type Backlit Digital Display, Frequency Measurement Accuracy +/-0.50 Percent
Attributes
| Key ^ | Value |
|---|---|
| Battery Size | AA |
| Calibration Frequency | 20 Hz to 10 KHz |
| Counts | 10,000 |
| Current Accuracy | +/-1.5% Rdg +5 Digits |
| Display | LCD |
| Includes | Battery, Carrying Case, Test Leads, Users Manual |
| Item | Clamp-On Power Meter |
| Jaw Opening | 1.77 in |
| Manufacturers Warranty Length | 1 yr |
| Max. AC Amps, Max. DC Amps | 600 |
| Max. AC Volts, Max. DC Volts | 1,000 |
| Max. Resistance | 100 K Ohms |
| Max. Watts | 600 kW |
| Operating Temp. Range | 32 Degrees to 122 Degrees F (0 Degrees C to 50 Degrees C) |
| Peak Capture, True RMS | Yes |
| Power Accuracy | +/-2.5% Rdg +5 Digits |
| Power Factor | -1.00 to 1.00 |
| Power Source | (2) AA Batteries |
| Safety Rating | CAT III 1000V, CAT IV 600V |
| Special Features | Flash Light for Determing Color of the Wires in the Dark, Individual Harmonics, Low pAss Filter for Variable Frequency Drives, Power, Power Factor |
| Voltage Accuracy | AC +/-1.0% Rdg +5 Digits, DC +/-0.7% Rdg +2 Digits |
