Description:

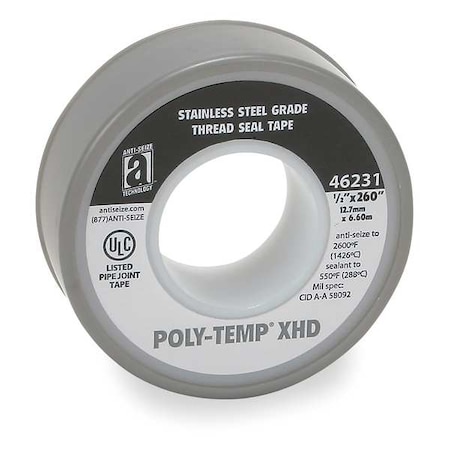

Thread Sealant Tape, Specific Sealing Application For Stainless Steel Thread Sealing, Series POLY-TEMP(R) SSG (XHD), Overall Width 1/2 in, Overall Length 21 ft, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 550 Degrees F, Maximum Operating Pressure for Liquids 10,000 psi, Maximum Operating Pressure for Gases 2,000 psi, Maximum Linear Density 1.5 g/cc, Minimum Linear Density 1.2 g/cc, Color Gray, Tape Type Pipe Thread Sealant Tape, For Maximum Thread Diameter 1/2 in
Attributes
| Key ^ | Value |
|---|---|
| Application | Acts as Sealant and Anti Seize for Stainless Steel and Stainless Steel Alloy Situations, Forms a Leak Proof Seal and Help Prevent Cross Threading on Pipe Threads |
| Backing Material | Nickel-Filled PTFE |
| Color, Color Family | Gray |
| Density | 1.2 to 1.5sg |
| For Maximum Thread Diameter, Overall Width, Width | 1/2 in |
| Gas Pressure Range | 0 to 300 psi |
| Item | Thread Sealant Tape |
| Length | 260 in |
| Liquid Pressure Range | 0 to 10,000 psi |
| Material | Nickel Filled with PTFE |
| Maximum Linear Density | 1.5 g/cc |
| Maximum Operating Pressure for Gases | 2,000 psi |
| mil Thickness | 4 mil |
| Minimum Linear Density | 1.2 g/cc |
| Operating Temperature Range | -400 Degrees F to 550 Degrees F |
| Overall W x L | 1/2 in x 21 ft |
| Overall Length | 21 ft |
| Performance Temp. Range | -400 Degrees to 550 Degrees F |
| Specific Sealing Application | For Stainless Steel Thread Sealing |
| Standards | CID A-A-58092, CSA Recognized Component, MIL SPEC T-27730A, ULC |
| Thickness | 4.0+-.05 mil |
