mpn:
brand:
manufacturer:
MPN:
Weight:
30.35
Weight:
30.35 LB
Preferred Price:
700.47
Price:
700.47
Min Simple Price:
395.75
Absolute Min Price:
561.96
Min Price:
561.96
Dimensions:
[8.0, 6.0, 5.0]
qty:
21
simpleSku:
NDAxMw:::EDSC175F4W
sku:
NDAxMw::T2:EDSC175F4W@y0
condition:
11
seller:
Dale-Electric
amzMan:
appleton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Actuator | Lever |
| Amperage Rating | 20 |
| Amperage Rating, Amps, Current | 20 A |
| Application | For Use In Classified Areas Where Ignitable Vapors, Gases Or Highly Combustible Dusts Are Present |
| Approvals | UL |
| Body Material | Iron |
| Body Material, Material | Malleable Iron |
| Brand, Manufacturer | Appleton |
| Catalog Number | EDSC175-F4W |
| Comments | Explosionproof, Dust-Ignitionproof |
| Connection Type | Thread |
| Country of Origin, Country of Origin (subject to change) | Mexico |
| Depth | 4 11/16 in |

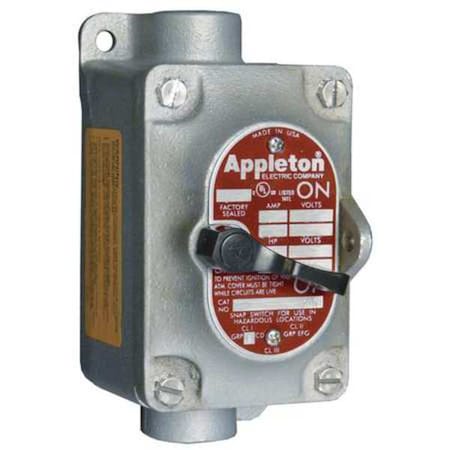

| Description: | FACTORY SEALED SWITCH UNILET |
| Dimensions | 5.38 in H x 3 in W x 4.69 in D |
| Enclosure | NEMA 7CD, 9EFG |
| Enclosure Type, Hub Style | Feed-Thru |
| Family Series | Appleton Switches, EDS Series |
| Finish | Triple Coated |
| Gross Weight, Net Weight | 0 lbs |
| Height | 4 5/8 in |
| HP | 1 hp @ 120V AC, 2 hp @ 240V AC, 1 hp @ 120 VAC, 2 hp @ 240 VAC |
| Hub Size | 3/4 ", 3/4 in |
| Item | Tumbler Switch |
| Item Number, Manufacturer Part Number, MFG Part #: | EDSC175F4W |
| Item Type | EDSC Series 1-Gang 4-Way Tumbler Switch |
| Legend Markings | On/Off |
| Made in USA | No |
| Manufacturer | Appleton Electric, Appleton Electric Co |
| Manufacturer, Supplier: | Appleton-Emerson Industrial Automation |
| Mounting, Mounting Style | Mounting Holes |
| Mounting, Mounting Type | Surface |
| NEMA Rating | NEMA 7CD/9EFG, 7C, 7D, 9E, 9F, 9G |
| Number of Gangs | 1 |
| Product Series | EDS |
| Safety Rating | Class I, Division 1, Groups B, C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III |
| Series | EDSC |
| Special Features | Corrosion Resistant, Pad Lockable in the On or Off Position, Corrosion resistant, pad lockable in the on or off position; Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; On/off legend marking; Contains standard switch and sealing chamber |
| Standard | UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Group B, As Well As Class I, Groups C And D, Class II, Groups E, F, G, And Class III |
| Standards | UL 1203, UL 894 |
| Sub Brand | UNILETS |
| Switch Type | 4-Way |
| Type | Switch, 1-Gang 4-Way Feed-Through |
| Type of Operator | Front Operated |
| UPC | 781381451031, 781381451030 |
| UPC: | 78138145103 |
| Voltage | 120-277 VAC, 120 to 277V AC |
| Voltage Rating | 120 to 277 VAC, 120 - 277 |
| Width | 3 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Dale-Electric | EDSC175F4W | 395.75 | 395.75 | 1 | In Stock | Appleton Electric Co | 395.75 @ Qty: 1+ | |||
 | gordonelectricsupply.com | EDSC175-F4W | 430.92 | 430.92 | 1 | In Stock | 380 | APPLETON | 430.92 @ Qty: 1+ | |
 | Zoro | G5936131 | 456.12 | 456.12 | 1 | In Stock | 30 | Appleton Electric | 5.8 | 456.12 @ Qty: 1+ |
| steinerelectric.com | 275729 | 498.25 | 498.25 | 1 | In Stock | Appleton? | 498.25 @ Qty: 1+ | |||
 | Galco | EDSC175F4W-APTN | 565.7 | 565.7 | 1 | In Stock | Appleton | 565.7 @ Qty: 1+ | ||
 | Platt.com | 0204921 | 593.09 | 593.09 | 1 | In Stock | Appleton | 593.09 @ Qty: 1+ | ||
| kscdirect.com | APP EDSC175F4W | 593.93 | 593.93 | 1 | In Stock | Appleton-Emerson Industrial Automation | 593.93 @ Qty: 1+ | |||
 | crescentelectric.com | 417109 | 901.31 | 901.31 | 1 | In Stock | Appleton | 901.31 @ Qty: 1+ | ||
 | Raptor Supplies | AA6DTM | 911.198925 | 911.198925 | 1 | In Stock | APPLETON ELECTRIC | 911.198925 @ Qty: 1+ |
