Appleton WSRD103542SQ

mpnWSRD103542SQ
brandname: Appleton Electric
manufacturername: Appleton Electric

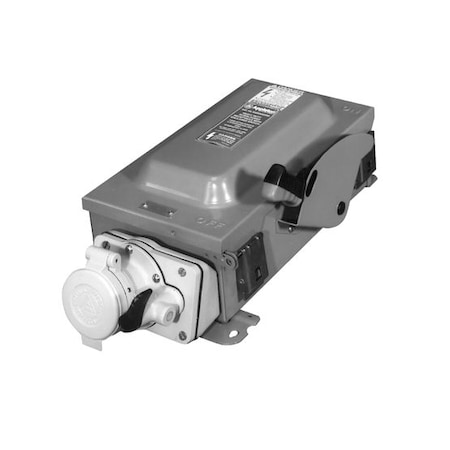

APPLETON WSRD103542SQ SQ-D RCPT NEMA12 100A Non-Fuse

Brand: Appleton
PartNumber: WSRD103542SQ
Model: CJPPB1775GMTDOW
PackageQuantity: 1
Binding: Misc.
Manufacturer: Appleton
Label: Appleton

Attributes

Key	Value
Amperage Rating	100 A
Amps	100 A
Approvals	CSA, UL
Aux/Pilot Contacts	None
Built-In Strain Relief	No
Case Material	Metallic
Category	Electrical Receptacles
Circuit Breaker Amp Rat.	Not Applicable
Circuit Breaker Type	Not Applicable
Compatible Plug Manufac.	Not Applicable
Compatible with Series	Powertite
Connection Description	Non-Fusible
Connection Type	Receptacle
Country of Origin	US
Country of Origin (subj.	United States
Current Rating	100 A
Description:	SQ-D RCPT NEMA12 100A N.
Disconnect Switch	Yes
Enclosure Lock Type	Padlockable
Family Series	Appleton Plugs & Recept.
For Maximum Cable Diame.	Not Applicable
For Minimum Cable Diame.	Not Applicable
Frequency	50-60 Hz
Frequency Rating	50/60 Hz
Fuse Protection	Non-Fused
Fuse Type	Not Applicable
Fused / Nonfused	Nonfused
Gross Weight	0 lbs
Grounding	Grounded
Handle Material	Polymer
Handle Type	Lever
Horsepower	75 hp
Horsepower Rating	100 hp
Housing Material	Sheet Metal
Housing Material Type	Metallic
HP	75 hp
Hub Type	Dead End
Item	Mechanical Interlock De.
Item Number	WSRD103542SQ
Locking Handle	Yes
Lockout-Tagout	No
Manufacturer	Appleton-Emerson Indust.
Manufacturer Part Number	WSRD103542SQ
Material	Copper Free Aluminum
Material of Construction	Enamel Coated Sheet Met.
Maximum Wire Size	Not Applicable
MFG Part #:	WSRD103542SQ
Minimum Wire Size	14 AWG
NEMA Enclosure Rating	12, 3, 3R, 4, 4X
NEMA Rating	NEMA 3R/12
Net Weight	0 lbs
Number of Gangs	1
Number of Poles	4
Number of Wires	3
Overall Depth	5.53 in
Overall Height	26.25 in
Overall Width	10.5 in
Phase	Three
Product Series	WSRD
Product Type	Mechanical Interlock De.
Resistance Properties	Corrosion Resistant
Reverse Service	Yes
Series	WSRD
Standards	CSA Certified C22.2 No..
Supplier:	Appleton-Emerson Indust.
Type	Sheet Metal Enclosure, .
UNSPSC	39121406
UPC	781381756891
UPC:	78138175689
Viewing Window	No
Voltage	600V AC, 600 V
Voltage Rating	600V AC, 600/250 VAC/VDC
Wire Connection Type	Quick-Disconnect Termin.
Wire Size	1 AWG, 1/0 AWG, 2 AWG, .
Wire Size Range	4-1/0 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
gordonelectricsupply.com	WSRD103542SQ	2043.31	1	In Stock	380	APPLETON		2043.31 @ 1
sustainablesupply.com	C1159096	2190.51	1	In Stock		Appleton Electric	12.0	2190.51 @ 1
Zoro	G3047637	2893.0	1	In Stock	25	Appleton Electric	12.0	2893.0 @ 1
steinerelectric.com	592961	3101.06	1	In Stock		Appleton?		3101.06 @ 1
Dale-Electric	WSRD103542SQ	3198.48	1	In Stock		Appleton Electric Co		3198.48 @ 1
Galco	WSRD103542SQ-APTN	3555.99	1	In Stock		Appleton		3555.99 @ 1
Platt.com	0388627	3728.13	1	In Stock		Appleton		3728.13 @ 1
kscdirect.com	APP WSRD103542SQ	3733.41	1	In Stock		Appleton-Emerson Industrial Automation		3733.41 @ 1
