Arrow AM37 HTG 10
Arrowzoom
brand:
manufacturer:
Description:

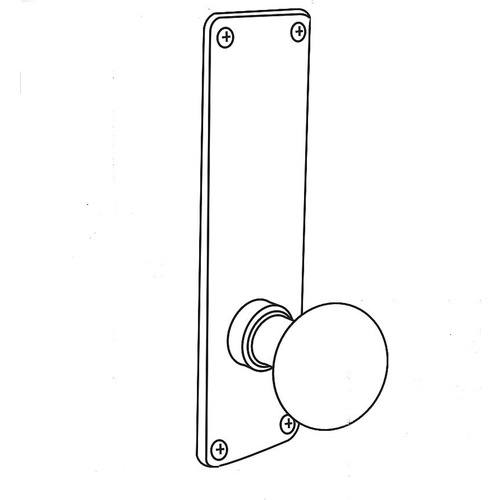

<p><b>Double Classroom Mortise Lock, HT Knob, G Escutcheon, Satin Bronze</b></p><p>Arrow mortise locks are offered in a complete range of functions designed for commercial, institutional and industrial applications. They are engineered for strength and performance, and precisely manufactured to exacting standards. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. The lock case is made from heavy gauge steel, with zinc dichromate finish for corrosion resistance and it can be re-handed without disassembling the lock case. A wide selection of trim designs and functions are offered which meet or exceed the performance requirements of ANSI Grade 1.</p><p>The AM Series is engineered for strength and performance, and manufactured to exacting standards.</p><p><p>The Arrow AM Series mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required.</p><p><p>Strike ? Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available. Keys ? Two nickel silver standard. Keying Features Available: ? Master keying ? Construction master keying ? Visual key control ? Concealed key control ? Interchangeable core (IC) - Pointe, Choice Base, Plus, and Flex</p>

Attributes

Key ^Value
ANSI FunctionF32 - Classroom Security
ApplicationComplete Lock
Base MaterialBronze
Bolt Protection3/4"
ColorSatin Bronze Clear Coated
Color Code612/US10
Cylinder TypeConventional Cylinder
Fire Rated3 Hours {A}
Function37-Classroom
GradeGrade 1
HandField Reversible
Key(s)Cut
KeyingKeyed Different
KeywayA
Lever/Knob DesignHT - Knob
Lock Face Size8" x 1-1/4"
Package Height4.5"
Package Length9.25"
Package Qty1
Package Volume239.34375
Package Width5.75"
Product Height8"
Product Length2.875"
Product Width2.25"
Rose/Escutcheon DesignG - Escutcheon
ScrewsCombination
Special MarksConventional cylinder, Fire rated 3 Hours {A}
Strike Height4-7/8"
Strike Number463
Strike TypeASA
Strike Width1-1/4"
Thickness1-3/4"
