ASHCROFT A4SBF0442D060#

mpnA4SBF0442D060#
brandname: Ashcroft
manufacturername: Ashcroft

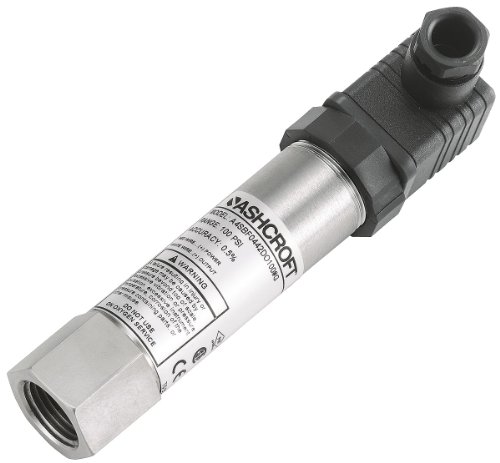

Intrinsically Safe Transducer, 0 to 60psi

Brand: ASHCROFT
PartNumber: A4SBF0442D060#
PackageQuantity: 1
Manufacturer: Ashcroft
Label: Ashcroft

Attributes

Key	Value
(hidden) product type b.	ASHCROFT A4SBF0442D060#
Accuracy	+/-0.3%
Accuracy - Transmitter	+/-0.25%
Burst Pressure	2x Range
Calibration Certificate	-
Compatible With	Any Process Compatible .
Country of Origin (subj.	United States
Electrical Connection	DIN 43650 Form A Connec.
Electrical Connections	DIN 43650-A
Electrical Connections .	4 Pin Hirschmann Style .
Enclosure Rating	IP65 ; NEMA 4X
Explosion/Fire Proof	No
Features	-
Fitting Material	Stainless Steel
For Use With	-
Housing	304 Stainless Steel
Housing Material	Stainless Steel
Includes	Instructions
Intrinsically Safe	Yes
IP Rating	IP65
Item	Pressure Transmitter
Loop Resistance	Dependent on Loop Suppl.
Manufacturers Warranty .	1 yr
Max. Pressure (PSI)	120 psi
Maximum Operating Tempe.	257 Degrees F
Maximum Pressure	60 psi
Minimum Operating Tempe.	-40 Degrees F
Minimum Pressure	0 psi
NEMA Rating	NEMA 4X
Number of Wires	2
Operating Temp.	-40 to 257 F
Operating Temp. - Trans.	-40 Degrees to 257 Deg.
Output	4 to 20 mA at 12 to 30V.
Output - Transmitter	4 to 20mA DC
Overall Height	4.45 in
Overall Width	1.06 in
Overpressure	1.5x Range
Power Required	12 to 30VDC
Power Required - Transm.	12 to 30V DC
Pressure Range	0 psi to 60 psi
Pressure Units	psi
Process Connection	1/2 in NPT Female
Process Connection Gend.	Female
Process Connection Size	1/2 in
Process Connection Size.	1/2 in
Process Connection Type	NPT
Process Connection Type.	FNPT
Product Type	Intrinsically Safe-Rate.
Range	0 to 60 psi
Range Units - Transmitt.	psi
Range Values - Transmit.	0 to 60
Response Time	2 msec
Safety Rating	Class I, II and III, Di.
Safety Rating - Transmi.	Class I, II and III, Di.
Series	A4
Standards	CE, CSA, FM, RoHS
Storage Temperature Ran.	-40 Degrees F to 257 De.
Thermal Error	+/-2% (-4 Degrees to 1.
Transmitter Type	Intrinsically Safe Pres.
Type of Pressure	Positive
Wetted Materials	316L Stainless Steel
Wetted Materials - Tran.	316L Stainless Steel
Wiring Entry	With Mating Connection
Wiring Entry - Transmit.	1/2 in FNPT

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0120032	324.29	1	In Stock	26	Ashcroft	0.55	324.29 @ 1
	Raptor Supplies	AE3GGM	810.056403	1	In Stock		ASHCROFT		810.056403 @ 1
