mpn:
brand:
name: Ashcroft
manufacturer:
MPN:
Description:

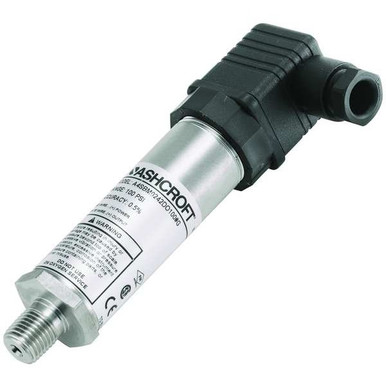

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 3,000 psi, Electrical Connections DIN 43650 Form A Connector, Output 4 to 20mA DC, Accuracy +/-0.50 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 12 to 30V DC, NEMA Rating NEMA 4X, IP Rating IP65, Series A4, Wiring Entry With Mating Connection, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F
Weight:
0.03125
Weight:
0.03125 LB
Preferred Price:
748.69
Min Offer Price:
417.73
Price:
748.69
Min Simple Price:
422.99
Absolute Min Price:
600.64
Min Price:
600.64
Dimensions:
[5.0, 4.0, 2.0]
qty:
21
simpleSku:
MDk4NA:::A4SBM0242D03000#
sku:
MDk4NA::VG:A4SBM0242D03000#@y0
condition:
11
seller:
Zoro
amzMan:
ashcroft
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Accuracy - Transmitter | +/-0.25% |
| Brand | Ashcroft |
| Compatible With | Any Process Compatible with 316 Stainless Steel |
| Current Stock | 3 |
| Electrical Connections - Transmitter | 4 Pin Hirschmann Style A DIN 43650-A Connector |
| International Shipping | No |
| Lead Time | Expected to ship in 1-2 business days |
| Manufacturers Warranty Length | 1 yr |
| Max. Pressure (PSI) | 6,000 psi |
| Mpn | A4SBM0242D03000# |
| Operating Temp. - Transmitter | -40 Degrees to 257 Degrees F |
| Output | 4 to 20 mA at 12 to 30VDC |
| Output - Transmitter | 4 to 20mA DC |
| Overall Height | 4.45 in |
| Overall Width | 1.06 in |
| Power Required - Transmitters | 12 to 30V DC |
| Process Connection | 1/4 in NPT Male |
| Process Connection Size, Process Connection Size - Transmitter | 1/4 in |
| Process Connection Type - Transmitter | MNPT |
| Range | 0 to 3000 psi |
| Range Units - Transmitter | psi |
| Range Values - Transmitter | 0 to 3000 |
| Safety Rating | Class I, II and III, Div. 1 and 2, Groups A, B, C, D, F and G |
| Safety Rating - Transmitter | Class I, II and III, Div. 1 and 2, Groups A, B, C, D, F, G |
| SKU | ZO-G0119734 |
| SubCategory | Test Instruments |
| Thermal Error | +/-2% (-4 Degrees to 185 Degrees F) |
| Transmitter Type | Intrinsically Safe Pressure Transmitter |
| UPC | 783029573723 |
| Wetted Materials - Transmitters | 316L Stainless Steel |
| Wiring Entry - Transmitter | 1/2 in FNPT |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G0119734 | 422.99 | 422.99 | 1 | 1 | Ashcroft | 0.5 | 422.99 @ Qty: 1+ | |
 | simsupply.com | ZO-G0119734 | 525.5 | 525.5 | 1 | 3 | Ashcroft | 525.5 @ Qty: 1+ | ||
 | Raptor Supplies | AE3GFE | 810.056403 | 810.056403 | 1 | In Stock | ASHCROFT | 810.056403 @ Qty: 1+ |
