ASHCROFT G17M0242CDVAC/30#

B007ICB1II

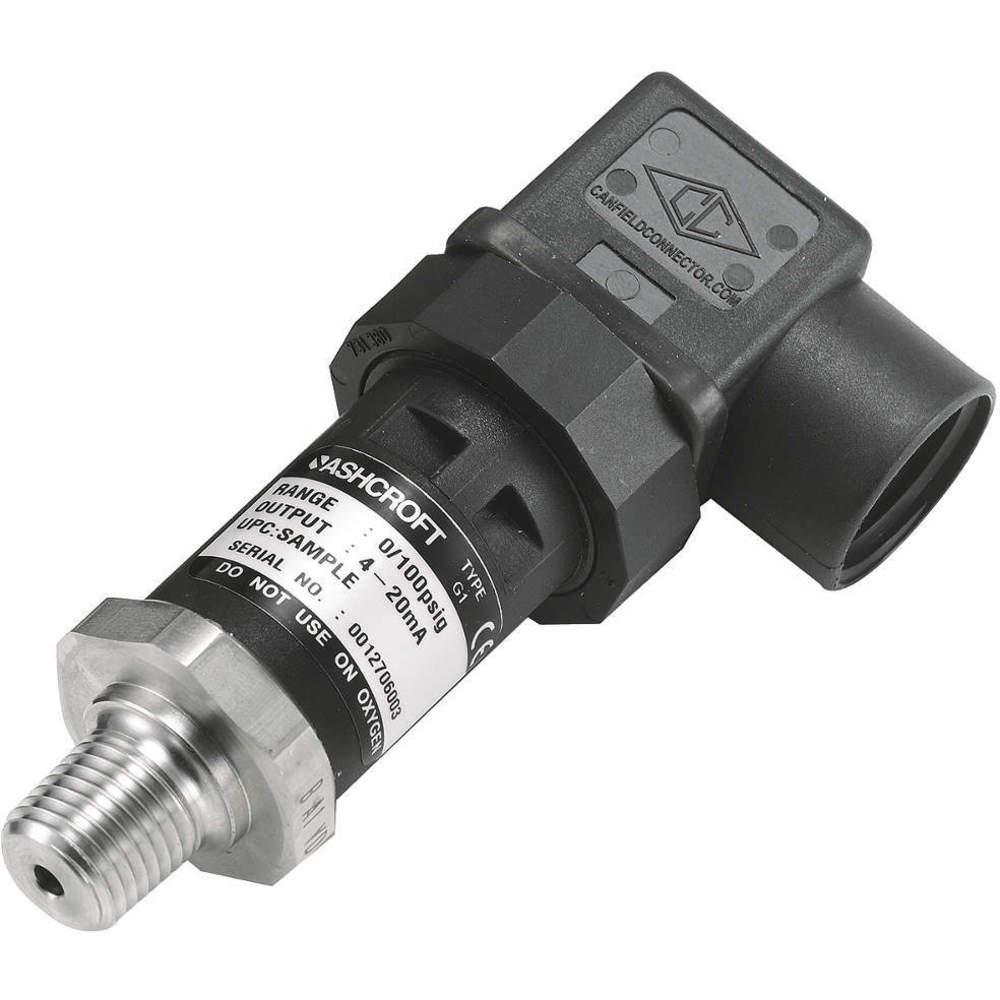

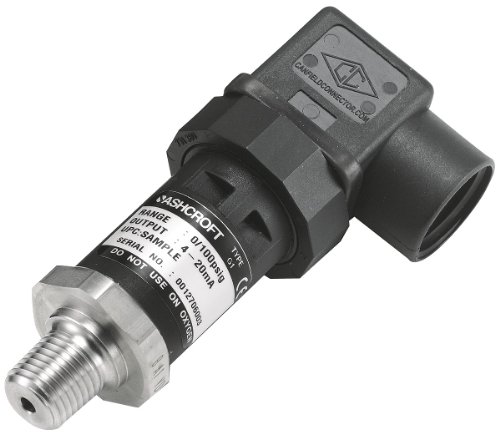

Pressure Transducer, 30 in Hg Vac to30psi

Pressure Transducer, 30 in Hg Vac to30psizoom

Attributes

Key Value
(hidden) connection bui.DIN 43650 Form A Connec.
Accuracy+/-0.5%
Accuracy - Transmitter+/-0.50% Full Scale
Burst Pressure10x Range
Calibration Certificate-
Compatible WithAny Process Compatible .
Country of Origin (subj.United States
Electrical ConnectionDIN 43650 Form A Connec.
Electrical Connections1/2" Conduit
Electrical Connections .4 Pin Hirschmann Style .
Enclosure RatingIP67 ; NEMA 4X
Explosion/Fire ProofNo
Features-
Fitting Material304 Stainless Steel
For Use With-
Housing304 Stainless Steel
Housing Material20% Glass Reinforced Ny.
IncludesInstructions
Intrinsically SafeNo
IP RatingIP67
ItemPressure Transmitter
Loop ResistanceDependent on Loop Suppl.
Manufacturers Warranty .1 yr
Max. Pressure (PSI)60 psi
Maximum Loop Resistance1,227 Ohm Max
Maximum Operating Tempe.257 Degrees F
Maximum Pressure30 psi
Minimum Operating Tempe.-40 Degrees F
Minimum Pressure-14.7 psi
NEMA RatingNEMA 4X
Number of Wires2
Operating Temp.-40 to 257 F
Operating Temp. - Trans.-40 Degrees to 257 Deg.
Operating Temperature-40 Degrees F to 257 .
Output4 to 20 mA at 12 to 30V.
Output - Transmitter4 to 20mA DC
Overpressure2x Range
Power Required9 to 36VDC
Power Required - Transm.9 to 36V DC
Pressure Range-14.7 psi to 30 psi
Pressure Unitspsi
Process Connection1/4 in NPT Male
Process Connection Gend.Male
Process Connection Size1/4 in
Process Connection Size.1/4 in
Process Connection TypeNPT
Process Connection Type.MNPT
Range30 in Hg Vac to 30 psi
Range Units - Transmitt.in Hg/psi
Range Values - Transmit.30 to 0 to 30
Response Time1 msec
SeriesG2
StandardsCE, CSA 222 6101-1, UL .
Storage Temperature Ran.-40 Degrees F to 257 De.
Thermal Error+/-3% (-4 Degrees to 1.
Transmitter TypeCompound Transmitter
Type of PressureCompound
Wetted MaterialsStainless Steel
Wetted Materials - Tran.Stainless Steel
Wiring Entry1/2 in FNPT Conduit Con.
Wiring Entry - Transmit.1/2 in FNPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0121265126.01In Stock25Ashcroft0.25126.0 @ 1
thumbzoomRaptor SuppliesAE3GQU304.5672631In StockASHCROFT304.567263 @ 1
