Description:

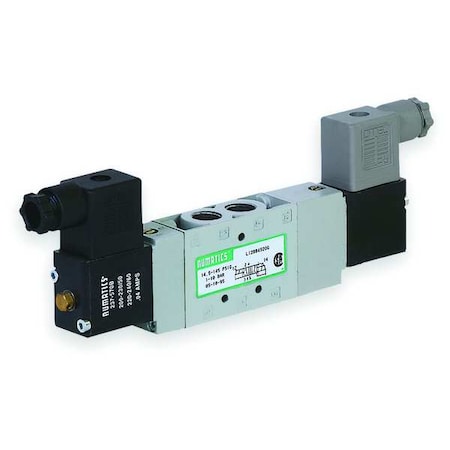

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Voltage 24V DC, Center Position Closed, Valve Actuator / Return Solenoid Air Pilot / Solenoid Air Pilot, Pipe Size 3/8 in, Max. CFM - Valves 79 cfm, Operational Pressure Range 15 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Body Style Body Ported, Pilot Port Size 3/8 in NPT, Pilot Pressure 14.5 to 150 psig, Coefficient of Volume 1.7, DIN DC Plug-In Solenoid Electrical Connections
Attributes
| Key ^ | Value |
|---|---|
| Air Valve Type | 4-Way, 3-Position |
| Body Style | Body Ported |
| Center Position | Closed |
| CFM | 79 |
| Coefficient of Volume | 1.7 |
| Electrical Connections | DIN DC Plug-In Solenoid |
| Item | Solenoid Air Control Valve |
| Max. CFM - Valves | 79.0 |
| NEMA Classification | NEMA 4 |
| Operational Pressure Range | 15 to 150 psi |
| Overall Height | 2 3/4 in |
| Overall Length | 9 5/16 in |
| Overall Width | 1 in |
| Override | Locking Flush |
| Pilot Port Size | 3/8 in NPT |
| Pilot Pressure | 14.5 to 150 psig |
| Pipe Size | 3/8 in |
| Shifting Technology | Spool & Sleeve |
| Standards | CE, CSA, UL |
| Vacuum Range | 0 to 28" Hg |
| Valve Actuator / Return | Solenoid Air Pilot / Solenoid Air Pilot |
| Valve Vacuum Range | 0 to 28 in Hg |
| Valve Ways and Positions | 4-Way/3-Position |
| Voltage | 24V DC |
