B&C Speakers 8MDN51-16

B00HE92IA0

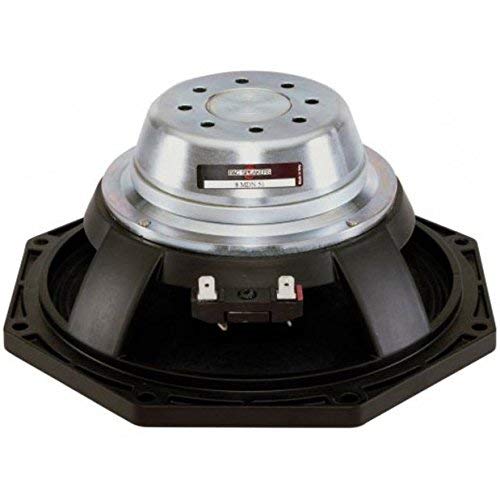

B&C 8MDN51-16 8" Professional Neodymium Woofer 16 Ohm

B&C 8MDN51-16 8" Professional Neodymium Woofer 16 Ohmzoom

Attributes

Key Value
# Mounting Holes8
Baffle Cutout Diameter7.4"
Basket / Frame MaterialCast Aluminum
BL Product (BL)17.8T?m
Bolt Circle Diameter8.3
BrandB&C Speakers
Compliance Equivalent V.0.62ft?
Cone MaterialCoated Paper
DC Resistance (Re)10?
Depth3.74"
Diaphragm Mass Inc. Air.22g
Electromagnetic Q (Qes)0.29
Frequency Response70 to 4,000Hz
Impedance16?
Magnet MaterialNeodymium
Maximum Linear Excursio.6mm
Mechanical Q (Qms)5.2
Model8MDN51-16
Nominal Diameter8"
Overall Outside Diameter8.8"
Part Number294-5913
Power Handling (MAX)400 Watts
Power Handling (RMS)200 Watts
Resonant Frequency (Fs)68Hz
Sealed F3211.7Hz
Sealed Volume0.2ft?
Sensitivity97dB 2.83V/1m
Surface Area of Cone (S.220cm?
Surround MaterialCloth
Total Q (Qts)0.27
Unit of MeasureEach
UPC848864009469
Vented F377.1Hz
Vented Volume0.55ft?
Voice Coil Diameter2"
Voice Coil FormerKapton? / Polyimide
Voice Coil Inductance (.1.25mH
Voice Coil Wire MaterialAluminum
Weight6.65
