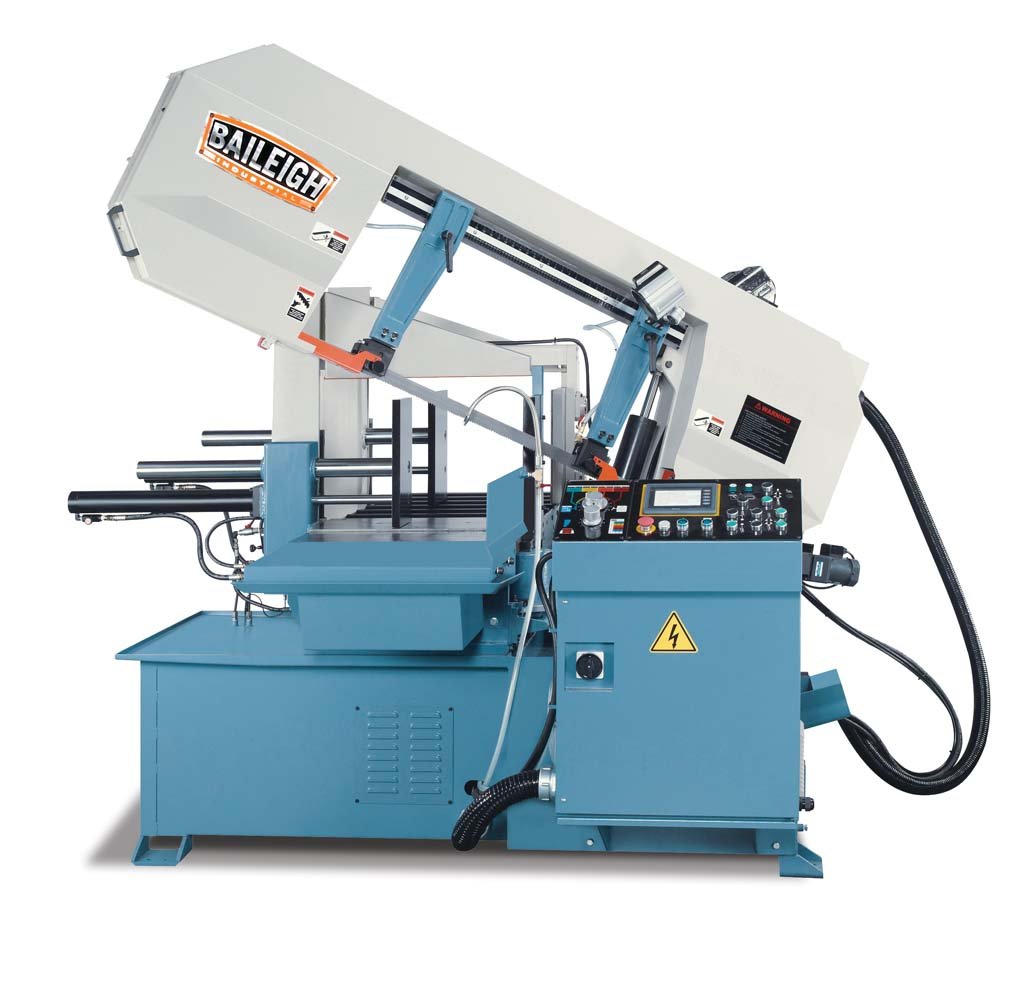

Baileigh BS-24A

Baileigh fully automatic band saw is a 220 Volts 3-phase fully automatic band saw that has an 18-inches round capacity at 90 degrees but can miter up to 45 degrees if it is needed. A Delta inverter drives an industrial sized 5 hp in order to turn the massive 1-1/2-inches blade. The inverter allows the operator to adjust speed "on the fly" from 65 to 279 feet per minute. This adjustment saves blade life as well as increases the quality of the cut. Being an automatic band saw the fully automatic band saw is at home cutting a single piece of material or complete bundles with its heavy duty hydraulic bundling device that also acts as the feed system. The feed system that is uses encoders for precise material placement. Operation of the fully automatic band saw is very simple and uses a mix of standard control knobs and buttons as well as a user friendly touch screen programmer. The programmer lets the operator input things like cuts, number of cuts, and allows different settings for each program. The standard controls are for changing things like bow height, descent and blade speed. The fully automatic band saw can be run in automatic and manual modes as well. Standard features on the automatic band saw are broken blade shut off, patented blade tension devise, and a halogen work light. Specification Return: hydraulic; Miter adjustment: swivel head; Miter Angle: 0 to 45 degree; Table height: 32.3-inches; Capacity rectangular 90 degree by 45 degree: 15-inches by 24-inches; Capacity round 90 degree by 45 degree: 18-inches by 15-inches; Chip removal: hydraulic auger; Capacity square 90 degree by 45 degree: 18-inches by 15-inches; Blade guide: carbide by roller; Blade motor: 5 hp; Blade measures: 209-27/32-inches length by 3/64-inches width by 1-1/2-inches height; Blade speed (fpm): 65 to 279 (variable speed); Material clamping bundling: hydraulic; Material feed: hydraulic; Hydraulic motor: 1 horsepower; Descent control: pressure assist hydraulic; Power: manual.
