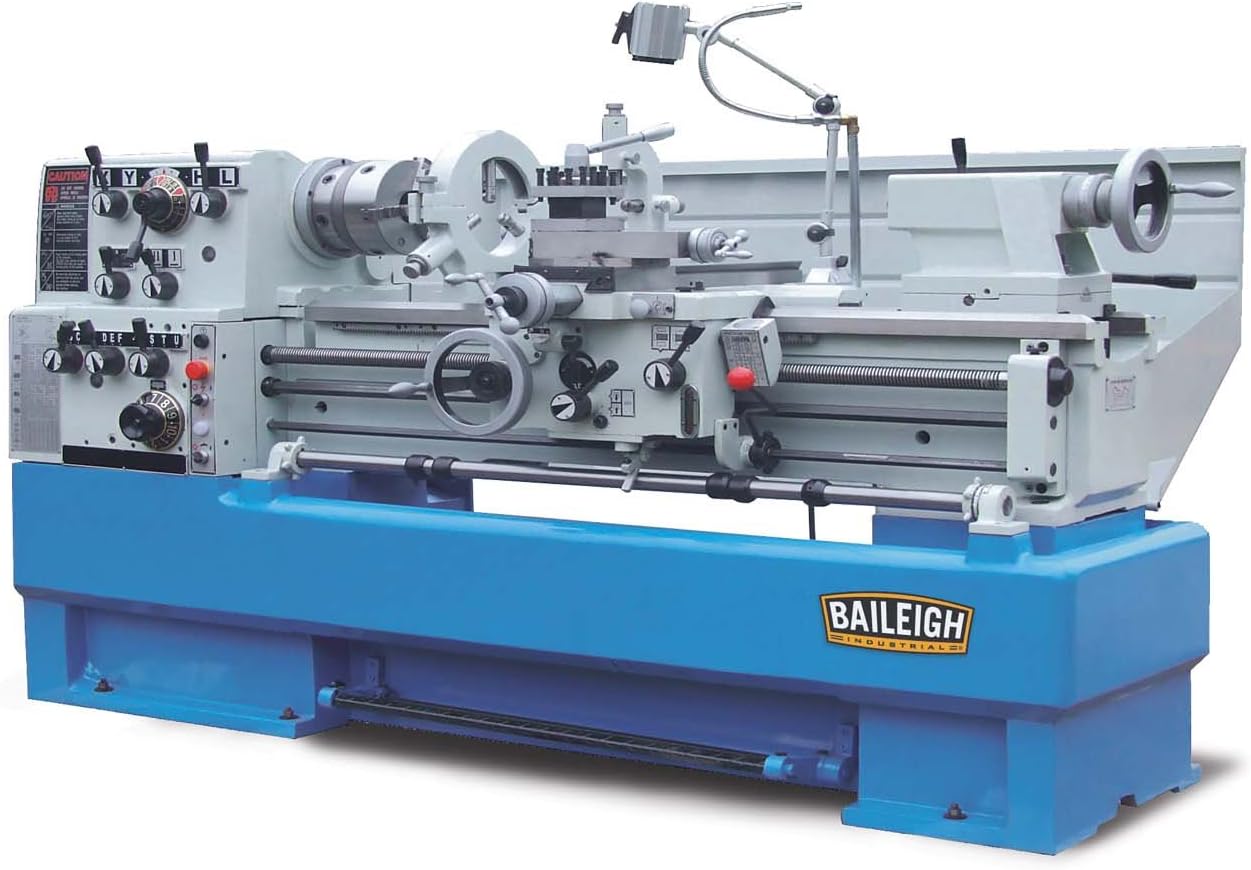

Baileigh PL-1860E

Baileigh metal lathe has a 18-inches swing and 60-inches bed and operates on 220 volts three phase power. This is the perfect lathe for those small shops or schools that need large capacity but are on a budget. But just because it is sold at a lower price doesn't mean that is without features. The massive fully cast base is built to stand up to years of use and gives great support to the main frame of the machine. All of the ways are precision ground, hardened, and then polished to ensure smooth movement. The bed is cross-ribbed for added strength and stability as well. And with 12 spindle speeds to chose from the perfect rpm for whatever you are cutting. Things like the 2 axis digital readout system, 8-inches 3-jaw universal chuck, 13-inches four jaw chuck, 8-inches back plate, coolant system, steady rest, follow rest, headstock chuck guard with micro switch, rear splash guard, and halogen work light are all included. Speed range: 25 - 2000 rpm; cross feed metric (qty/type): 42/0.014-0.784 millimeters/rev; longitudinal feed metric (qty/type): 42/0.033-1.7 millimeters/rev; longitudinal feed imperial (qty/type): 42/0.0011-inches - 0.0633-inches/rev; speed number: 12; spindle bore: 3-1/8-inches; bed width: 11.81-inches; main motor: 7.5 hp; maximum swing over bed: 18-inches; cross slide travel: 11.365-inches; power: 220 volts/3-phase; distance between centers: 60-inches.
