| Bed Width | 13-1/8" |
| Compound Travel (In.) | 4-23/32 |
| Country of Origin (subject to change) | China |
| Cross Feed Rates, Longitudinal Feed Rates | 42 |
| Cross Travel (In.) | 11-25/64 |
| Distance Between Centers | 60" |
| Distance Between Centers (In.), Hz, Number of Inch Threads, Number of Threads (In.) | 60 |
| Features | 2-Axis Digital Readout (DRO), Cast Iron and Sheet Steel Base, Cross-Ribbed Bed, Integrated Coolant System |
| Frequency | 60 Hz |
| Gap Length | 6-1/8" |
| Gap Length (In.) | 6-1/8 |
| Horsepower, Motor HP | 7-1/2 |
| Includes | (3) 8" Jaw Chucks, Follow Rest, Live Center, Quick Change Tool Holder |

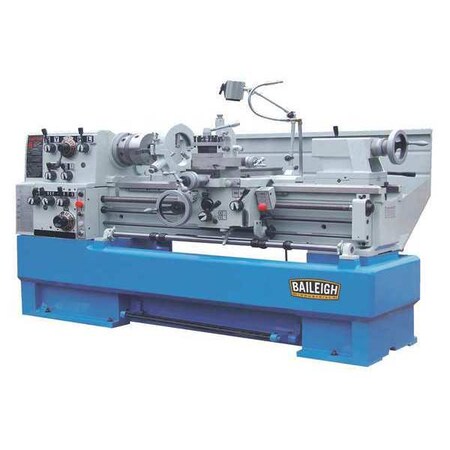

| Item | Lathe |
| Max. Metric Thread | 20.00mm |
| Max. Spindle Speed | 1800 rpm |
| Max. Threads per Inch | 72 |
| Min. Metric Thread | 0.50mm |
| Min. Spindle Speed | 25 rpm |
| Min. Threads per Inch | 1-5/8 |
| Number of Metric Threads, Number of Threads (mm) | 41 |
| Number of Spindle Speeds | 12 |
| Phase | 3 |
| Promotion Restriction | Not eligible for promotion |
| Spindle Bore | 2-1/4" |
| Spindle Bore (In.) | 2-1/4 |
| Spindle Speed (RPM) | 25 to 2000 |
| Swing In Gap | 27-1/8" |
| Swing In Gap (In.) | 27-1/8 |
| Swing Over Bed | 14 in |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide | 8-39/64" |
| Swing Over Cross Slide (In.) | 8-39/64 |
| Tailstock Taper | MT4 |
| Tailstock Travel (In.) | 4-3/4 |
| Thread Range (In.) | 2 to 112 |
| Thread Range (mm) | 0.1 to 14 |
| Voltage | 220 |
