mpn:
brand:
manufacturer:
MPN:
Description:

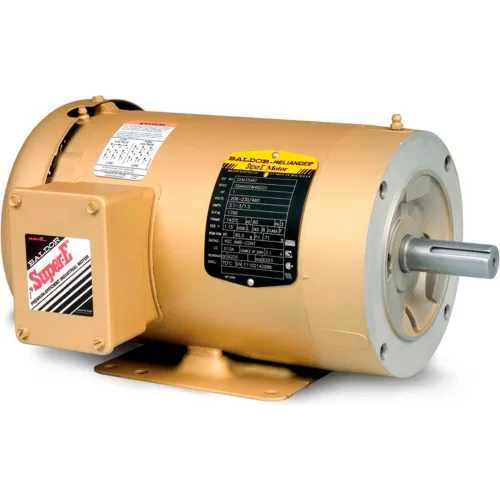

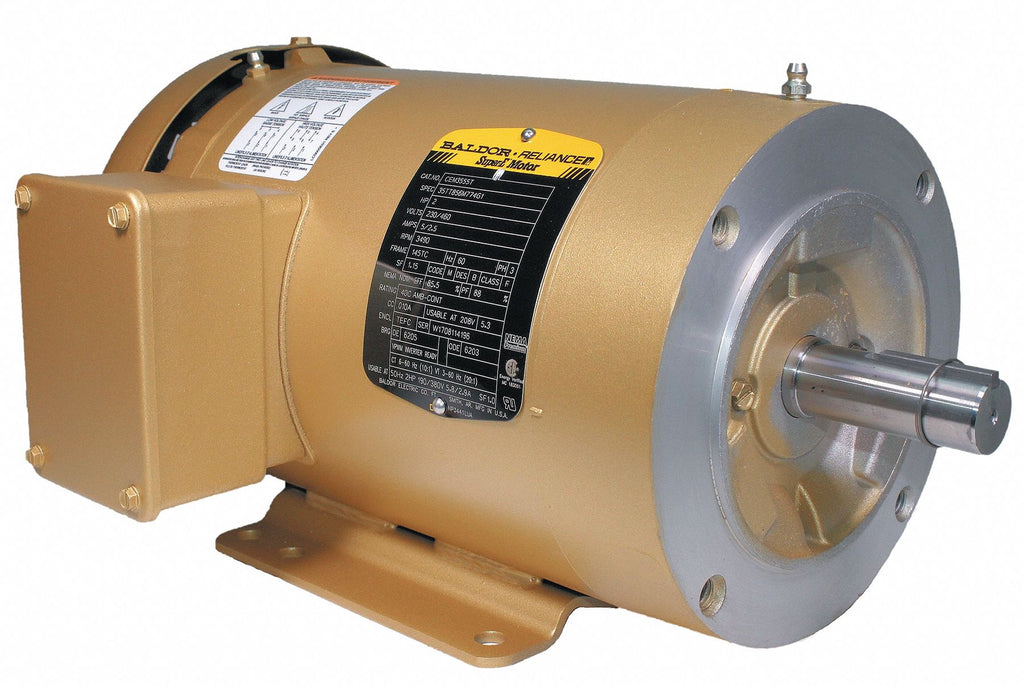

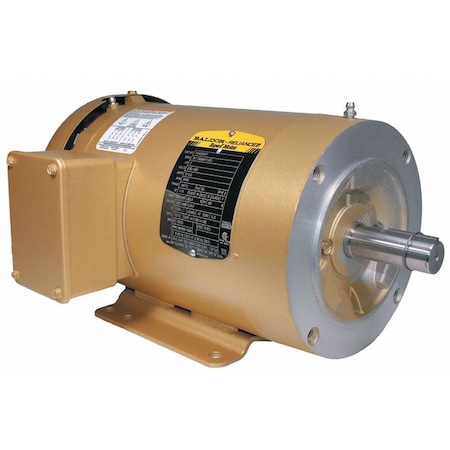

CEM3555T 2HP3490RPM3PH60HZ145TC3526MTE FCF1
Weight:
50.0
Weight:
2.879375 LB
Preferred Price:
1037.98
Min Offer Price:
691.04
Price:
1037.98
Min Simple Price:
586.43
Absolute Min Price:
832.73
Min Price:
832.73
Dimensions:
[19.0, 14.0, 13.0]
qty:
21
simpleSku:
Mzg5Nw:::CEM3555T
sku:
Mzg5Nw::NS:CEM3555T@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
baldor
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 5.3/5/2.5 |
| Application, Product Type | General Purpose |
| Bearing Type, Bearings, Motor Bearings | Ball |
| Brand | Baldor-Reliance |
| Capacitor Required, International Shipping, Inverter Duty, Usable @ 200V | No |
| CC Number | CC010A |
| Composition, Enclosure Material, Motor Frame Material | Steel |
| Construction | Cast Iron |
| Country of Origin (subject to change) | United States |
| Current Stock | 5 |
| Drive End Flange Type | C-Face |
| Duty, Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency %, Nominal Efficiency | 85.5 % |
| Enclosure | Totally Enclosed Fan Cooled |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Enclosure, Enclosure Type | TEFC |
| Estimated Weight | 44.00 |
| Family Series | Baldor Motors, M Series |
| FL Amps | 5.3-5/2.5 |
| FL Efficiency | 85.5 |
| Footnotes, No. of Speeds, Number of Speeds | 1 |
| Frame | 143TC |
| Frame Material | Rolled steel |
| Frame, NEMA Frame | 145TC |
| Full Load Amps | 5/2.5 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Gross Weight, Net Weight | 44 lbs |
| Hertz, Hz | 60 |
| Horsepower | 2 hp |
| HP | 2 |
| Includes | Conduit Box |
| Ins. Class, Insulation Class | F |
| Inverter Duty, Inverter Rated, Usable @ 208V | Yes |
| Item | General Purpose Motor |
| Item Number, Mpn, Part Number | CEM3555T |
| Length Less Shaft | 11 3/16 in |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35TT856M774G1 |
| Manufacturers Warranty Length | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor, Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection, Overload Protection | None |
| Mounting | Foot Mount, C-Face/Rigid |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 3,490 |
| NEMA Design | B |
| Nominal Voltage | 208 VAC, 240 VAC, 415 VAC, 480 VAC |
| Overall Length | 13 5/16 in, 13.29 ", 13.29" |
| Phase | 3, Three, 3 Phase |
| Product Series | M |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 3490 RPM, 3,600 RPM |
| RPM Group | 3001-3600 |
| RPM Range | 3,001-3,600 |
| RPM, Speed (RPM) | 3490 |
| Series | Super-E Series |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 0.875" |
| Shaft Length | 2 3/16 in |
| Ship Weight | 44 lbs. |
| SKU | ZO-G7840113 |
| Standards | CSA, CSA EEV, UR |
| SubCategory | Motors/Ac Motors |
| UPC, UPC Code | 781568542842 |
| Voltage | 208V, 230V, 460V, 230/460V AC |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Voltage, Volts | 230/460 |
| Weight | 44 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | electricmotorwholesale.com | CEM3555T | 586.43 | 586.43 | 1 | In Stock | Baldor | 44.0 | 586.43 @ Qty: 1+ | |
| steinerelectric.com | PDW~7285115 | 732.0 | 732.0 | 1 | In Stock | Baldor-Reliance | 732.0 @ Qty: 1+ | |||
 | MRO Supply | 699255 | 740.09 | 740.09 | 1 | In Stock | Baldor | 740.09 @ Qty: 1+ | ||
 | emotorpro.com | CEM3555T | 777.1 | 777.1 | 1 | In Stock | Baldor | 44.0 | 777.1 @ Qty: 1+ | |
 | Galco | CEM3555T-BLDR | 863.44 | 863.44 | 1 | In Stock | Baldor | 44.0 | 863.44 @ Qty: 1+ | |
 | Walker Industrial | CEM3555T | 863.44 | 863.44 | 1 | In Stock | Baldor | 863.44 @ Qty: 1+ | ||
| motorsandcontrol.com | CEM3555T | 899.41 | 899.41 | 1 | In Stock | Baldor Reliance | 44.0 | 899.41 @ Qty: 1+ | ||
 | Purvis | CEM3555T | 910.47 | 910.47 | 1 | In Stock | Baldor-Reliance | 910.47 @ Qty: 1+ | ||
 | Global Industrial | WBB909554 | 927.0 | 927.0 | 1 | In Stock | 15 | Baldor-Reliance | 927.0 @ Qty: 1+ | |
 | Zoro | G7840113 | 952.44 | 952.44 | 1 | In Stock | Baldor-Reliance | 46.07 | 952.44 @ Qty: 1+ | |
 | apexindustrialautomation.com | CEM3555T | 996.28 | 996.28 | 1 | 1 | Baldor-Reliance | 996.28 @ Qty: 1+ | ||
 | pumpproducts.com | CEM3555T | 1023.0 | 1023.0 | 1 | In Stock | Baldor | 1023.0 @ Qty: 1+ | ||
 | cbtcompany.com | CEM3555T | 1023.18 | 1023.18 | 1 | In Stock | Baldor Reliance | 1023.18 @ Qty: 1+ | ||
| us.rs-online.com | 71943921 | 1079.29 | 1079.29 | 1 | 1 | Baldor-Reliance | 1079.29 @ Qty: 1+ | |||
 | simsupply.com | ZO-G7840113 | 1104.87 | 1104.87 | 1 | 5 | Baldor-Reliance | 1104.87 @ Qty: 1+ | ||
| kirbyrisk.com | 2483013 | 1132.14 | 1132.14 | 1 | In Stock | Baldor | 1132.14 @ Qty: 1+ | |||
 | sustainablesupply.com | C2757433 | 1270.03 | 1270.03 | 1 | In Stock | Baldor Electric | 46.07 | 1270.03 @ Qty: 1+ | |
 | Raptor Supplies | AJ6PNL | 1476.064044 | 1476.064044 | 1 | In Stock | BALDOR MOTOR | 1476.064044 @ Qty: 1+ |
