Description:

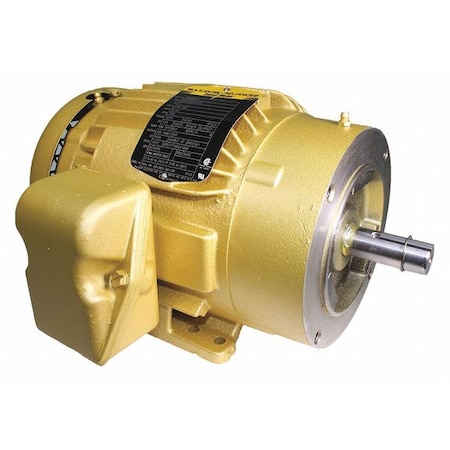

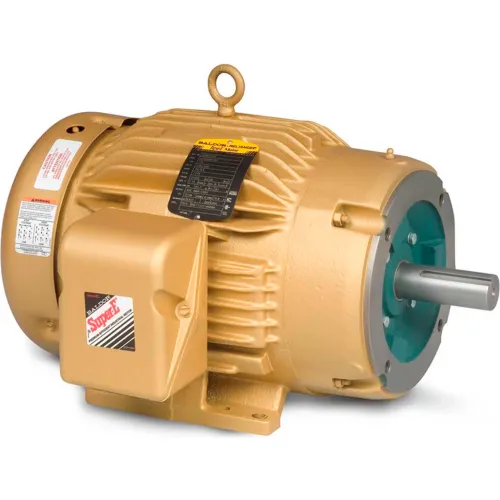

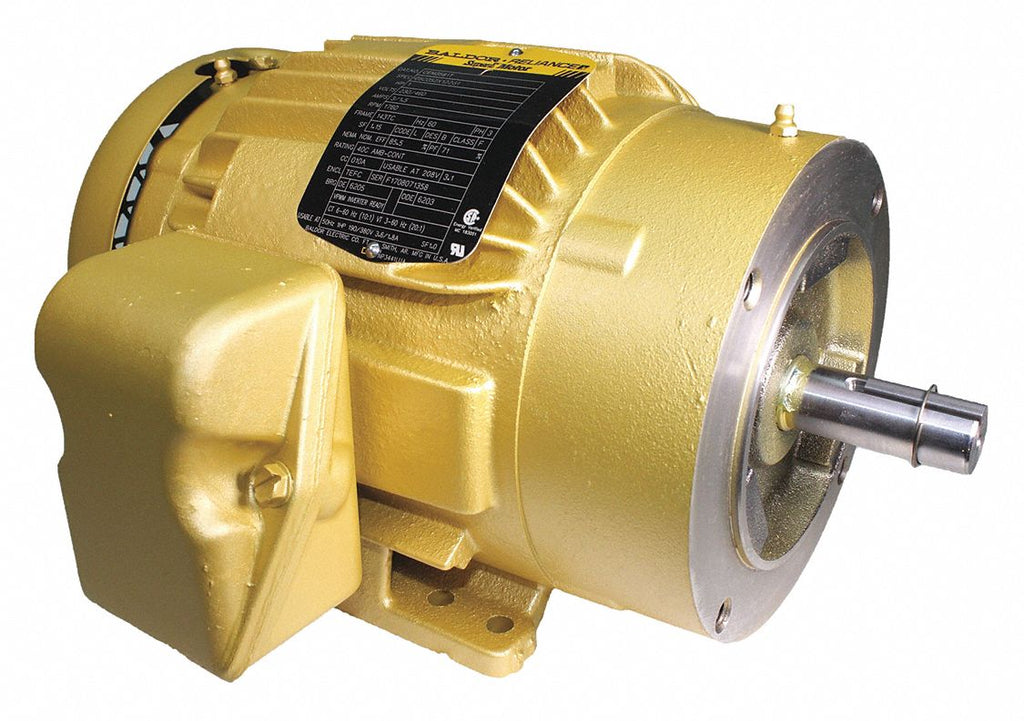

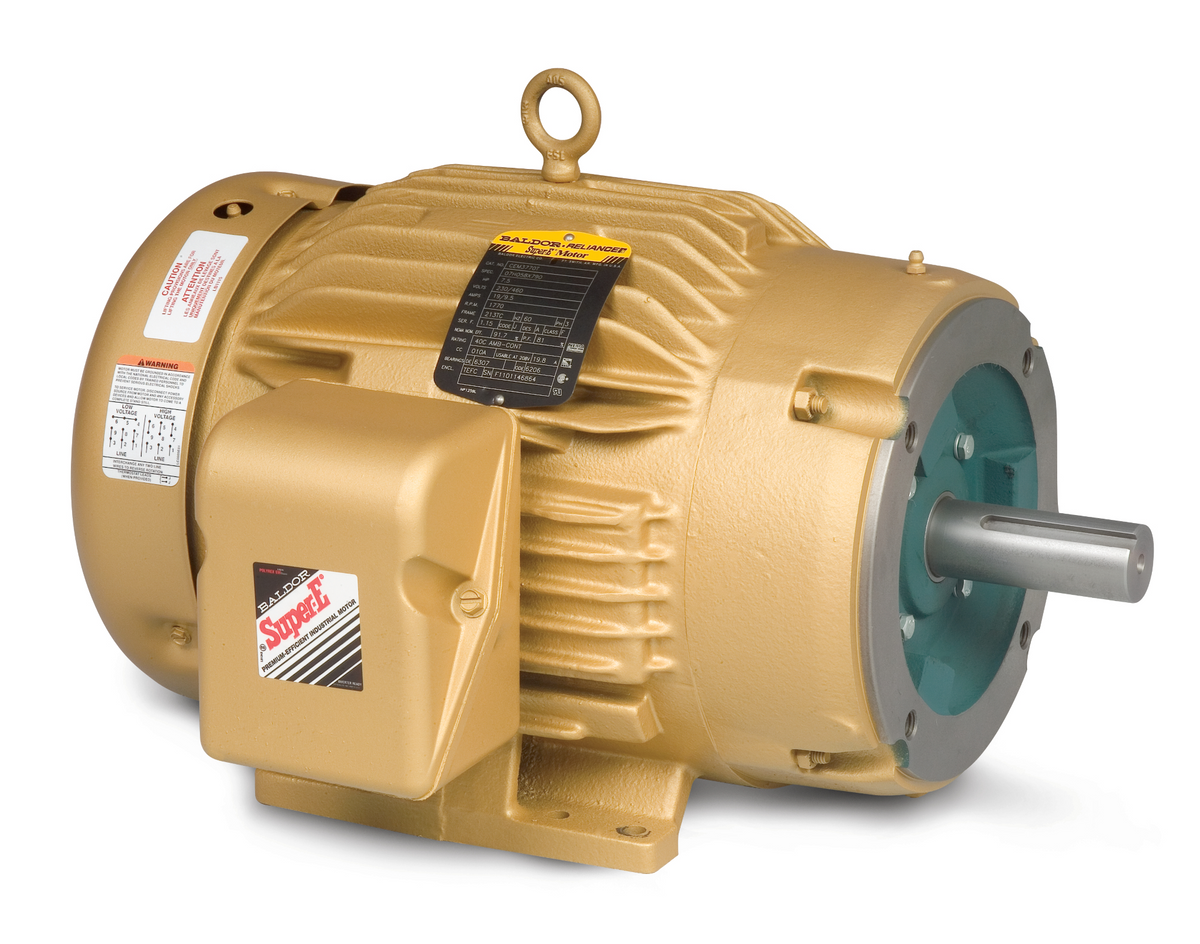

CEM3581T 1HP 1750RPM 3PH 60HZ 143TC 0524M TEFC F1
Weight:
56.0
Weight:
56.0 LB
Preferred Price:
1217.97
Price:
1217.97
Min Simple Price:
688.51
Absolute Min Price:
976.99
Min Price:
976.99
Dimensions:
[14.0, 11.0, 8.0]
qty:
21
simpleSku:
jkwNTE:::CEM3581T
sku:
jkwNTE::IK:CEM3581T@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
baldor
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Amps | 3.1/3/1.5 |
| Application | General Purpose |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency % | 85.5 % |
| Enclosure | TEFC, Totally Enclosed Fan Cooled |
| Enclosure Material | Iron |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled), TEFC |
| Estimated Weight | 54.00 |
| Family Series | Baldor Motors, M Series |
| FL Amps | 3.1-3/1.5 |
| FL Efficiency | 85.5 |
| Frame | 143TC |
| Gross Weight | 56 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Includes | Conduit Box |
| Insulation Class | F |
| Inverter Duty | Yes, No |
| Item | General Purpose Motor |
| Item Number | CEM3581T |
| Length Less Shaft | 10 15/16 in |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 05C052X508G1 |
| Manufacturer Part Number | CEM3581T |
| Manufacturers Warranty Length | 3 yr |
| Maximum Ambient Temperature | 40? C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, C-Face/Rigid |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 1,760 |
| NEMA Frame | 143TC |
| Net Weight | 56 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 VAC, 480 VAC |
| Number of Speeds | 1 |
| Overall Length | 13.03 ", 13 in, 13.03" |
| Overload Protection | None |
| Part Number | CEM3581T |
| Phase | 3, 3 Phase |
| Product Series | M |
| Product Type | General Purpose, Three Phase |
| Rotation | Reversible |
| RPM | 1,800 RPM, 1760, 1700 - 1800, 1760 RPM |
| RPM Range | 1,701-1,800 |
| Series | Super-E Series |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 0.875" |
| Shaft Length | 2 3/16 in |
| Ship Weight | 54 lbs. |
| Speed (RPM) | 1760 |
| Standards | CSA, CSA EEV, UR |
| UPC Code | 781568134160 |
| Voltage | 208V, 230V, 460V, 208-230/460V AC, 230/460 |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Volts | 230/460 |
