Baldor ECP4411T-4
Baldorzoom

Baldor ECP4411T-4

mpn:
ECP4411T-4
brand:
Baldor
manufacturer:
Baldor
MPN:
ECP4411T-4
Description:

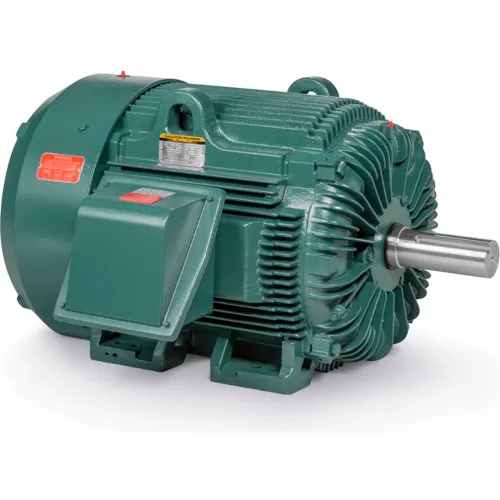

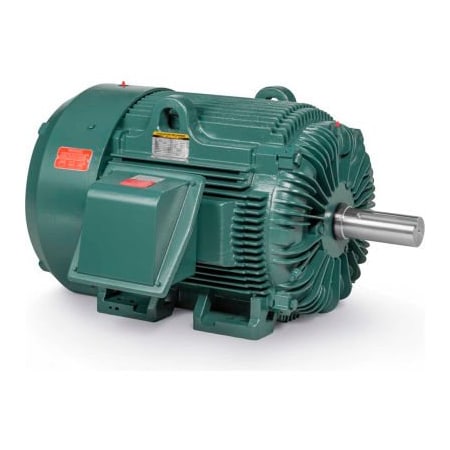

The ECP4411T-4 is produced by Baldor and is described as a ECP4411T-4 125HP, 1188RPM, 3PH, 60HZ, 445T, A44090M, TEFC
Weight:
2146.0
Weight:
2156.0 LB
Preferred Price:
26622.49
Price:
26622.49
Min Simple Price:
15040.96
Absolute Min Price:
21358.16
Min Price:
21358.16
Dimensions:
[50.0, 35.0, 30.0]
qty:
21
simpleSku:
MjUxNw:::ECP4411T-4
sku:
MjUxNw::PW:ECP4411T-4@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
baldor
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amps, FL Amps146
Bearing TypeRe-Greasable
BearingsBall
Composition, ConstructionCast Iron
Country of Origin (subject to change)United States
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency95.0%
Efficiency %95 %
EnclosureTEFC, Totally Enclosed Fan Cooled
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Estimated Weight2146.00
Family SeriesBaldor Motors, CP Series
FL Efficiency95
Frame, NEMA Frame445T
Gross Weight1874 lbs
Hertz, Hz60
Horsepower125 hp
HP125
Insulation ClassF
Inverter DutyYes, No
Item Number, Manufacturer Part Number, Part NumberECP4411T-4
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #P44G3941
Maximum Ambient Temperature40? C
MountingFoot Mount, Rigid
Mounting TypeFoot Mount, Rigid
Net Weight2146 lbs
Nominal Voltage415 VAC, 480 VAC
Number of Poles6
Number of Speeds1
Overall Length44.75", 44.75 "
Phase3
Product SeriesCP
Product TypeSevere Duty & IEEE 841, Three Phase
RotationReversible
RPM1190, 1100 - 1200, 1,200 RPM
Service Factor1.15
Shaft Diameter3.375"
Ship Weight2119 lbs.
Speed (RPM)1188
Voltage460V
Voltage (AC)460 VAC
Voltage, Volts460

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomelectricmotorwholesale.comECP4411T-415040.9615040.961In StockBaldor1874.015040.96 @ Qty: 1+
AmazonTPB0042G74PW18436.9518436.951In Stock10Baldor18436.95 @ Qty: 1+
thumbzoomemotorpro.comECP4411T-419990.3619990.361In StockBaldor2119.019990.36 @ Qty: 1+
factorysupplyoutlet.comCM25HM21898.1521898.151In StockBaldor-Reliance21898.15 @ Qty: 1+
thumbzoomgalesburgelectric.comECP4411T-422119.3422119.341In StockBaldor22119.34 @ Qty: 1+
thumbzoomGalcoECP4411T-4-BLDR22119.3522119.351In StockBaldor2146.022119.35 @ Qty: 1+
thumbzoomWalker IndustrialECP4411T-422119.3522119.351In StockBaldor22119.35 @ Qty: 1+
thumbzoomGlobal IndustrialWBB38775122120.022120.01In StockBaldor-Reliance22120.0 @ Qty: 1+
motorsandcontrol.comECP4411T-423040.9823040.981In StockBaldor Reliance2146.023040.98 @ Qty: 1+
thumbzoomPurvisECP4411T-423351.9523351.951In StockBaldor-Reliance23351.95 @ Qty: 1+
thumbzoomapexindustrialautomation.comECP4411T-425522.3225522.3211Baldor-Reliance25522.32 @ Qty: 1+
motionindustries.com0054135935065.3135065.311In StockBaldor-Reliance35065.31 @ Qty: 1+
thumbzoomZoroG00493549737365.5837365.581In Stock9Baldor-Reliance37365.58 @ Qty: 1+
thumbzoompumpproducts.comECP4411T-439341.5139341.511In StockBaldor39341.51 @ Qty: 1+
B0042G74PW
Baldor ECP4411T-4

BALDOR ECP4411T-4 Three Phase, Totally Enclosed, Foot Mounted, Severe Duty Motor, 125 hp, 1188 RPM, 3PH, 60 Hz, 445T, A44090M, TEFC, 460V, Steel

BALDOR ECP4411T-4 Three Phase, Totally Enclosed, Foot Mounted, Severe Duty Motor, 125 hp, 1188 RPM, 3PH, 60 Hz, 445T, A44090M, TEFC, 460V, Steelzoom
