mpn:
brand:
manufacturer:
MPN:
Description:

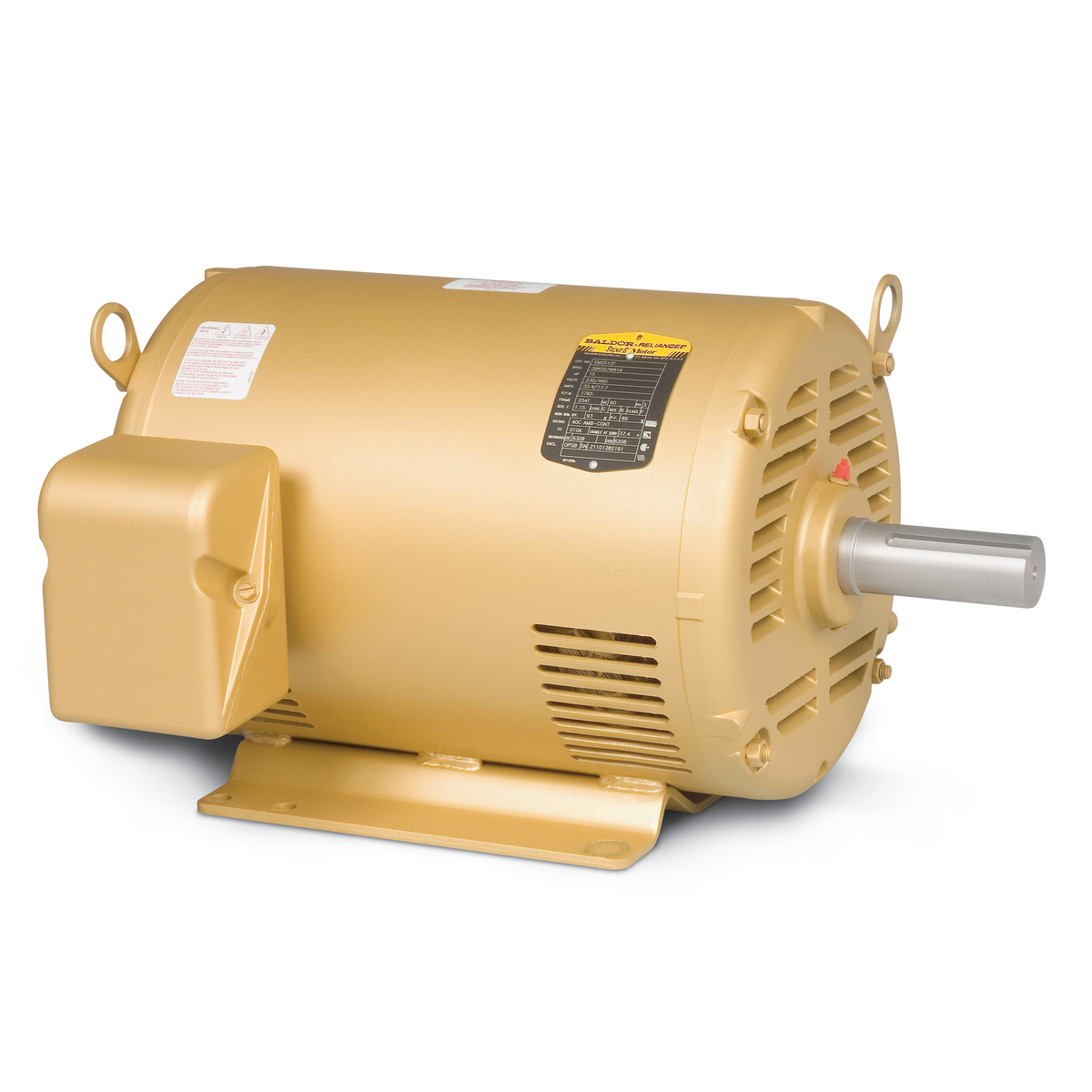

The EM3155T-BG is produced by Baldor and is described as a EM3155T-BG 2HP, 3450RPM, 3PH, 60HZ, 143T, 3524M, OPSB, F1
Weight:
43.0
Weight:
2.6875 LB
Preferred Price:
1465.75
Price:
1465.75
Min Simple Price:
828.11
Absolute Min Price:
1175.91
Min Price:
1175.91
Dimensions:
[12.0, 1.0, 1.0]
qty:
21
simpleSku:
jkwNTE:::EM3155T-BG
sku:
jkwNTE::3G:EM3155T-BG@y0
condition:
11
seller:
emotorpro.com
amzMan:
baldor
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 5.6/5/2.5 |
| Application | HVAC |
| Approvals | CSA, CSA EEV, UR |
| Bearing Type, Bearings | Ball |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency % | 85.5 % |
| Efficiency, FL Efficiency | 85.5% |
| Enclosure | Open, Open Slotted Band |
| Enclosure Material | Steel |
| Enclosure Type | OPSB (Open Slotted Band) |
| Enclosure, Enclosure Type | OPSB |
| Estimated Weight | 43.00 |
| Family Series | Baldor Motors |
| FL Amps | 5.6 A @ 208 V; 5.0 A @ 230 V; 2.5 A @ 460 V |
| Frame, Frame Type, IEC Frame | 143T |
| Gross Weight | 0 lbs |
| Hertz, Hz | 60 |
| Horsepower, Horsepower Rating | 2 HP |
| HP, Number of Poles | 2 |
| Insulation Class | H |
| Inverter Duty | Yes |
| Item Number, Manufacturer Part Number | EM3155T-BG |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35E2261Q054G1 |
| Maximum Ambient Temperature | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Footed |
| Net Weight | 43 lbs |
| Nominal Voltage | 240 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 480 VAC |
| Number of Speeds | 1 |
| Overall Length | 11.62", 11.62 " |
| Phase | 3, 3 Phase |
| Product Type | Motors w/Aegis Shaft Grounding Ring, Three Phase |
| Rotation | Reversible |
| RPM | 3450 RPM, 3450, 3400 - 3600, 3,450 RPM |
| Series | HV3 Super-E Series |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875" |
| Ship Weight | 43 lbs. |
| Special Features | Inverter Ready |
| Speed (RPM) | 3600 |
| Supply Voltage | 230/460 VAC |
| UPC Code | 781568722381 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage, Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | emotorpro.com | EM3155T-BG | 828.11 | 828.11 | 1 | In Stock | Baldor | 43.0 | 828.11 @ Qty: 1+ | |
| us.rs-online.com | 71934130 | 834.49 | 834.49 | 1 | 1 | Baldor-Reliance | 834.49 @ Qty: 1+ | |||
| factorysupplyoutlet.com | VJ79BJ | 907.14 | 907.14 | 1 | In Stock | Baldor-Reliance | 907.14 @ Qty: 1+ | |||
 | Walker Industrial | EM3155T-BG | 916.31 | 916.31 | 1 | In Stock | 17 | Baldor | 916.31 @ Qty: 1+ | |
 | Galco | EM3155T-BG-BLDR | 916.31 | 916.31 | 1 | In Stock | Baldor | 43.0 | 916.31 @ Qty: 1+ | |
| motorsandcontrol.com | EM3155T-BG | 954.48 | 954.48 | 1 | In Stock | Baldor Reliance | 43.0 | 954.48 @ Qty: 1+ | ||
 | Raptor Supplies | AJ6TUX | 1556.423856 | 1556.423856 | 1 | In Stock | BALDOR MOTOR | 1556.423856 @ Qty: 1+ |
