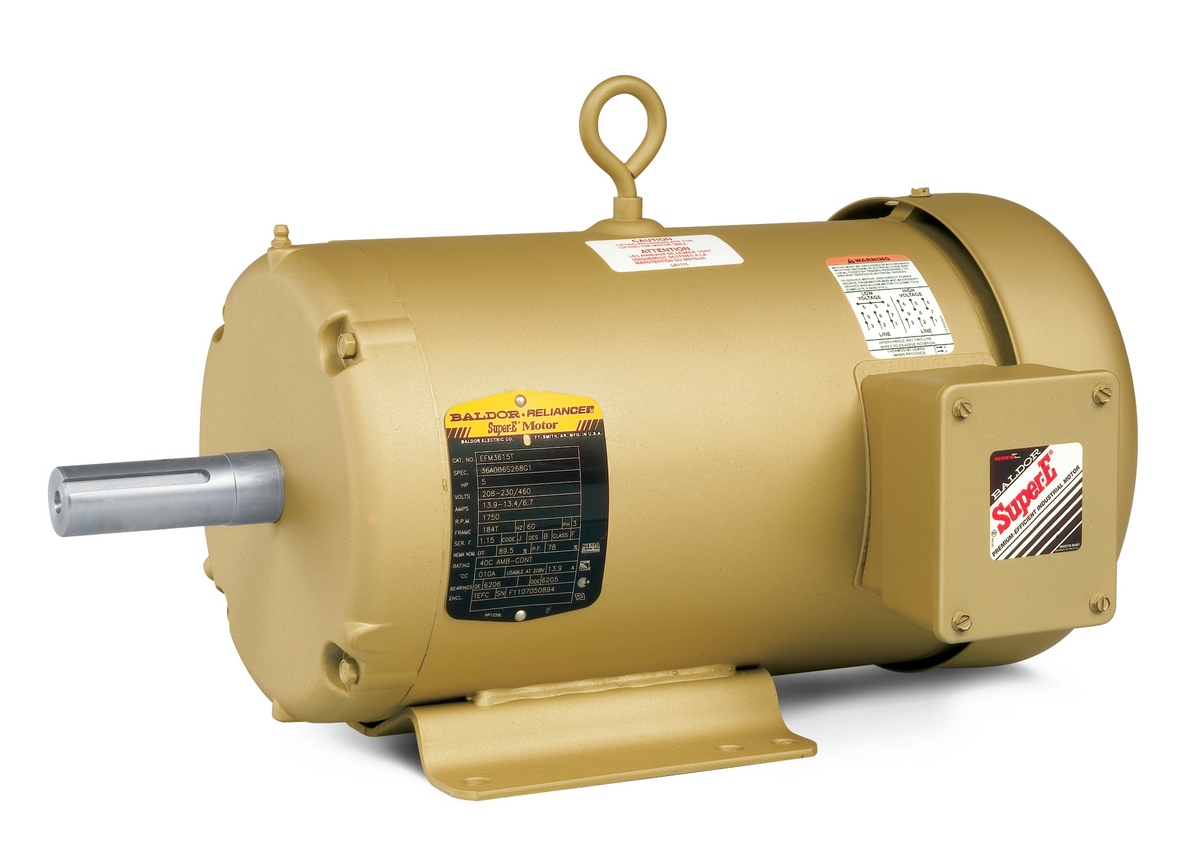

Product Type: Three PhaseHP: 1-1/2RPM: 1760Volts: 230/460Amps: 4.4/4.5/2.2Hz: 60Phase: 3Frame: 90SEnclosure Type: TEFC (Totally Enclosed Fan Cooled)Enclosure Material: SteelMounting: RigidShaft Diameter: 0.945"Overall Length: 13"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Bearings: BallEfficiency: 86.5%M
Attributes
| Key ^ | Value |
|---|---|
| Amps | 4.4/4.5/2.2 |
| Bearings | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 90S |
| HP | 1-1/2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Manufacturer Model # | 35Q920M493G1 |
| Maximum Ambient Temperature | 40? C |
| Mounting | Rigid |
| Number of Speeds | 1 |
| Overall Length | 13" |
| Phase | 3 |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 1760 |
| Service Factor | 1.15 |
| Shaft Diameter | 0.945" |
| Ship Weight | 44 lbs. |
| Volts | 230/460 |
