Baldor Electric L1318TM
Baldor Electriczoom

Baldor Electric L1318TM

mpn:
L1318TM
brand:
Baldor
manufacturer:
Baldor
MPN:
L1318TM
Description:
L1318TM 1HP 1725RPM 1PH 60HZ 143T 3528L OPEN F1
Weight:
42.0
Weight:
2.6875 LB
Preferred Price:
1052.23
Price:
1052.23
Min Simple Price:
594.82
Absolute Min Price:
844.04
Min Price:
844.04
Dimensions:
[13.0, 1.0, 1.0]
qty:
21
simpleSku:
Mzg5Nw:::L1318TM
sku:
Mzg5Nw::HC:L1318TM@y0
condition:
11
seller:
galesburgelectric.com
amzMan:
baldor electric
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amps, FL Amps12.4/6.2
Application, Product TypeGeneral Purpose
Bearing Type, Bearings, Motor BearingsBall
Composition, Enclosure Material, Motor Frame MaterialSteel
ConstructionRolled Steel
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency67.0%
Efficiency %67 %
EnclosureDrip Proof
Enclosure, Enclosure TypeOPEN
Estimated Weight42.00
Family NameSingle Phase Open Family
Family SeriesBaldor Motors, L Series
FL Efficiency67
Frame, Frame Type, NEMA Frame143T
Gross Weight, Net Weight41 lbs
Hertz, Hz60
Horsepower, Horsepower Rating1 hp
HP, Motor Service Factor, No. of Speeds, Number of Speeds, Phase1
Insulation ClassF
Inverter DutyNo
ItemGeneral Purpose Motor
Item Number, Manufacturer Part Number, Part NumberL1318TM
Length Less Shaft9 7/8 in
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #35DD001-0602
Manufacturers Warranty Length1 yr
Maximum Ambient Temperature40? C
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeRigid Base
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal Protection, Overload Protection, Thermal ProtectionManual
MountingFoot Mount, Rigid
Mounting TypeFooted, Foot Mount, Rigid
Nameplate RPM, RPM, Speed (RPM)1725
Nominal Voltage120 VAC, 208 VAC, 240 VAC
Overall Length12 1/8 in, 12.12", 12.12 "
Phase1 Phase
Product SeriesL
RotationReversible
RPM1725 RPM, 1,800 RPM, 1700 - 1800
RPM Range1,701-1,800
SeriesGO1 Series
Service Factor1.00
Shaft Dia.7/8 in
Shaft Diameter0.875"
Shaft Length2 1/4 in
Ship Weight42 lbs.
Special FeaturesManual Thermal Overload
StandardsCSA, UR
Supply Voltage115/230 VAC
UPC Code781568101322
Voltage115/230V AC, 115-230, 110-120V, 230V
Voltage (AC)115 VAC, 230 VAC
Voltage Compatibility115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Volts115/230

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomgalesburgelectric.comL1318TM594.82594.821In StockBaldor594.82 @ Qty: 1+
thumbzoomemotorpro.comL1318TM599.8599.81In StockBaldor42.0599.8 @ Qty: 1+
factorysupplyoutlet.comGB38VF662.02662.021In StockBaldor-Reliance662.02 @ Qty: 1+
thumbzoomGalcoL1318TM-BLDR663.68663.681In StockBaldor41.0663.68 @ Qty: 1+
thumbzoomWalker IndustrialL1318TM663.68663.681In StockBaldor663.68 @ Qty: 1+
thumbzoomGlobal IndustrialWBB389018665.0665.01In StockBaldor-Reliance665.0 @ Qty: 1+
thumbzoomZoroG8239183685.99685.991In StockBaldor-Reliance685.99 @ Qty: 1+
motorsandcontrol.comL1318TM691.33691.331In StockBaldor Reliance42.0691.33 @ Qty: 1+
us.rs-online.com71934353754.16754.161In StockBaldor-Reliance754.16 @ Qty: 1+
thumbzoomapexindustrialautomation.comL1318TM765.78765.7811Baldor-Reliance765.78 @ Qty: 1+
thumbzoompumpproducts.comL1318TM773.67773.671In StockBaldor773.67 @ Qty: 1+
cbtcompany.comL1318TM786.46786.461In StockBaldor Reliance786.46 @ Qty: 1+
motionindustries.com00535550941.73941.731In StockBaldor-Reliance941.73 @ Qty: 1+
thumbzoomsustainablesupply.comC1490061963.24963.241In StockBaldor Electric43.0963.24 @ Qty: 1+
thumbzoomRaptor SuppliesAJ6WWV1187.86595851187.86595851In StockBALDOR MOTOR1187.8659585 @ Qty: 1+
B08VDSNHHC
Baldor Electric L1318TM

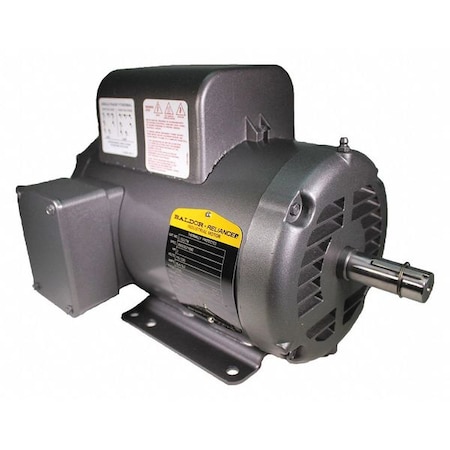

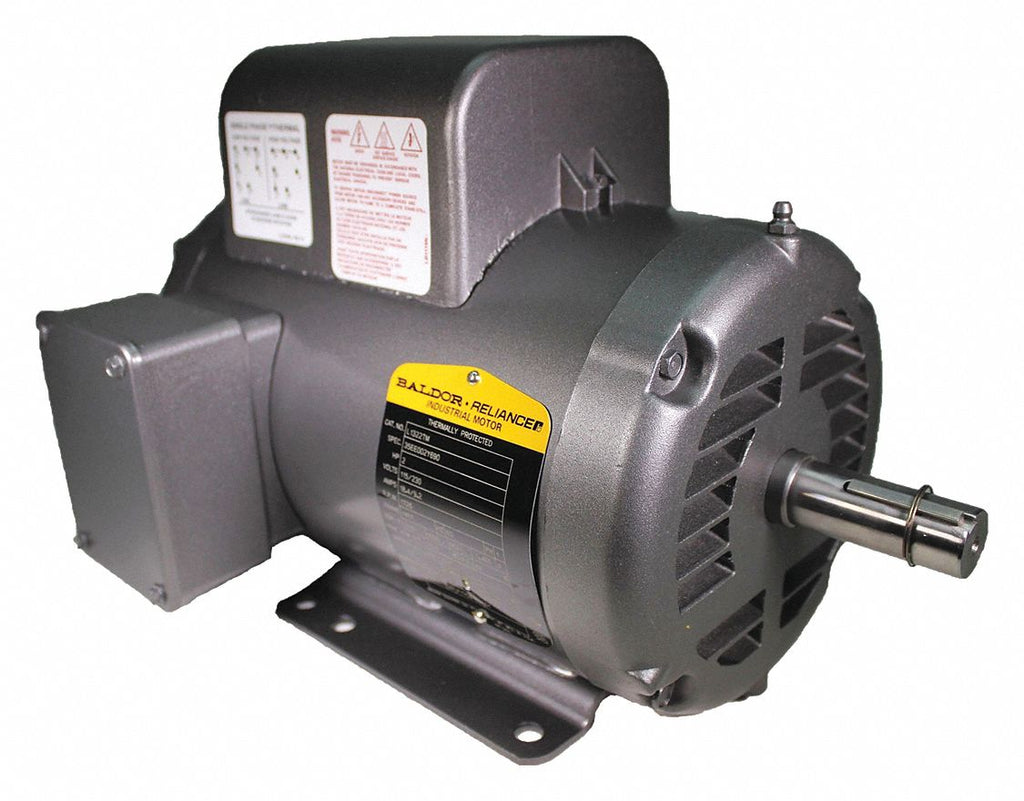

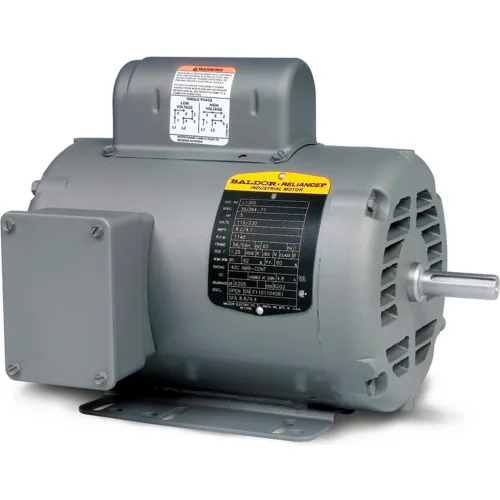

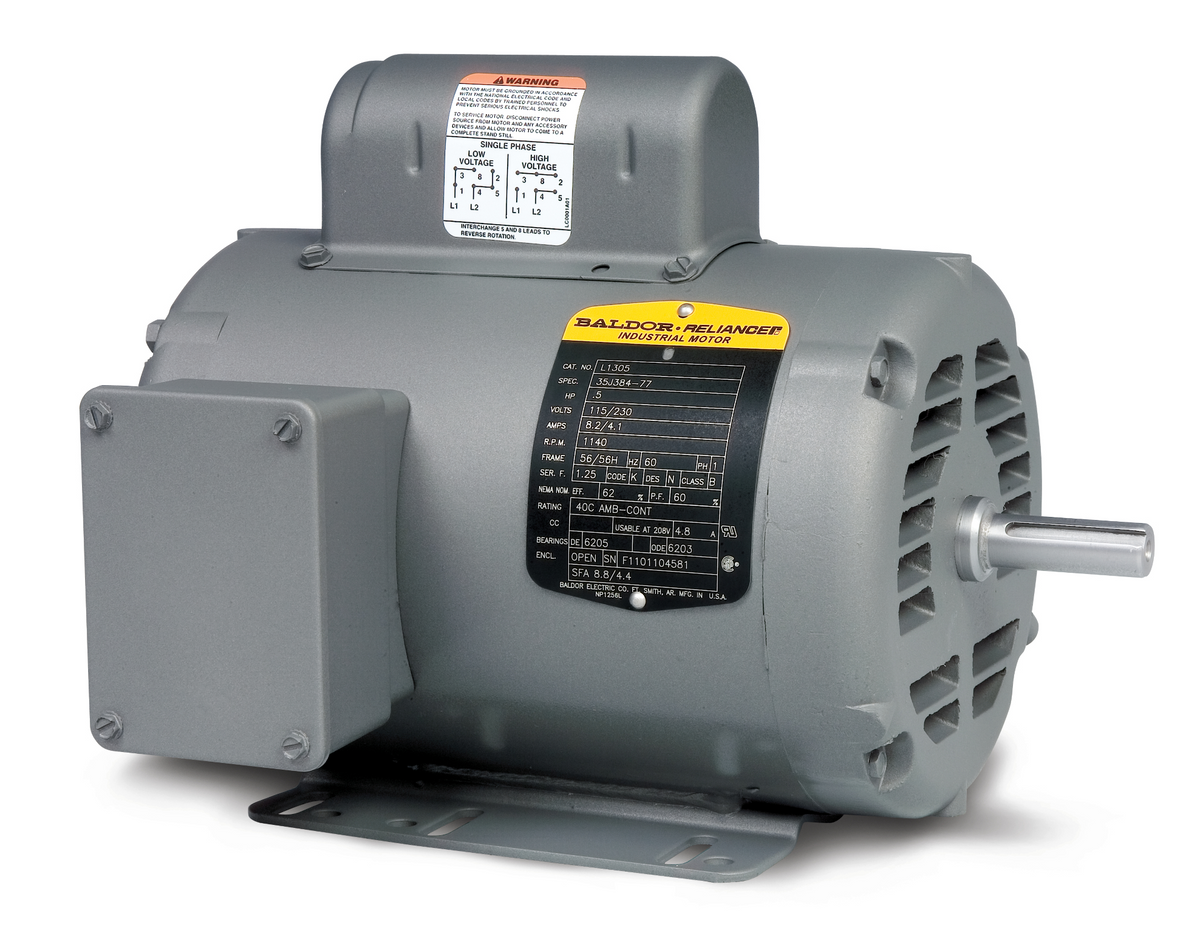

Baldor Electric 1 HP General Purpose Motor, Capacitor-Start, 1725 Nameplate RPM, Voltage 115/230, Frame 143T - L1318TM

Baldor Electric 1 HP General Purpose Motor, Capacitor-Start, 1725 Nameplate RPM, Voltage 115/230, Frame 143T - L1318TMzoom
